LC5512 Series

Manufacturer: Lattice Semiconductor Corporation

Catalog

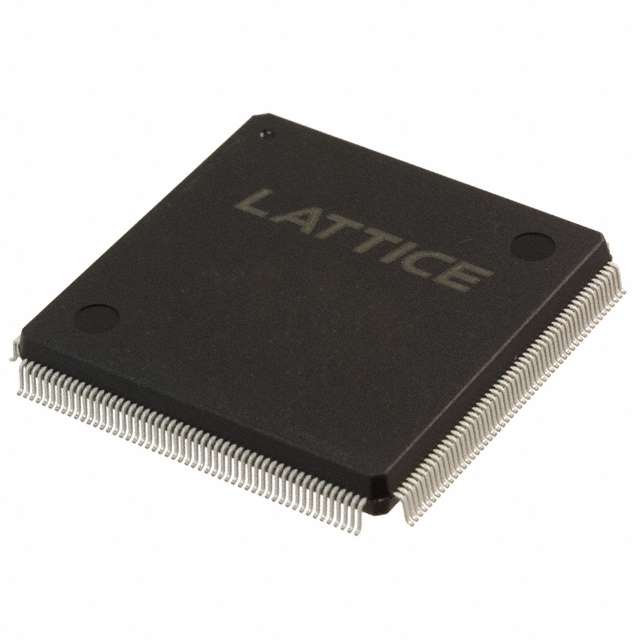

IC CPLD 512MC 7.5NS 208QFP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Logic Elements/Blocks	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Package / Case	Number of I/O	Supplier Device Package	Number of Macrocells	Delay Time tpd(1) Max [Max]	Programmable Type	Mounting Type
Lattice Semiconductor Corporation LC5512MV-75Q208C	90 °C	0 °C	16	3 V	3.6 V	208-BFQFP	149	208-PQFP (28x28)	512	7.5 ns	In System Programmable	Surface Mount
Lattice Semiconductor Corporation LC5512MV-75FN256C	90 °C	0 °C	16	3 V	3.6 V	256-BGA	193	256-FPBGA (17x17)	512	7.5 ns	In System Programmable	Surface Mount
Lattice Semiconductor Corporation LC5512MV-75FN484C	90 °C	0 °C	16	3 V	3.6 V	484-BBGA	253	484-FPBGA (23x23)	512	7.5 ns	In System Programmable	Surface Mount
Lattice Semiconductor Corporation LC5512MB-75FN256I	105 C	-40 C	16	2.3 V	2.7 V	256-BGA	193	256-FPBGA (17x17)	512	7.5 ns	In System Programmable	Surface Mount
Lattice Semiconductor Corporation LC5512MB-75FN256C	90 °C	0 °C	16	2.3 V	2.7 V	256-BGA	193	256-FPBGA (17x17)	512	7.5 ns	In System Programmable	Surface Mount
Lattice Semiconductor Corporation LC5512MC-75FN256C	90 °C	0 °C	16	1.65 V	1.95 V	256-BGA	193	256-FPBGA (17x17)	512	7.5 ns	In System Programmable	Surface Mount
Lattice Semiconductor Corporation LC5512MV-75QN208I	105 C	-40 C	16	3 V	3.6 V	208-BFQFP	149	208-PQFP (28x28)	512	7.5 ns	In System Programmable	Surface Mount
Lattice Semiconductor Corporation LC5512MV-75F256I	105 C	-40 C	16	3 V	3.6 V	256-BGA	193	256-FPBGA (17x17)	512	7.5 ns	In System Programmable	Surface Mount
Lattice Semiconductor Corporation LC5512MV-75Q208I	105 C	-40 C	16	3 V	3.6 V	208-BFQFP	149	208-PQFP (28x28)	512	7.5 ns	In System Programmable	Surface Mount
Lattice Semiconductor Corporation LC5512MB-75F256C	90 °C	0 °C	16	2.3 V	2.7 V	256-BGA	193	256-FPBGA (17x17)	512	7.5 ns	In System Programmable	Surface Mount
