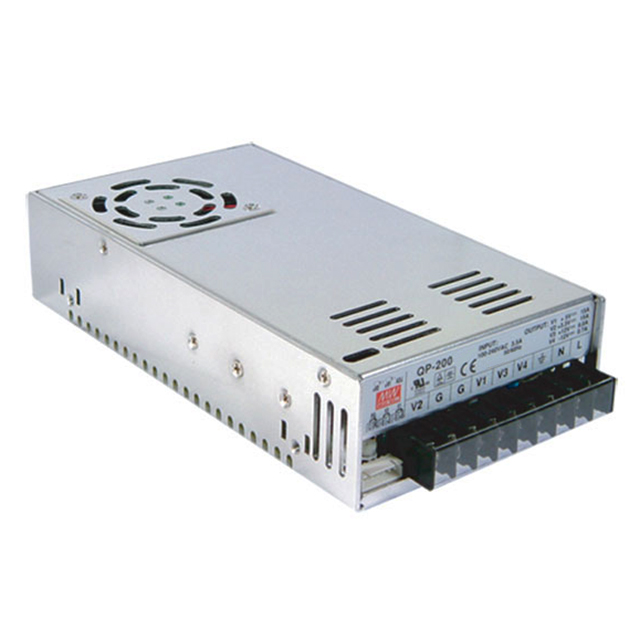

QP-200 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CNVRT 5V 12V 24V -12V 203W
| Part | Minimum Load Required | Current - Output 1 | Power (Watts) | Voltage - Output 2 | Features | Type | Applications | Current - Output 3 | Voltage - Output 3 | Current - Output 4 | Voltage - Isolation | Current - Output 2 | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 4 | Mounting Type | Approval Agency | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 15 A | 203 W | 12 V | Adjustable Output PFC Remote Sense Universal Input | Enclosed | ITE (Commercial) | 3 A | 24 V | 700 mA | 3000 V | 4 A | 75 % | 264 VAC 370 VDC | 90 VAC 127 VDC | 5 V | -10 °C | 60 °C | -12 V | Chassis Mount | CB CE cURus TUV | 215 mm | 8.46 in | 50 mm | 4.53 in | 115 mm | 1.97 " | 4 |
