MEAS U5600 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

INDUSTRIAL PRESSURE SENSORS U5600-00000E-020BA

Part	Operating Pressure	Operating Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Maximum Pressure	Maximum Pressure [Max]	Accuracy	Features	Port Style	Output Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Port Size	Port Size	Applications	Output	Maximum Pressure [Max]	Port Size	Maximum Pressure	Voltage - Supply
TE Connectivity AMP Connectors U5600-00000E-020BA	290.08 PSI	2000 kPa	2.3 V	3.6 V	6000 kPa	870.23 PSI	0.1 %	Temperature Compensated	Threaded	Bluetooth	Cylinder Threaded	85 °C	-20 ░C	BSPT Male	0.25 in	Industrial Automation	24 b
TE Connectivity AMP Connectors U5600-00000U-010BG

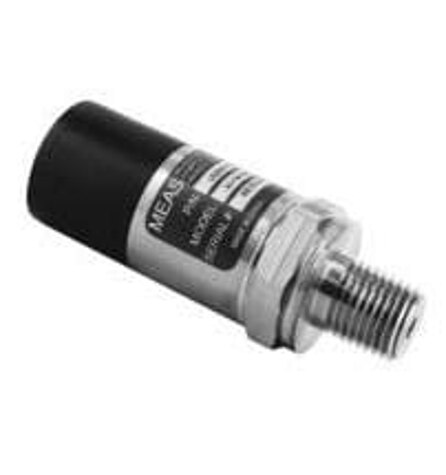

TE Connectivity AMP Connectors U5600-00000E-007BA	101.53 PSI	700 kPa	2.3 V	3.6 V		304.58 PSI	0.1 %	Temperature Compensated	Threaded	Bluetooth	Cylinder Threaded	85 °C	-20 ░C	BSPT Male	0.25 in	Industrial Automation	24 b	2100 kPa
TE Connectivity AMP Connectors U5600-000005-100PA	100 PSI	689.48 kPa	2.3 V	3.6 V		300 PSI	0.1 %	Temperature Compensated	Threaded	Bluetooth	Cylinder Threaded	85 °C	-20 ░C	Male NPT	0.25 in	Industrial Automation	24 b	2068.43 kPa	0.25 "
TE Connectivity AMP Connectors U5600-000005-300PA	300 PSI	2068.43 kPa	2.3 V	3.6 V	6205.28 kPa		0.1 %	Temperature Compensated	Threaded	Bluetooth	Cylinder Threaded	85 °C	-20 ░C	Male NPT	0.25 in	Industrial Automation	24 b		0.25 "	900 PSI
TE Connectivity AMP Connectors U5600-010006-015PC
TE Connectivity AMP Connectors U5600-000005-015PA	15 PSI	103.42 kPa			310.26 kPa		0.1 %		Threaded	Bluetooth		60 °C	-20 ░C	Male NPT	0.25 in				0.25 "	45 PSI	2.7 V
TE Connectivity AMP Connectors U5600-000005-030PA	30 PSI	206.84 kPa	2.3 V	3.6 V	620.53 kPa	90 PSI	0.1 %	Temperature Compensated	Threaded	Bluetooth	Cylinder Threaded	85 °C	-20 ░C	Male NPT	0.25 in	Industrial Automation	24 b		0.25 "
