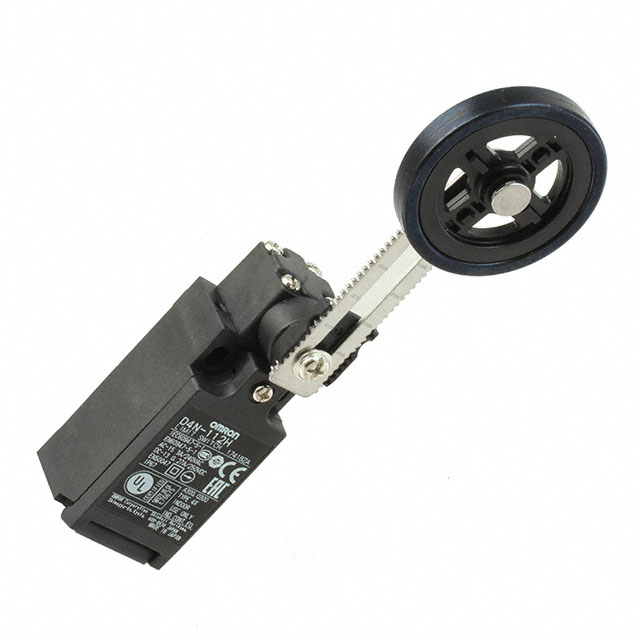

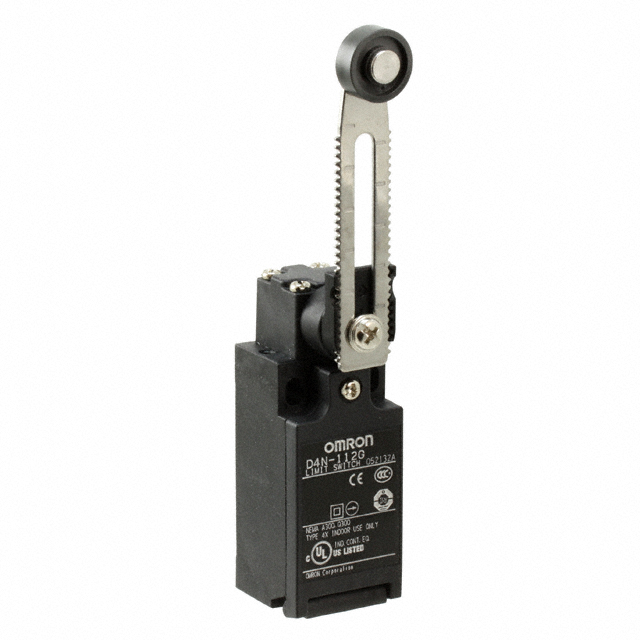

D4N-112 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION DPST 3A 240V
| Part | Pretravel | Voltage Rating - DC | Mechanical Life | Voltage Rating - AC | Mounting Type | Overtravel | Actuator Type | Termination Style | Release Force | Switch Function | Current Rating (Amps) | Electrical Life | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Differential Travel | Ingress Protection | Circuit | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 18 ° | 250 V | 15000000 Cycles | 240 V | Chassis Mount | 40 ° | Side Rotary Adjustable Roller | Screw Terminal | 41 gf | Off-Mom On-Mom | 3 A 270 mA | 300000 Cycles | 459 gf | 70 °C | -30 ░C | 14 ° | IP67 - Dust Tight Waterproof | DPST-NO/NC | Metal Lever Rubber Roller |
 Omron Electronics Inc-EMC Div | 18 ° | 250 V | 15000000 Cycles | 240 V | Chassis Mount | 40 ° | Side Rotary Adjustable Roller | Screw Terminal | 41 gf | Off-Mom On-Mom | 3 A 270 mA | 300000 Cycles | 459 gf | 70 °C | -30 ░C | 14 ° | IP67 - Dust Tight Waterproof | DPST-NO/NC | Metal Lever Resin Roller |
