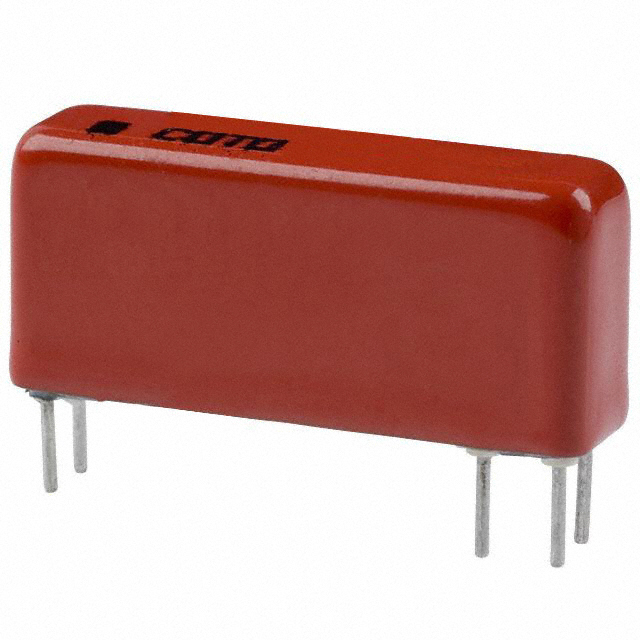

2341 Series

Catalog

RELAY REED SPDT 500MA 12V

Part	Coil Resistance	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Seal Rating	Contact Rating (Current)	Operate Time	Coil Type	Must Release Voltage	Coil Voltage	Release Time	Coil Current	Termination Style	Switching Voltage AC (Max)	Switching Voltage DC (Max)	Must Operate Voltage	Contact Form	Features
COTO TECHNOLOGY 2341-12-010	1 kOhms	Through Hole	85 °C	-20 °C	Hermetically Sealed	500 mA	0.5 ms	Non Latching	1 VDC	12 VAC	0.5 ms	12 mA	PC Pin	200 VAC	200 VDC	9 VDC	1 C Form SPDT
COTO TECHNOLOGY 2341-05-010	230 Ohms	Through Hole	85 °C	-20 °C	Hermetically Sealed	500 mA	0.5 ms	Non Latching	0.4 VDC	5 V	0.5 ms	21.7 mA	PC Pin	200 VAC	200 VDC	3.8 VDC	1 C Form SPDT
COTO TECHNOLOGY 2341-12-000	1 kOhms	Through Hole	85 °C	-20 °C	Hermetically Sealed	500 mA	0.5 ms	Non Latching	1 VDC	12 VAC	0.5 ms	12 mA	PC Pin	200 VAC	200 VDC	9 VDC	1 C Form SPDT
COTO TECHNOLOGY 2341-05-000	230 Ohms	Through Hole	85 °C	-20 °C	Hermetically Sealed	500 mA	0.5 ms	Non Latching	0.4 VDC	5 V	0.5 ms	21.7 mA	PC Pin	200 VAC	200 VDC	3.8 VDC	1 C Form SPDT
COTO TECHNOLOGY 2341-05-020	230 Ohms	Through Hole	85 °C	-20 °C		500 mA	0.5 ms	Non Latching	0.4 VDC	5 V	0.5 ms	21.7 mA	PC Pin	200 VAC	200 VDC	3.8 VDC	1 C Form SPDT	Hermetically Sealed
COTO TECHNOLOGY 2341-12-020	1 kOhms	Through Hole	85 °C	-20 °C		500 mA	0.5 ms	Non Latching	1 VDC	12 VAC	0.5 ms	12 mA	PC Pin	200 VAC	200 VDC	9 VDC	1 C Form SPDT	Hermetically Sealed
