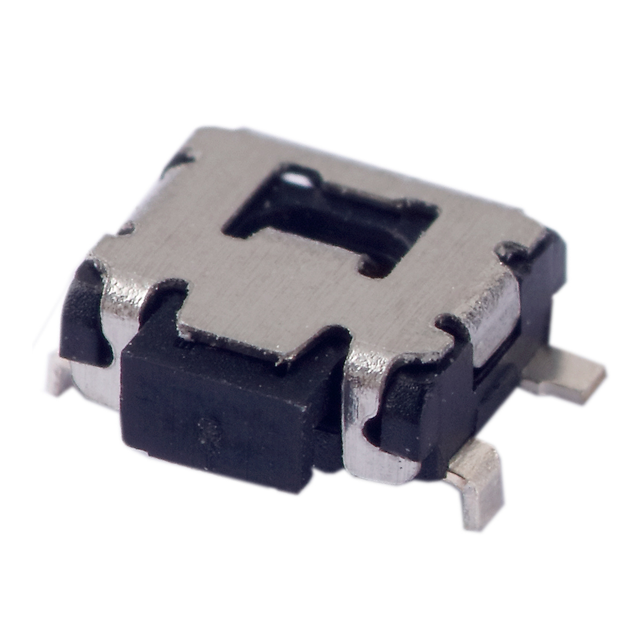

226EM2 Series
Manufacturer: CTS Electrocomponents
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Mechanical Life | Operating Force | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Contact Rating @ Voltage | Actuator Length, Right Angle | Outline [y] | Outline [x] | Illumination | Actuator Orientation | Mounting Type | Switch Function | Features | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CTS Electrocomponents | 0.2 mm | 100000 Cycles | 160 gf | Gull Wing | 85 °C | -40 C | SPST-NO | 0.05 A 12 VDC | 3.55 mm | 2.9 mm | 4.7 mm | Non-Illuminated | Side Actuated | Right Angle Surface Mount | Off-Mom | Tactile Feedback | Rectangular Button |
