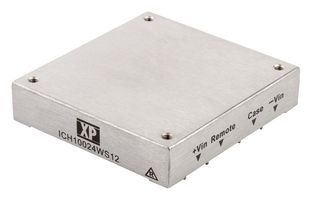

ICH10024 Series

Manufacturer: XP Power

Catalog

DC DC CONVERTER 24V 100W

Part	Current - Output (Max) [Max]	Mounting Type	Number of Outputs	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Power (Watts)	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Applications	Control Features	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Features	Efficiency	Type	Supplier Device Package
XP Power ICH10024WS24	4.17 A	Through Hole	1	1.5 kV	9 V	36 V	100 W	24 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	ITE (Commercial)	Active High Enable	-40 C	100 °C	9-DIP Module	OVP Remote On/Off SCP	86 %	Isolated Module
XP Power ICH10024S12N	8.3 A	Through Hole	1	1.5 kV	18 V	36 V	100 W	12 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	ITE (Commercial)	Active Low Enable	-40 °C	100 °C	Half Brick	OTP OVP Remote On/Off SCP UVLO	85 %	Isolated Module	Half Brick
XP Power ICH10024S05	20 A	Through Hole	1	1.5 kV	18 V	36 V	100 W	5 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	ITE (Commercial)	Active High Enable	-40 C	100 °C	9-DIP Module	OVP Remote On/Off SCP	83 %	Isolated Module
XP Power ICH10024S15	6.7 A	Through Hole	1	1.5 kV	18 V	36 V	100 W	15 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	ITE (Commercial)	Active High Enable	-40 C	100 °C	9-DIP Module	OVP Remote On/Off SCP	85 %	Isolated Module
XP Power ICH10024WS05N	20 A	Through Hole	1	1.5 kV	9 V	36 V	100 W	5 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	ITE (Commercial)	Active Low Enable	-40 °C	100 °C	Half Brick	OTP OVP Remote On/Off SCP UVLO	83 %	Isolated Module	Half Brick
XP Power ICH10024WS24N	4.17 A	Through Hole	1	1.5 kV	9 V	36 V	100 W	24 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	ITE (Commercial)	Active Low Enable	-40 °C	100 °C	Half Brick	OTP OVP Remote On/Off SCP UVLO	86 %	Isolated Module	Half Brick
XP Power ICH10024S12	8.3 A	Through Hole	1	1.5 kV	18 V	36 V	100 W	12 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	ITE (Commercial)	Active High Enable	-40 C	100 °C	9-DIP Module	OVP Remote On/Off SCP	85 %	Isolated Module
XP Power ICH10024S15N	6.7 A	Through Hole	1	1.5 kV	18 V	36 V	101 W	15 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	ITE (Commercial)	Active Low Enable	-40 °C	100 °C	Half Brick	OTP OVP Remote On/Off SCP UVLO	85 %	Isolated Module	Half Brick
