174-015 Series

Catalog

CONN D-SUB RCPT 15POS R/A SLDR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Color	Dielectric Material	Contact Material	Number of Rows [custom]	Number of Positions	Mounting Type	Termination	Backset Spacing	Backset Spacing	Shell Size, Connector Layout	Contact Finish Thickness	Features	Contact Finish	Contact Type	Connector Style	Connector Type	Current Rating (Amps)	Flange Feature	Material Flammability Rating	Shell Material, Finish [custom]	Shell Material, Finish [custom]

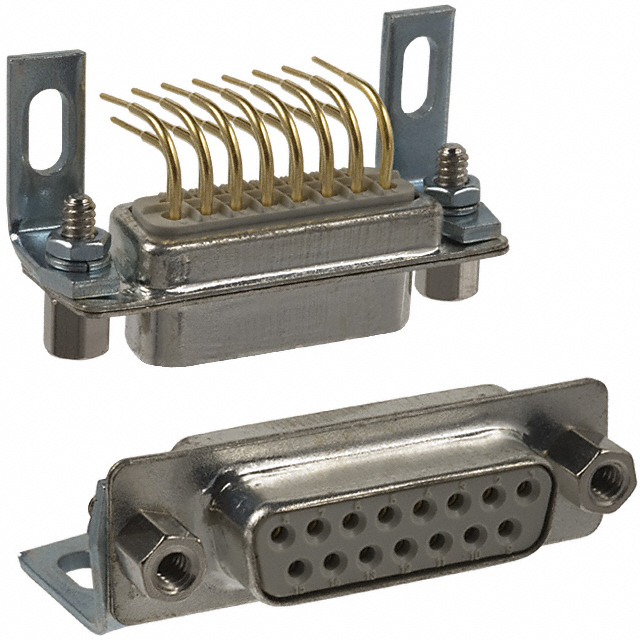

NorComp Inc. 174-015-212R141	100 °C	-50 °C	Beige	Polybutylene Terephthalate (PBT) Polyester	Brass	2	15	Panel Mount Right Angle Through Hole	Solder	9.4 mm	0.37 in	2	Flash	Mounting Brackets	Gold	Signal	D-Sub	Receptacle Female Sockets	5 A	4-40 Mating Side Female Screwlock	UL94 V-0

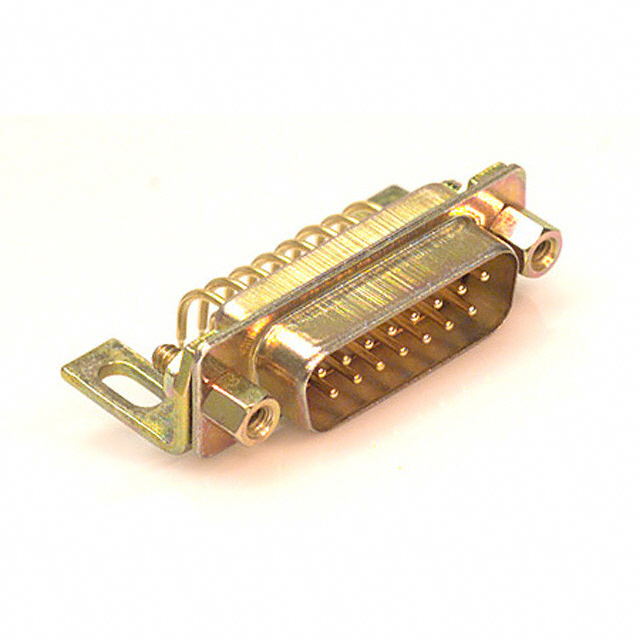

NorComp Inc. 174-015-111-141	100 °C	-50 °C	Beige	Polybutylene Terephthalate (PBT)		2	15	Panel Mount Right Angle Through Hole	Solder	9.4 mm	0.37 in	2	Flash	Mounting Brackets	Gold	Signal	D-Sub	Plug Male Pins	5 A	4-40 Mating Side Female Screwlock	UL94 V-0	Steel	Yellow Chromate Plated
NorComp Inc. 174-015-212-141	100 °C	-50 °C	Beige	Polybutylene Terephthalate (PBT)		2	15	Panel Mount Right Angle Through Hole	Solder	9.4 mm	0.37 in	2	Flash	Mounting Brackets	Gold	Signal	D-Sub	Receptacle Female Sockets	5 A	4-40 Mating Side Female Screwlock	UL94 V-0

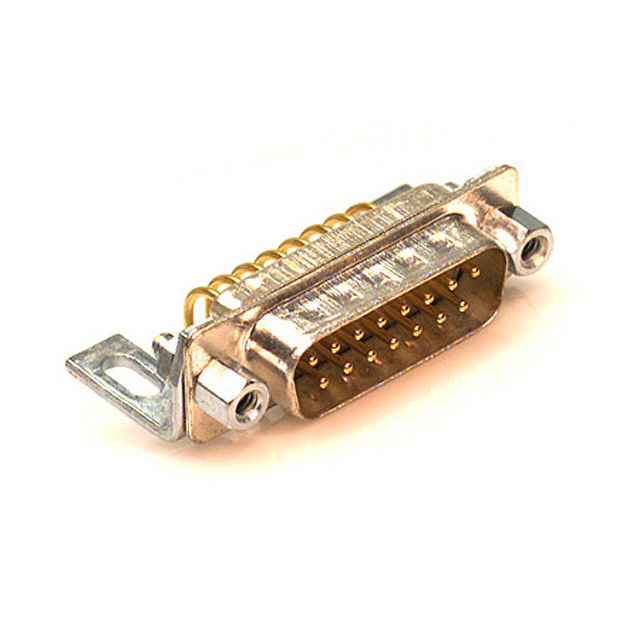

NorComp Inc. 174-015-112-141	100 °C	-50 °C	Beige	Polybutylene Terephthalate (PBT)		2	15	Panel Mount Right Angle Through Hole	Solder	9.4 mm	0.37 in	2	Flash	Grounding Indents Mounting Brackets	Gold	Signal	D-Sub	Plug Male Pins	5 A	4-40 Mating Side Female Screwlock	UL94 V-0
NorComp Inc. 174-015-112R141	100 °C	-50 °C	Beige	Polybutylene Terephthalate (PBT) Polyester	Brass	2	15	Panel Mount Right Angle Through Hole	Solder	9.4 mm	0.37 in	2	Flash	Grounding Indents Mounting Brackets	Gold	Signal	D-Sub	Plug Male Pins	5 A	4-40 Mating Side Female Screwlock	UL94 V-0
