SFH 309 Series

Catalog

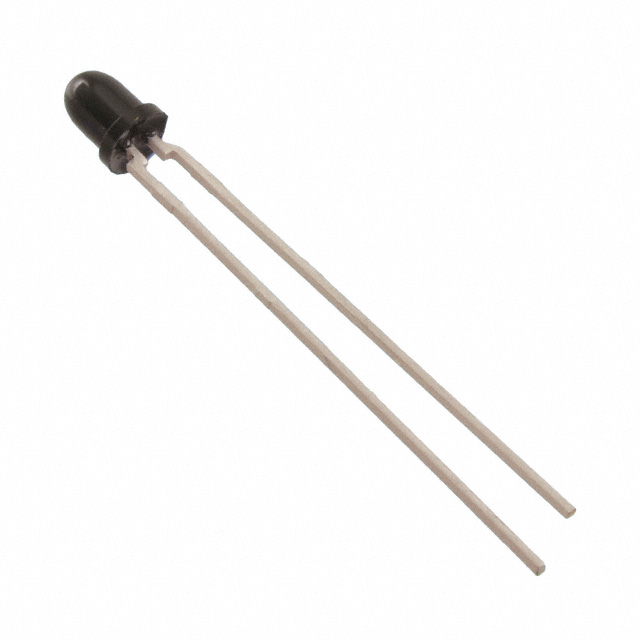

SENSOR PHOTO 900NM TOP VIEW RAD

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Viewing Angle	Power - Max [Max]	Current - Dark (Id) (Max) [Max]	Wavelength	Orientation	Package / Case	Current - Collector (Ic) (Max) [Max]	Mounting Type
ams-OSRAM USA INC. SFH 309 FA-5/6	35 V	-40 C	100 °C	24 °	165 mW	200 nA	900 nm	Top View	Radial T-1 Lens	15 mA	Through Hole
ams-OSRAM USA INC. SFH 309 FA-5	35 V	-40 C	100 °C	24 °	165 mW	200 nA	900 nm	Top View	Radial T-1 Lens	15 mA	Through Hole
