SOLID STATE RELAY
Description
AI

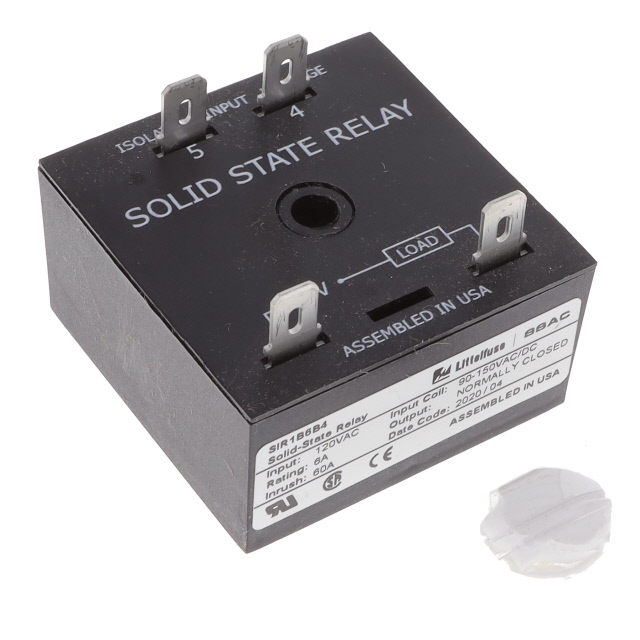

The SIR1B6B4 relay provides solid-state switching protection with input voltage from 90 to 150 V ac/dc and output voltage at 120 V ac.
Beta
⌘K
SOLID STATE RELAY
SOLID STATE RELAY
| Part | Load Current | Output Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Package / Case | Voltage - Load [Max] | Voltage - Load [Min] | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 6 A | AC | -20 C | 60 °C | Quick Connect - 0.250" (6.3mm) | Chassis Mount | 90 VAC | 150 VAC/DC | Module | 120 V | 0 V | SPST-NC (1 Form B) |
