PT121 Series

Catalog

FIXED IND 600UH 200MA 4 OHM TH

Part	Frequency - Self Resonant	Q @ Freq	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]	Current Rating (Amps)	Inductance Frequency - Test	Inductance	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Tolerance
Bourns Inc. PT12120SL	1.6 MHz	80 796 kHz	Unshielded	0.5 in	12.7 mm	Wirewound	Radial Vertical Cylinder	80 °C	-20 ░C	4 Ohm	0.2 A	0.796 MHz	600 µH	10.15 mm	0.4 "	Through Hole	10 %

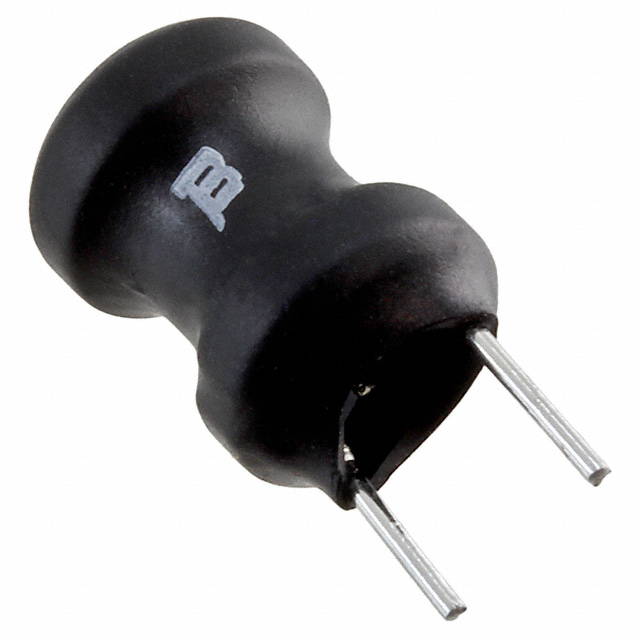

Bourns Inc. PT12133SL	500 kHz	90	Unshielded	0.5 in	12.7 mm	Wirewound	Radial Vertical Cylinder	80 °C	-20 ░C	26 Ohm	50 mA	252 kHz	8.2 mH	10.15 mm	0.4 "	Through Hole	10 %
Bourns Inc. PT12130SL	600 kHz	90	Unshielded	0.5 in	12.7 mm	Wirewound	Radial Vertical Cylinder	80 °C	-20 ░C	18 Ohm	50 mA	252 kHz	4.7 mH	10.15 mm	0.4 "	Through Hole	10 %
Bourns Inc. PT12133J	500 kHz	90	Unshielded	0.5 in	12.7 mm	Wirewound	Radial Vertical Cylinder	80 °C	-20 ░C	26 Ohm	50 mA	252 kHz	8.2 mH	10.15 mm	0.4 "	Through Hole	5 %
