6609117 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Termination	Termination	Termination	Current Rating - Filter	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Style	Mounting Type	Approval Agency	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Fuse Holder, Drawer	Connector Type	Filter Type	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]

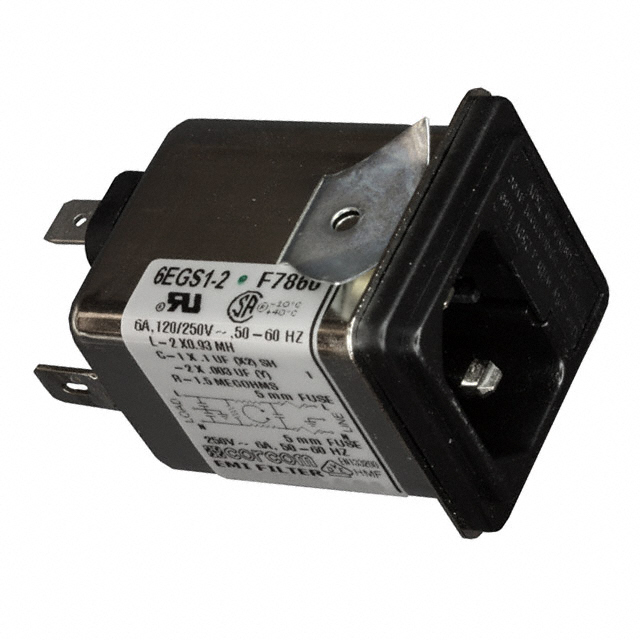

TE Connectivity Corcom Filters 6609117-6	6.3 mm	Quick Connect	0.25 "	6 A	31.5 mm	32.77 mm	IEC 320-C14	Panel Mount Snap-In	CSA UL VDE	6 A	120 VAC	250 VAC	Fuse Holder	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial
TE Connectivity Corcom Filters 6609117-1	6.3 mm	Quick Connect	0.25 "	1 A	28.96 mm	33.02 mm	IEC 320-C14	Panel Mount Snap-In	CSA UL VDE	1 A	120 VAC	250 VAC	Fuse Holder	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	0.08 in	0.032 in	2.03 mm	0.81 mm

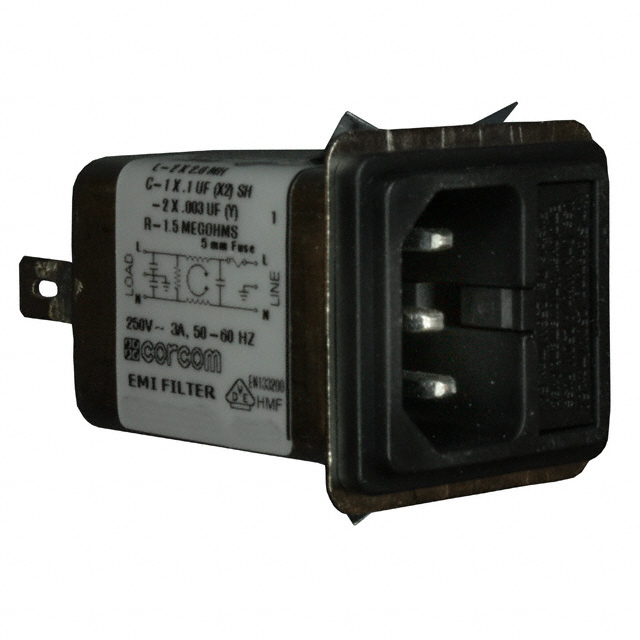

TE Connectivity Corcom Filters 6609117-3	6.3 mm	Quick Connect	0.25 "	3 A	28.96 mm	33.02 mm	IEC 320-C14	Panel Mount Snap-In	CSA UL VDE	3 A	120 VAC	250 VAC	Fuse Holder	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial
