G2RV-ST Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY GEN PURPOSE SPDT 6A 110V

Part	Switching Voltage	Mounting Type	Must Operate Voltage	Termination Style	Relay Type	Approval Agency	Contact Rating (Current)	Contact Material	Load - Max Switching	Features	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Contact Form	Coil Resistance	Release Time	Coil Type	Operate Time	Coil Current	Must Release Voltage

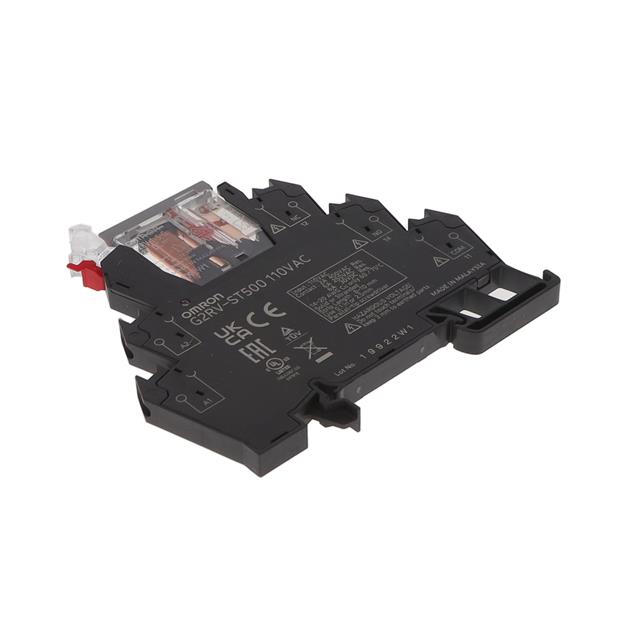

Omron Electronics Inc-EMC Div G2RV-ST500 AC110	125 VDC 440 VAC	DIN Rail	88 VAC/DC	Spring Terminal	General Purpose	CE cULus TUV	6 A	Silver Alloy	750 W 2640 VA	Socket Included	-40 °C	55 °C	110 VAC/DC	SPDT (1 Form C)	17.188 kOhms	20 ms	Non Latching	20 ms	6.4 mA	11 VAC
Omron Electronics Inc-EMC Div G2RV-ST500-AP AC230	30 VAC 36 VDC	DIN Rail	184 VAC	Spring Terminal	General Purpose	CE cULus TUV	50 mA	Gold Alloy Silver Alloy		Socket Included	-40 °C	55 °C	230 VAC	SPDT (1 Form C)	28.049 kOhms		Non Latching	20 ms	8.2 mA	23 VAC
Omron Electronics Inc-EMC Div G2RV-ST700-AP AC100	30 VAC 36 VDC	DIN Rail	80 VAC	Screw Terminal	General Purpose	CE cULus TUV	50 mA	Gold Alloy Silver Alloy		Socket Included	-40 °C	55 °C	100 VAC	SPDT (1 Form C)	14.085 kOhms		Non Latching	20 ms	7.1 mA	10 VAC

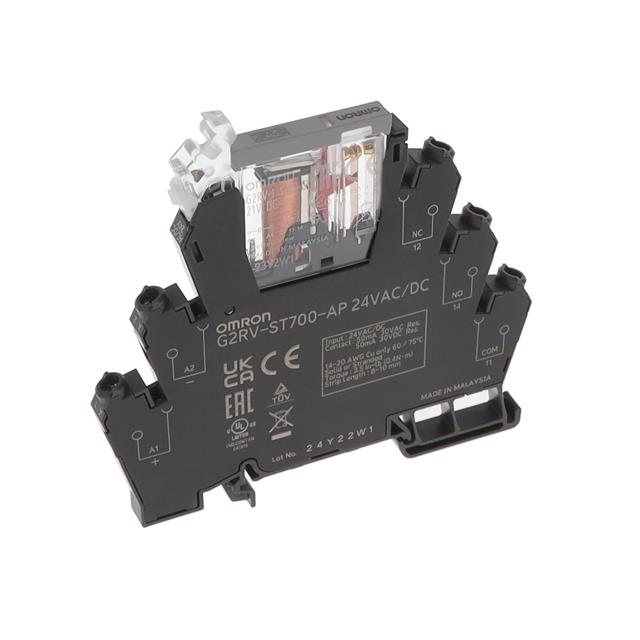

Omron Electronics Inc-EMC Div G2RV-ST700-AP AC/DC24	30 VAC 36 VDC	DIN Rail	19.2 VAC	Screw Terminal	General Purpose	CE cULus TUV	50 mA	Gold Alloy Silver Alloy		Socket Included	-40 °C	55 °C	24 VAC	SPDT (1 Form C)	1.611 kOhms		Non Latching	20 ms	14.9 mA	2.4 VAC/DC

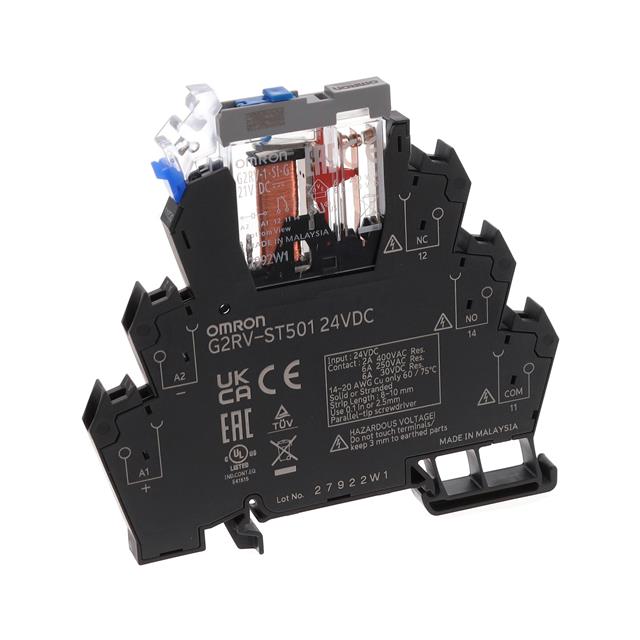

Omron Electronics Inc-EMC Div G2RV-ST501 DC24	125 VDC 440 VAC	DIN Rail	19.2 VDC	Spring Terminal	General Purpose	CE cULus TUV	6 A	Silver Alloy	750 W 2640 VA	Socket Included	-40 °C	55 °C	24 VDC	SPDT (1 Form C)	1.778 kOhms	20 ms	Non Latching	20 ms	13.5 mA	2.4 VDC
Omron Electronics Inc-EMC Div G2RV-ST500 DC12	125 VDC 440 VAC	DIN Rail	9.6 VDC	Spring Terminal	General Purpose	CE cULus TUV	6 A	Silver Alloy	750 W 2640 VA	Socket Included	-40 °C	55 °C	12 VDC	SPDT (1 Form C)	430.108 Ohms	20 ms	Non Latching	20 ms	27.9 mA	1.2 VDC
Omron Electronics Inc-EMC Div G2RV-ST500-AP AC100	30 VAC 36 VDC	DIN Rail	80 VAC	Spring Terminal	General Purpose	CE cULus TUV	50 mA	Gold Alloy Silver Alloy		Socket Included	-40 °C	55 °C	100 VAC	SPDT (1 Form C)	14.085 kOhms		Non Latching	20 ms	7.1 mA	10 VAC

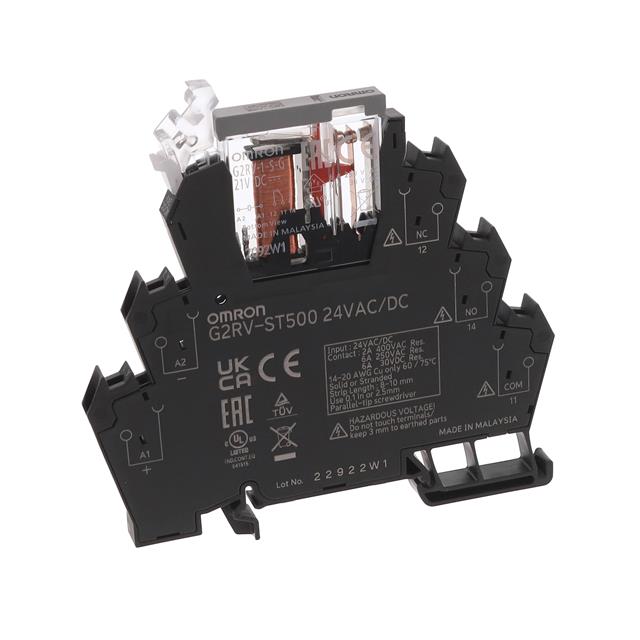

Omron Electronics Inc-EMC Div G2RV-ST500 AC/DC24	125 VDC 440 VAC	DIN Rail	19.2 VAC	Spring Terminal	General Purpose	CE cULus TUV	6 A	Silver Alloy	750 W 2640 VA	Socket Included	-40 °C	55 °C	24 VAC	SPDT (1 Form C)	1.611 kOhms		Non Latching	20 ms	14.9 mA	2.4 VAC/DC

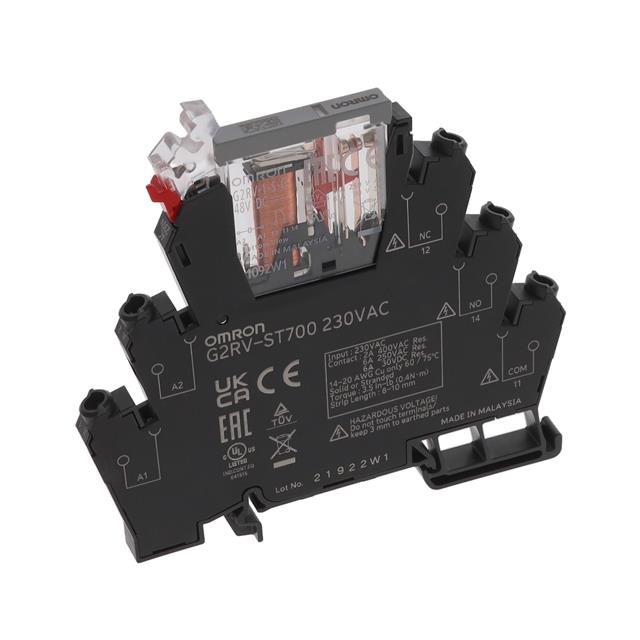

Omron Electronics Inc-EMC Div G2RV-ST700 AC230	125 VDC 440 VAC	DIN Rail	184 VAC	Screw Terminal	General Purpose	CE cULus TUV	6 A	Silver Alloy	750 W 2640 VA	Socket Included	-40 °C	55 °C	230 VAC	SPDT (1 Form C)	28.049 kOhms	20 ms	Non Latching	20 ms	8.2 mA	23 VAC

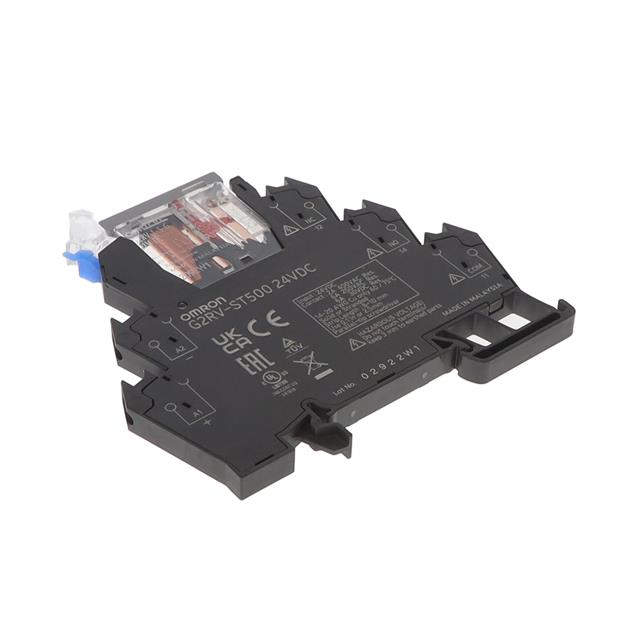

Omron Electronics Inc-EMC Div G2RV-ST500 DC24	125 VDC 440 VAC	DIN Rail	19.2 VDC	Spring Terminal	General Purpose	CE cULus TUV	6 A	Silver Alloy	750 W 2640 VA	Socket Included	-40 °C	55 °C	24 VDC	SPDT (1 Form C)	1.778 kOhms	20 ms	Non Latching	20 ms	13.5 mA	2.4 VDC
