SFSA960 Series

Manufacturer: SWISSBIT

Catalog

SSD, INTERNAL, M.2 2280, SATA 6 GB/S (SATA III), 960 GB, MLC NAND, NON-ENCRYPTED

Part	Speed - Write	Voltage - Supply	Memory Type	Form Factor	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Speed - Read	Current - Max [Max]	Form Factor
SWISSBIT SFSA960GM3AA8TO-I-OC-626-STD	450 MB/s	3.3 V	Solid State Drive (SSD) FLASH - NAND (MLC)	M.2 Module	3.6 mm	80 mm	22 mm	SATA III	85 °C	-40 C	960 GB	520 MB/s	960 mA
SWISSBIT SFSA960GV2AK4TO-I-8C-236-STD	495 MB/s		Solid State Drive (SSD) FLASH - NAND (TLC)	Slim-SATA	4 mm	54 mm	39 mm	SATA III	85 °C	-40 C	960 GB	565 MB/s

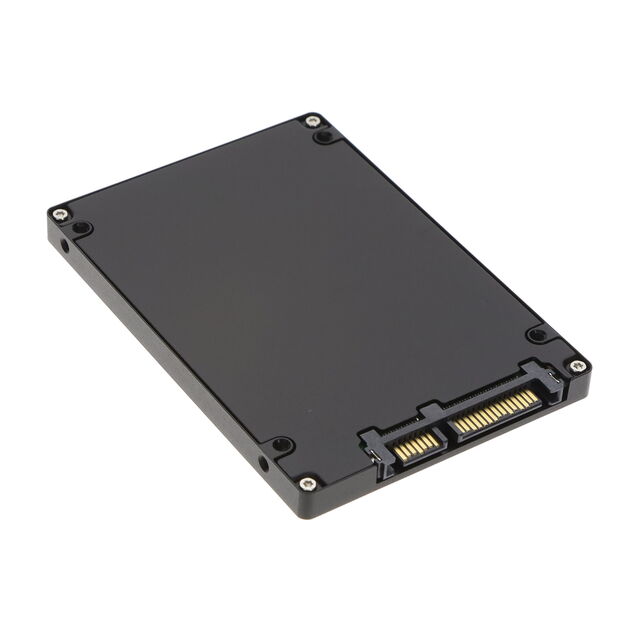

SWISSBIT SFSA960GQ2AK4TO-I-8C-236-STD	495 MB/s		Solid State Drive (SSD) FLASH - NAND (TLC)		7 mm	100 mm	70 mm	SATA III	85 °C	-40 C	960 GB	565 MB/s		2.5 "
SWISSBIT SFSA960GQ2AK4TO-C-8C-226-STD	495 MB/s		Solid State Drive (SSD) FLASH - NAND (TLC)		7 mm	100 mm	70 mm	SATA III	70 °C	0 °C	960 GB	565 MB/s		2.5 "

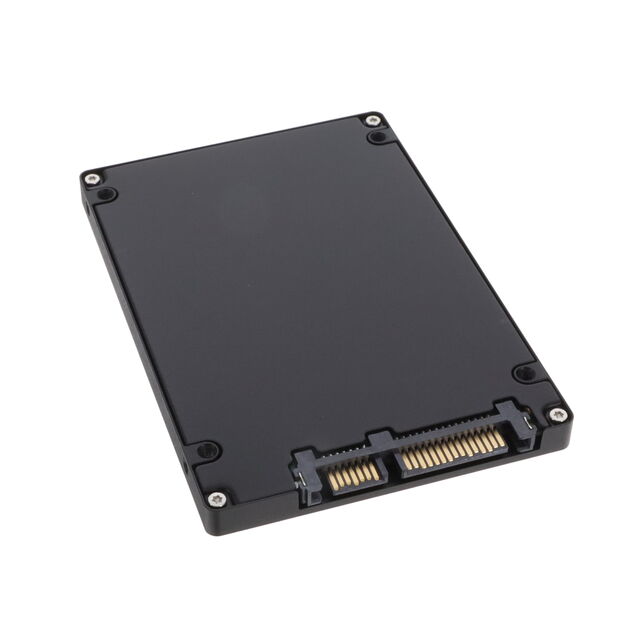

SWISSBIT SFSA960GQ1AA8TO-I-OC-226-STD	460 MB/s	3.3 V 5 VDC	Solid State Drive (SSD) FLASH - NAND (MLC)		7 mm	100 mm	70 mm	SATA III	85 °C	-40 C	960 GB	525 MB/s		2.5 "
SWISSBIT SFSA960GU2AK4TO-I-8C-236-STD	495 MB/s	3.3 V	Solid State Drive (SSD) FLASH - NAND (TLC)	mSATA	3.5 mm	2 in	29.85 mm	SATA III	85 °C	-40 C	960 GB	565 MB/s
SWISSBIT SFSA960GQ1AA8TO-I-OC-216-STD			Solid State Drive (SSD) FLASH - NAND (MLC)		7 mm	100.2 mm	2.75 in	SATA III	85 °C	-40 C	960 GB		800 mA	2.5 "
SWISSBIT SFSA960GU2AK4TO-C-8C-236-STD	495 MB/s	3.3 V	Solid State Drive (SSD) FLASH - NAND (TLC)	mSATA	3.8 mm	2 in	29.85 mm	SATA III	70 °C	0 °C	960 GB	565 MB/s
SWISSBIT SFSA960GQ2AK4TO-C-8C-236-STD	495 MB/s		Solid State Drive (SSD) FLASH - NAND (TLC)		7 mm	100 mm	70 mm	SATA III	70 °C	0 °C	960 GB	565 MB/s		2.5 "
SWISSBIT SFSA960GM3AA8TO-C-OC-626-STD	450 MB/s	3.3 V	Solid State Drive (SSD) FLASH - NAND (MLC)	M.2 Module	3.6 mm	80 mm	22 mm	SATA III	70 °C	0 °C	960 GB	520 MB/s	960 mA
