140-510 Series
Manufacturer: EDAC Inc.
Beta
⌘K
2.0MM PITCH CONNECTOR WITH 10 P.
| Part | Contact Type | Insulation Color | Contact Length - Post [x] | Contact Length - Post | Fastening Type | Insulation Material | Number of Positions Loaded | Contact Shape | Number of Rows | Termination | Voltage Rating | Shrouding | Number of Positions | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] | Contact Finish - Post | Connector Type | Contact Material | Style | Current Rating (Amps) | Mounting Type | Features | Insulation Height | Insulation Height | Note | Color | Pitch [x] | Pitch [x] | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

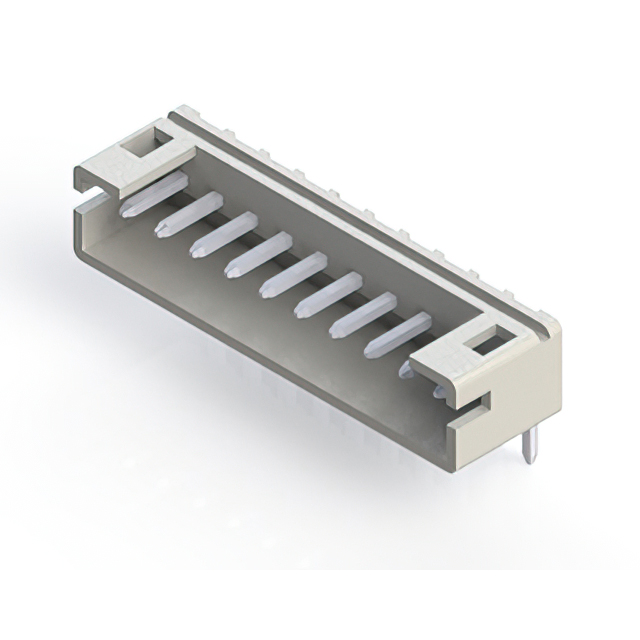

 EDAC Inc. | Male Pin | Natural | 0.134 " | 3.4 mm | Detent Lock | Nylon 6/6 Polyamide (PA66) | All | Square | 1 | Solder | 100 VAC | Shrouded - 4 Wall | 10 | 0.079 " | 2 mm | -40 C | 105 ░C | UL94 V-0 | 0.185 in | 4.7 mm | Tin | Header | Brass | Board to Cable/Wire | 2 A | Right Angle Through Hole | ||||||||

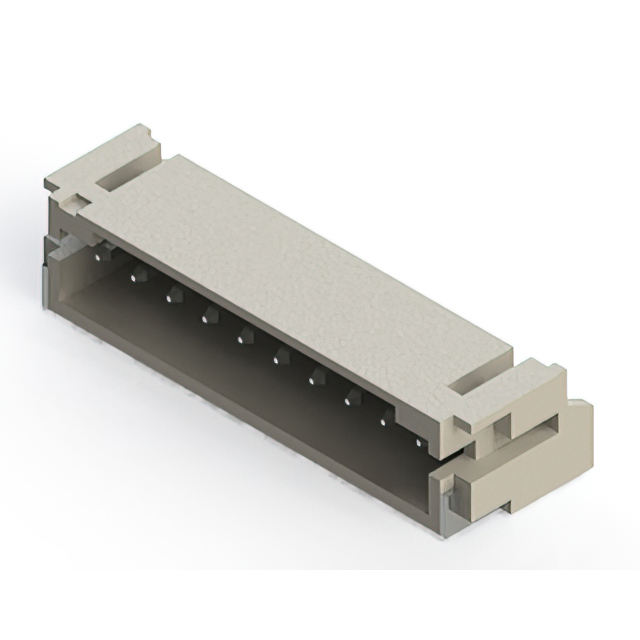

 EDAC Inc. | Male Pin | Natural | Detent Lock | Liquid Crystal Polymer (LCP) | All | Square | 1 | Solder | 100 VAC | Shrouded - 4 Wall | 10 | 0.079 " | 2 mm | -40 C | 105 ░C | UL94 V-0 | Tin | Header | Brass | Board to Cable/Wire | 2 A | Surface Mount | Solder Retention | 0.217 in | 5.51 mm | |||||||||

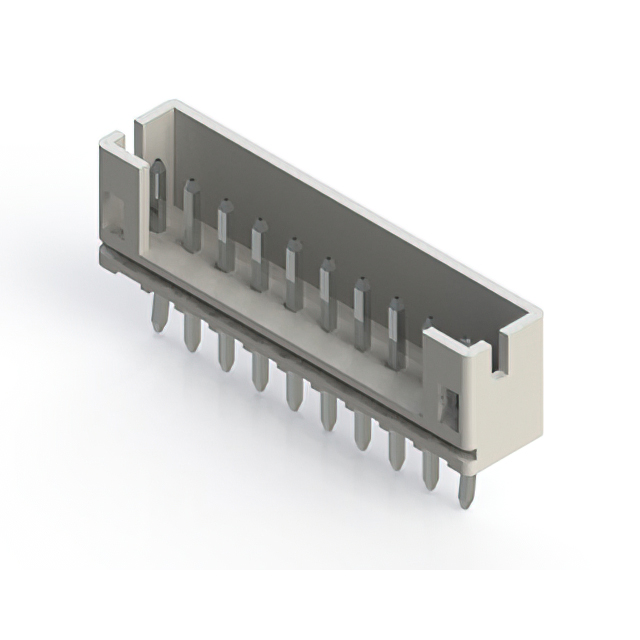

 EDAC Inc. | Male Pin | Natural | Detent Lock | Nylon 6/6 Polyamide (PA66) | All | Square | 1 | Kinked Pin Solder | 100 VAC | Shrouded - 4 Wall | 10 | 0.079 " | 2 mm | -40 C | 105 ░C | UL94 V-0 | 0.24 in | 6.1 mm | Tin | Header | Brass | Board to Cable/Wire | 2 A | Through Hole | ||||||||||

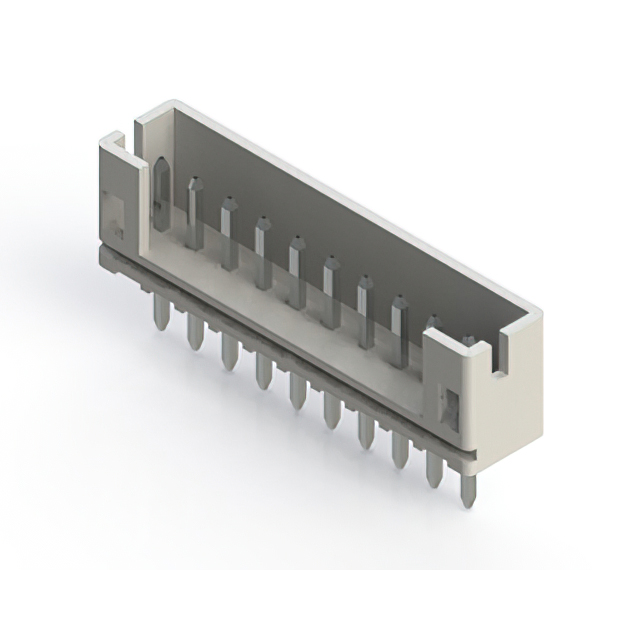

 EDAC Inc. | Male Pin | Natural | Detent Lock | Nylon 6/6 Polyamide (PA66) | All | Square | 1 | Solder | 100 VAC | Shrouded - 4 Wall | 10 | 0.079 " | 2 mm | -40 C | 105 ░C | UL94 V-0 | 0.24 in | 6.1 mm | Tin | Header | Brass | Board to Cable/Wire | 2 A | Through Hole | ||||||||||
 EDAC Inc. | Male Pin | Natural | Detent Lock | Nylon 9T Polyamide (PA9T) | All | Square | 1 | Solder | 100 VAC | Shrouded - 4 Wall | 10 | 0.079 " | 2 mm | -25 °C | 85 °C | UL94 V-0 | Tin | Header | Brass | Board to Cable/Wire | 2 A | Right Angle Surface Mount | Solder Retention | 0.217 in | 5.51 mm | |||||||||

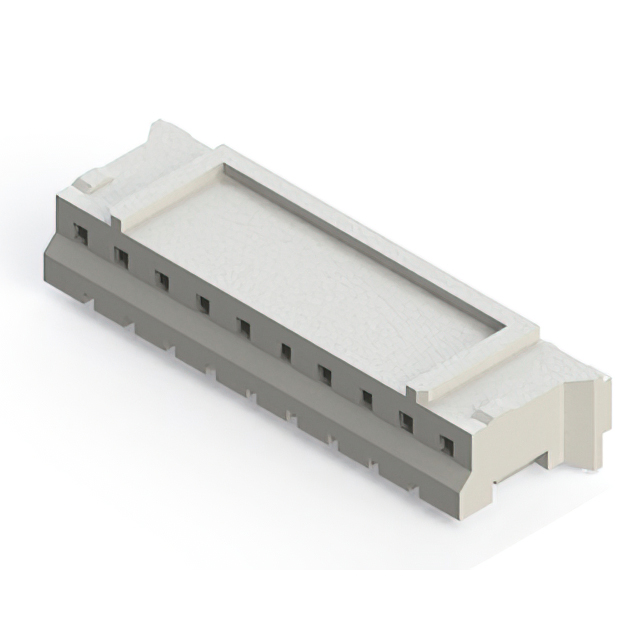

 EDAC Inc. | Female Socket | Detent Lock | Nylon 6/6 Polyamide (PA66) | 1 | 10 | -25 °C | 85 °C | Receptacle | Free Hanging (In-Line) | Polarizing Key | Contacts Not Included | Natural | 0.079 in | 2 mm | Crimp |
