746-058 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 58POS 0.125

Part	Termination Rows	Material - Insulation	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Number of Positions/Bay/Row	Contact Material	Card Type	Mounting Type	Gender	Number of Rows	Termination	Color	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 746-058-545-501	1	Polyester Thermoplastic	Single	-40 C	105 ░C	Gold	58	Copper Alloy	Non Specified - Single Edge	Through Hole	Female	1	Press-Fit Wire Wrap	Black	58	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in

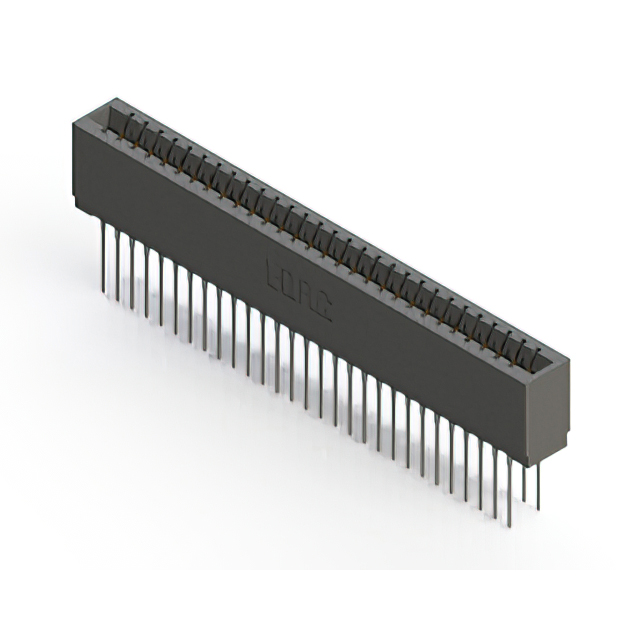

EDAC Inc. 746-058-545-601		Polyester Thermoplastic	Dual	-40 C	105 ░C	Gold	29	Copper Alloy	Non Specified - Dual Edge	Through Hole	Female		Press-Fit Wire Wrap	Black	58	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	2	2
EDAC Inc. 746-058-527-601		Polyester Thermoplastic	Dual	-40 C	105 ░C	Gold	29	Copper Alloy	Non Specified - Dual Edge	Through Hole	Female		Press-Fit	Black	58	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	2	2
EDAC Inc. 746-058-525-601		Polyester Thermoplastic	Dual	-40 C	105 ░C	Gold	29	Copper Alloy	Non Specified - Dual Edge	Through Hole	Female		Press-Fit	Black	58	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	2	2

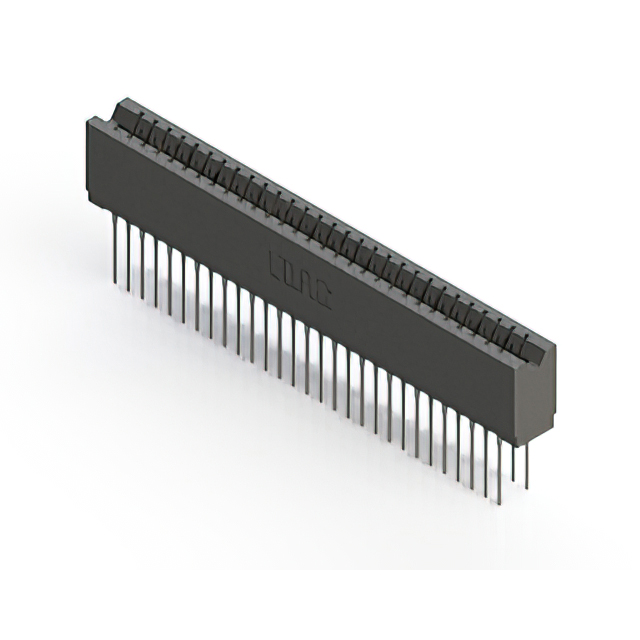

EDAC Inc. 746-058-541-206		Polyester Thermoplastic	Dual	-40 C	105 ░C	Gold	29	Copper Alloy	Non Specified - Dual Edge	Through Hole	Female		Press-Fit Wire Wrap	Black	58	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	2	2
EDAC Inc. 746-058-540-206		Polyester Thermoplastic	Dual	-40 C	105 ░C	Gold	29	Copper Alloy	Non Specified - Dual Edge	Through Hole	Female		Press-Fit Wire Wrap	Black	58	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	2	2
EDAC Inc. 746-058-545-201		Polyester Thermoplastic	Dual	-40 C	105 ░C	Gold	29	Copper Alloy	Non Specified - Dual Edge	Through Hole	Female		Press-Fit Wire Wrap	Black	58	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	2	2

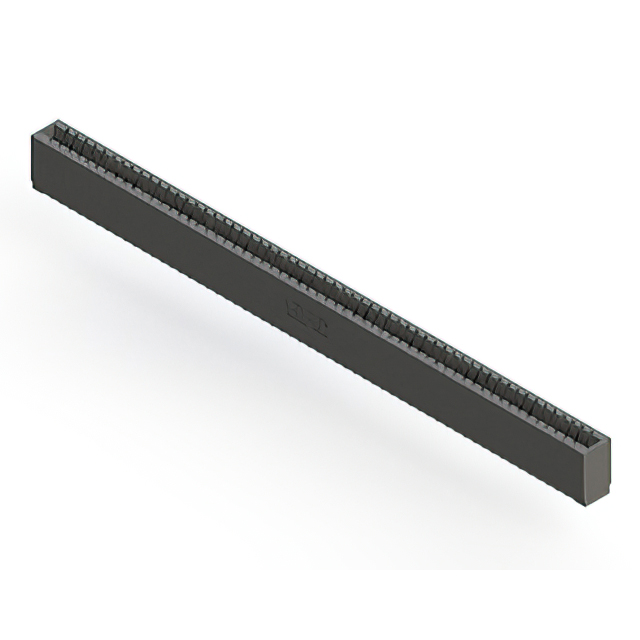

EDAC Inc. 746-058-520-101	1	Polyester Thermoplastic	Single	-40 C	105 ░C	Gold	58	Copper Alloy	Non Specified - Single Edge	Through Hole	Female	1	Press-Fit	Black	58	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in
EDAC Inc. 746-058-527-201		Polyester Thermoplastic	Dual	-40 C	105 ░C	Gold	29	Copper Alloy	Non Specified - Dual Edge	Through Hole	Female		Press-Fit	Black	58	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	2	2
EDAC Inc. 746-058-527-606		Polyester Thermoplastic	Dual	-40 C	105 ░C	Gold	29	Copper Alloy	Non Specified - Dual Edge	Through Hole	Female		Press-Fit	Black	58	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	3.18 mm	0.125 in	2	2
