S Series

Catalog

3.5MM (1/8" MINI) LOCKING STEREO PLUG, NICKEL HANDLE, TIN PLUG, 0.175" CABLE OPENING

Part	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Gender	Connector Type	Termination	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Signal Lines	Actual Diameter [diameter]	Actual Diameter [diameter]	Features	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Mounting Type	Includes	Voltage - Rated	Body Color	Body Material	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Contact Material	Contact Material - Plating	Housing Material	Current Rating (Amps)	Mating Length/Depth	Mating Length/Depth	Cable Opening [Max]	Cable Opening	Cable Opening

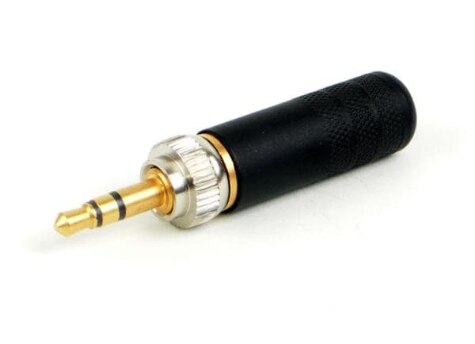

SWITCHCRAFT/CONXALL 35HDLNNS	3	3	Male	Phone Plug	Solder Eyelet(s)	Unshielded	85 °C	-20 ░C	Stereo (3 Conductor TRS)	3.5 mm	0.138 in	Locking	0.125 in	3.5 mm	0.141 in	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL 35HDLSAU12	3	3	Male	Phone Plug	Solder Eyelet(s)	Unshielded	85 °C	-20 ░C	Stereo (3 Conductor TRS)	3.56 mm	0.14 in	Locking Sealed Strain Relief	0.125 in	3.5 mm	0.141 in	Free Hanging (In-Line)	1 Connector 1 Handle 1 Insulator Tube 1 O-Ring	140 VDC 250 VAC	Black Gold	Copper Alloy	3.81 mm	3.18 mm	0.15 in	0.125 in	Copper Alloy	Gold	Copper Alloy	4 A

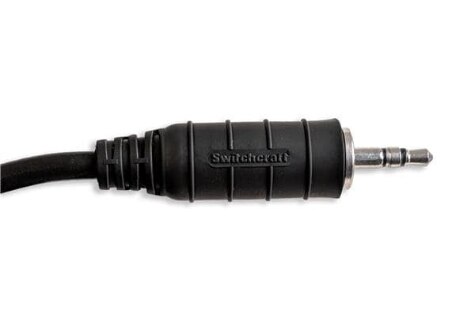

SWITCHCRAFT/CONXALL 35HDSAU12	3	3	Male	Phone Plug	Solder Eyelet(s)	Unshielded	85 °C	-20 ░C	Stereo (3 Conductor TRS)	3.56 mm	0.14 in	Sealed Strain Relief	0.125 in	3.5 mm	0.141 in	Free Hanging (In-Line)	1 Connector 1 Handle 1 Insulator Tube 1 O-Ring	140 VDC 250 VAC	Black Gold	Copper Alloy	3.81 mm	3.18 mm	0.15 in	0.125 in	Copper Alloy	Gold	Copper Alloy	4 A	14.2 mm	0.56 in
SWITCHCRAFT/CONXALL 35HDLSN12	3	3	Male	Phone Plug	Solder Eyelet(s)	Unshielded	85 °C	-20 ░C	Stereo (3 Conductor TRS)	3.56 mm	0.14 in	Locking Sealed Strain Relief	0.125 in	3.5 mm	0.141 in	Free Hanging (In-Line)	1 Connector 1 Handle 1 Insulator Tube 1 O-Ring	140 VDC 250 VAC	Black Silver	Copper Alloy	3.81 mm	3.18 mm	0.15 in	0.125 in	Copper Alloy	Tin	Copper Alloy	4 A
SWITCHCRAFT/CONXALL 35HDSAU15	3	3	Male	Phone Plug	Solder Eyelet(s)	Unshielded	85 °C	-20 ░C	Stereo (3 Conductor TRS)	3.56 mm	0.14 in	Sealed Strain Relief	0.125 in	3.5 mm	0.141 in	Free Hanging (In-Line)	1 Connector 1 Handle 1 Insulator Tube 1 O-Ring	140 VDC 250 VAC	Black Gold	Copper Alloy	4.45 mm	3.81 mm	0.175 "	0.15 "	Copper Alloy	Gold	Copper Alloy	4 A	14.2 mm	0.56 in

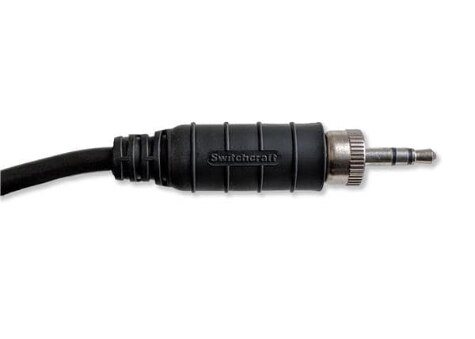

SWITCHCRAFT/CONXALL 35HDLSAU17	3	3	Male	Phone Plug	Solder Eyelet(s)	Unshielded	85 °C	-20 ░C	Stereo (3 Conductor TRS)	3.56 mm	0.14 in	Locking Sealed Strain Relief	0.125 in	3.5 mm	0.141 in	Free Hanging (In-Line)	1 Connector 1 Handle 1 Insulator Tube 1 O-Ring	140 VDC 250 VAC	Black Gold	Copper Alloy		4.45 mm	0.21 in	0.175 in	Copper Alloy	Gold	Copper Alloy	4 A			5.33 mm
SWITCHCRAFT/CONXALL 35HDNN	3	3	Male	Phone Plug	Solder	Unshielded	66 °C	0 °C	Stereo (3 Conductor TRS)	3.5 mm	0.138 in		0.125 in	3.5 mm	0.141 in	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL 35HDLSAU15	3	3	Male	Phone Plug	Solder Eyelet(s)	Unshielded	85 °C	-20 ░C	Stereo (3 Conductor TRS)	3.56 mm	0.14 in	Locking Sealed Strain Relief	0.125 in	3.5 mm	0.141 in	Free Hanging (In-Line)	1 Connector 1 Handle 1 Insulator Tube 1 O-Ring	140 VDC 250 VAC	Black Gold	Copper Alloy	4.45 mm	3.81 mm	0.175 "	0.15 "	Copper Alloy	Gold	Copper Alloy	4 A
SWITCHCRAFT/CONXALL 35HDLNAUS	3	3	Male	Phone Plug	Solder Eyelet(s)	Unshielded	85 °C	-20 ░C	Stereo (3 Conductor TRS)	3.5 mm	0.138 in	Locking	0.125 in	3.5 mm	0.141 in	Free Hanging (In-Line)		140 VDC 250 VAC	Black	Copper Alloy					Copper Alloy	Gold	Thermoplastic	4 A	14.2 mm	0.56 in		0.175 in	4.45 mm
SWITCHCRAFT/CONXALL 35HDLBN	3	3	Male	Phone Plug	Solder Eyelet(s)	Unshielded	85 °C	-20 ░C	Stereo (3 Conductor TRS)	3.53 mm	0.139 in		0.125 in	3.5 mm	0.141 in	Free Hanging (In-Line)	1 Connector 1 Handle 1 Insulator Tube	140 VDC 250 VAC	Black Silver	Copper Alloy					Copper Alloy	Silver	Copper Alloy	4 A	14.2 mm	0.56 in		0.29 in	7.37 mm
