MA111 Series

Catalog

RF ANT 850MHZ/900MHZ DOME PNL MT

Part	Ingress Protection	VSWR	Gain	Applications	Height (Max) [z]	Height (Max) [z]	Frequency Range [Min]	Frequency Range [Max]	RF Family/Standard	Frequency (Center/Band)	Termination	Antenna Type	Mounting Type	Features	Number of Bands

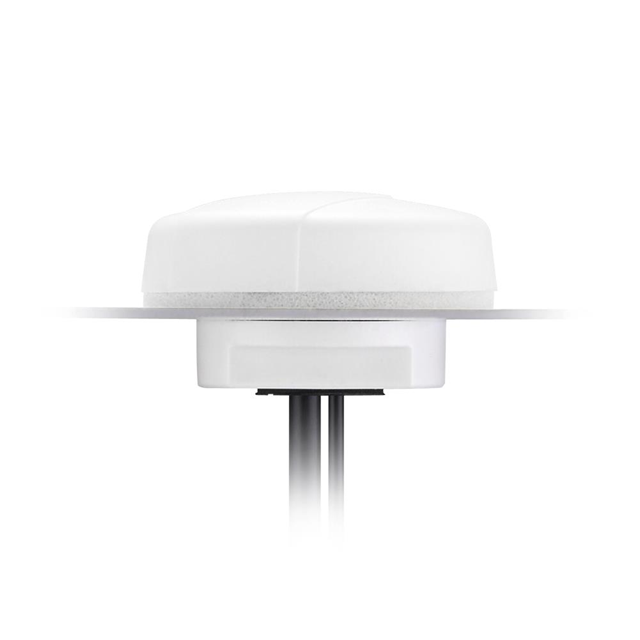

Taoglas Limited MA111.W.C.LB.001	IP67 IP69K	2 2.5 3 3.5	-1.4 dBi -1.3 dBi 1.5 dBi 2 dBi 2.5 dBi 3 dBi 4 dBi	CDMA GLONASS GPS GSM UMTS	0.772 in	19.6 mm	1.574 GHz 1.71 GHz 824 MHz	1.606 GHz 2.17 GHz 960 MHz	Cellular Navigation	1.575 GHz 1.602 GHz 1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	SMA Male (2)	Dome	Panel Mount	Cable - 3m Filter LNA	7
