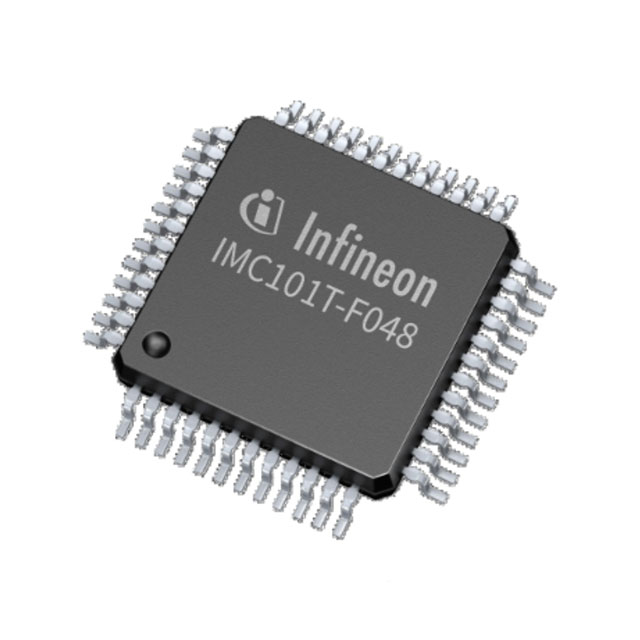

IMC101 Series
Manufacturer: INFINEON
Beta
⌘K
☆ PMSM/BLDC MOTOR CONTROLLER WITH INTEGRATED SCRIPT ENGINE ☆ FULL PROTECTION FOR POWER STAGE AND MOTOR ☆ FULL FLEXIBITLITY ON GATE DRIVER AND POWER STAGE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output | Package / Case | Supplier Device Package | Motor Type - AC, DC | Mounting Type | Function | Applications | Voltage - Supply [Max] | Voltage - Supply [Min] | Interface | Technology | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | -40 °C | 105 °C | 50 mA | 48-VFQFN Exposed Pad | PG-VQFN-48-73 | AC Synchronous | Surface Mount | Controller | Home Appliance | 5.5 V | 3 V | Analog PWM | ||
 INFINEON | -40 °C | 105 °C | 50 mA | 48-LQFP | PG-LQFP-48-10 | AC Synchronous | Surface Mount | Controller - Commutation Direction Management | Home Appliance | 40 VDC | 5.5 V | Analog PWM | CMOS | Half Bridge (3) |
 INFINEON | -40 °C | 105 °C | 50 mA | 38-TFSOP (0.173" 4.40mm Width) | PG-TSSOP-38-9 | AC Synchronous | Surface Mount | Controller | Home Appliance | 5.5 V | 3 V | Analog PWM |
