KUEP-3A Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

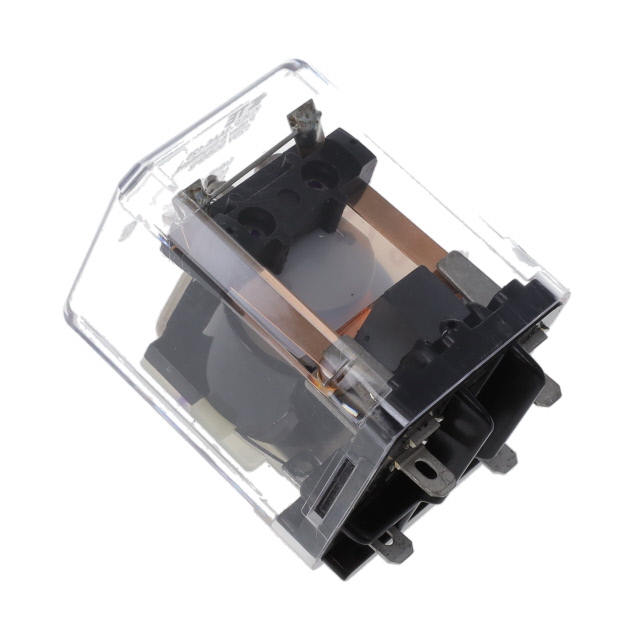

RELAY GEN PURPOSE SPST 10A 120V
| Part | Coil Resistance | Approval Agency | Relay Type | Mounting Type | Termination Style | Coil Voltage | Load - Max Switching | Coil Insulation | Contact Material | Coil Type | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Switching Voltage [Max] | Contact Form | Release Time | Operate Time | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.25 kOhms | CSA UR | General Purpose | Chassis Mount | Quick Connect | 120 VAC | 1500 VA | Class B | Silver Cadmium Oxide (AgCdO) | Non Latching | 17.5 mA | 55 °C | -45 °C | 102 VAC | 150 VDC | SPST-NO (DM) (1 Form X) | 10 ms | 15 ms | 10 A |
