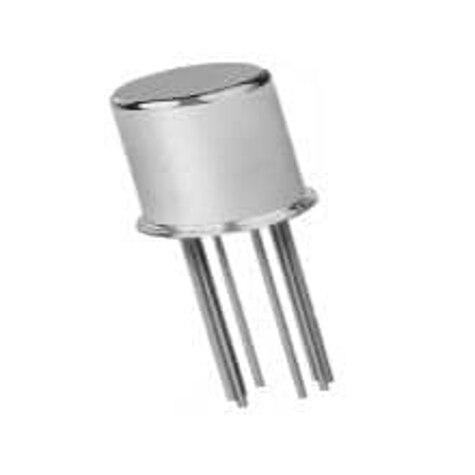

JMSPD Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE DPDT 1A 12V
| Part | Coil Resistance | Operate Time | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Rating (Current) | Contact Material | Coil Voltage | Switching Voltage [Max] | Contact Form | Coil Type | Grade | Must Operate Voltage | Qualification | Relay Type | Release Time | Seal Rating | Must Release Voltage | Termination Style | Coil Current | Load - Max Switching | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 850 Ohms | 4 ms | -65 ░C | 125 °C | Diode | 1 A | Gold (Au) Silver Palladium (AgPd) | 12 VDC | 28 VDC 115 VAC | DPDT (2 Form C) | Non Latching | Military | 7 VDC | MIL-R-39016/16 | General Purpose | 7.5 ms | Sealed - Hermetically | 0.64 VDC | PC Pin | 14.1 mA | 28 W 115 VA | Through Hole |
TE Connectivity AMP Connectors | 100 Ohms | 4 ms | -65 ░C | 125 °C | Diode | 1 A | Gold (Au) Silver Palladium (AgPd) | 5 VDC | 28 VDC 115 VAC | DPDT (2 Form C) | Non Latching | Military | 2.6 VDC | MIL-R-39016/16 | General Purpose | 7.5 ms | Sealed - Hermetically | 0.23 VDC | PC Pin | 50 mA | 28 W 115 VA | Through Hole |
 TE Connectivity AMP Connectors | 1.6 kOhms | 4 ms | -65 ░C | 125 °C | Diode | 1 A | Gold (Au) Silver Palladium (AgPd) | 18 VDC | 28 VDC 115 VAC | DPDT (2 Form C) | Non Latching | Military | 9.8 VDC | MIL-R-39016/16 | General Purpose | 7.5 ms | Sealed - Hermetically | 0.92 VDC | PC Pin | 11.3 mA | 28 W 115 VA | Through Hole |
TE Connectivity AMP Connectors | 3.3 kOhms | 4 ms | -65 ░C | 125 °C | Diode | 1 A | Gold (Au) Silver Palladium (AgPd) | 26.5 VDC | 28 VDC 115 VAC | DPDT (2 Form C) | Non Latching | Military | 14 VDC | MIL-R-39016/16 | General Purpose | 7.5 ms | Sealed - Hermetically | 1.4 VDC | PC Pin | 28 W 115 VA | Through Hole |
