PTN24B Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

POT 100K OHM 1/2W CARBON R-LOG

Part	Bushing Thread	Actuator Type	Actuator Length [x]	Actuator Length [x]	Mounting Type	Taper	Tolerance	Resistive Material	Built in Switch	Rotation	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Power (Watts)	Power (Watts)	Resistance (Ohms)	Adjustment Type	Number of Turns	Termination Style	Number of Gangs	Size - Body [diameter]	Size - Body [diameter]	Resistance (Ohms) [custom]	Bushing Thread [diameter]	Bushing Thread [custom]
Same Sky (Formerly CUI Devices) PTN24B-C10020K1C	M8 x 0.75	Knurled and Slotted	0.787 in	20 mm	Panel Mount	Reverse Logarithmic	20 %	Carbon	Rotary SPST	305 °	6 mm	0.236 in	0.5 W	0.5 W	100k	Top Adjustment	1	PC Pins	1
Same Sky (Formerly CUI Devices) PTN24B-C10020K1C	M8 x 0.75	Knurled and Slotted	0.787 in	20 mm	Panel Mount	Reverse Logarithmic	20 %	Carbon	Rotary SPST	305 °	6 mm	0.236 in	0.5 W	0.5 W	100k	Top Adjustment	1	PC Pins	1	0.945 "	24 mm
Same Sky (Formerly CUI Devices) PTN24B-B5025DB	M8 x 0.75	Flatted	0.984 in	25 mm	Panel Mount	Linear	20 %	Carbon	Rotary SPST	305 °	6 mm	0.236 in	0.5 W	0.5 W		User Defined	1	Solder Lug	1			50 kOhms
Same Sky (Formerly CUI Devices) PTN24B-B1015K1B	M8 x 0.75	Knurled and Slotted	0.591 in	15 mm	Panel Mount	Linear	20 %	Carbon	Rotary SPST	305 °	6 mm	0.236 in	0.5 W	0.5 W	10k	User Defined	1	Solder Lug	1

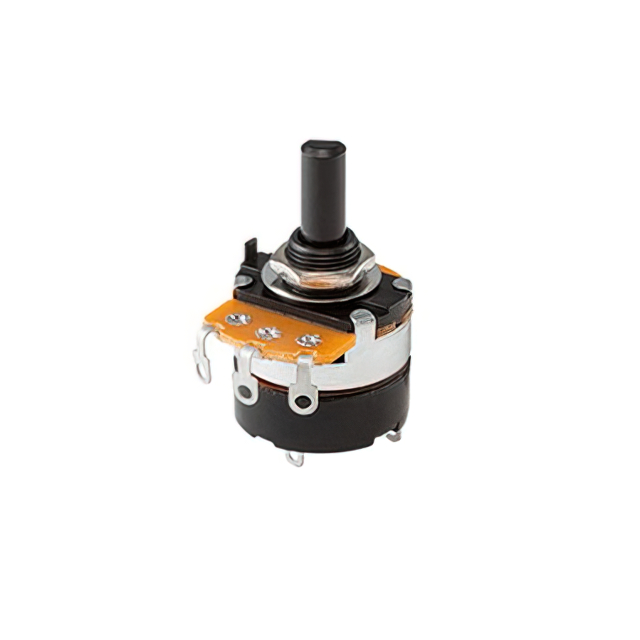

Same Sky (Formerly CUI Devices) PTN24B-B1020DPB		Flatted	0.787 in	20 mm	Panel Mount	Linear	20 %	Carbon	Rotary SPST	305 °	6 mm	0.236 in	0.5 W	0.5 W	10k	User Defined	1	Solder Lug	1	0.945 "	24 mm		9.5	0.75
Same Sky (Formerly CUI Devices) PTN24B-B5025DB	M8 x 0.75	Flatted	0.984 in	25 mm	Panel Mount	Linear	20 %	Carbon	Rotary SPST	305 °	6 mm	0.236 in	0.5 W	0.5 W		User Defined	1	Solder Lug	1	0.945 "	24 mm	50 kOhms
Same Sky (Formerly CUI Devices) PTN24B-B1020DPB		Flatted	0.787 in	20 mm	Panel Mount	Linear	20 %	Carbon	Rotary SPST	305 °	6 mm	0.236 in	0.5 W	0.5 W	10k	User Defined	1	Solder Lug	1				9.5	0.75
Same Sky (Formerly CUI Devices) PTN24B-C20020K1B	M8 x 0.75	Knurled and Slotted	0.787 in	20 mm	Panel Mount	Linear	20 %	Carbon	Rotary SPST	305 °	6 mm	0.236 in	0.5 W	0.5 W		Top Adjustment	1	PC Pins	1	0.945 "	24 mm
Same Sky (Formerly CUI Devices) PTN24B-C20020K1B	M8 x 0.75	Knurled and Slotted	0.787 in	20 mm	Panel Mount	Linear	20 %	Carbon	Rotary SPST	305 °	6 mm	0.236 in	0.5 W	0.5 W		Top Adjustment	1	PC Pins	1

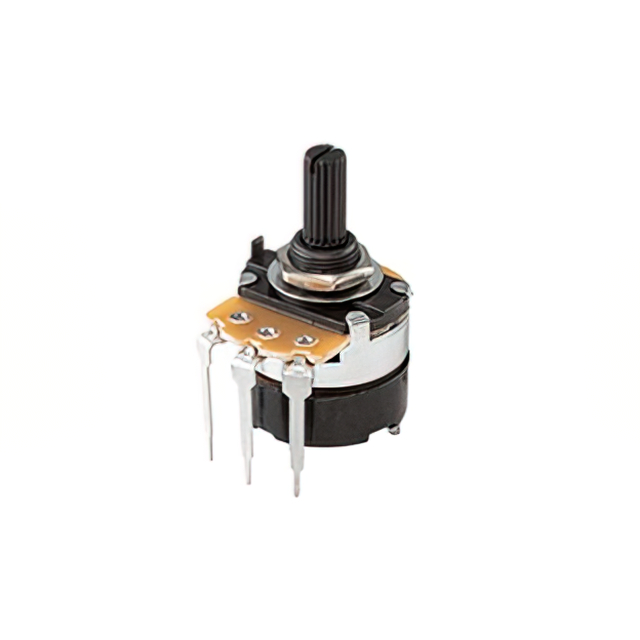

Same Sky (Formerly CUI Devices) PTN24B-C20020K1PB	M8 x 0.75	Knurled and Slotted	0.787 in	20 mm	Panel Mount	Linear	20 %	Carbon	Rotary SPST	305 °	6 mm	0.236 in	0.5 W	0.5 W		Top Adjustment	1	PC Pins	1	0.945 "	24 mm
