INND-SS40 Series

Catalog

DISPLAY 7SEG 0.4" SGL AMB 10SMD

Part	Current - Test	Number of Characters	Display Type	Color	Millicandela Rating	Common Pin	Power Dissipation (Max) [Max]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size
Inolux Corporation INND-SS40AAG	20 mA	1	7-Segment	Amber	13 mcd	Common Anode	70 mW	10-SMD No Lead	9.2 mm	15 mm	3.15 mm	0.124 in	0.362 "	0.591 in	612 nm	2 V	10.16 mm	0.4 in
Inolux Corporation INND-SS40AAB	20 mA	1	7-Segment	Amber	13 mcd	Common Anode	70 mW	10-SMD No Lead	9.2 mm	15 mm	3.15 mm	0.124 in	0.362 "	0.591 in	612 nm	2 V	10.16 mm	0.4 in
Inolux Corporation INND-SS40YAB	20 mA	1	7-Segment	Yellow	13 mcd	Common Anode	70 mW	10-SMD No Lead	9.2 mm	15 mm	3.15 mm	0.124 in	0.362 "	0.591 in	592 nm	2 V	10.16 mm	0.4 in

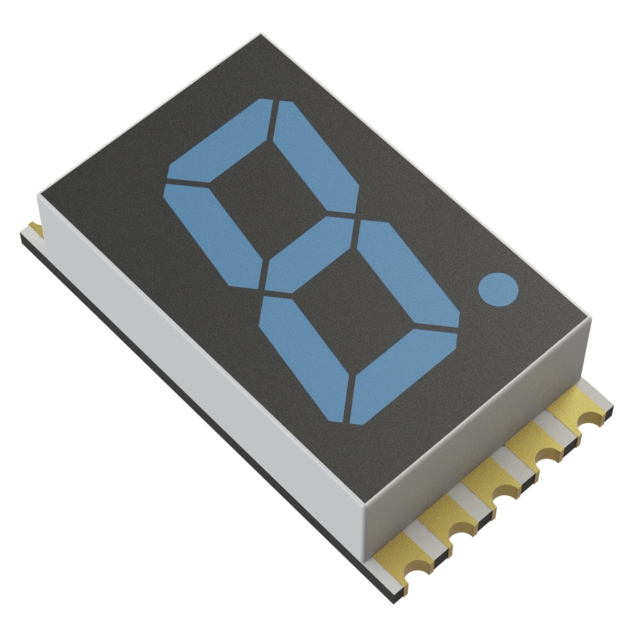

Inolux Corporation INND-SS40BAB	20 mA	1	7-Segment	Blue	7 mcd	Common Anode	114 mW	10-SMD No Lead	9.2 mm	15 mm	3.15 mm	0.124 in	0.362 "	0.591 in	465 nm	3.2 V	10.16 mm	0.4 in
Inolux Corporation INND-SS40DRCG	20 mA	1	7-Segment	Red	4 mcd	Common Cathode	70 mW	10-SMD No Lead	9.2 mm	15 mm	3.15 mm	0.124 in	0.362 "	0.591 in	660 nm	2 V	10.16 mm	0.4 in

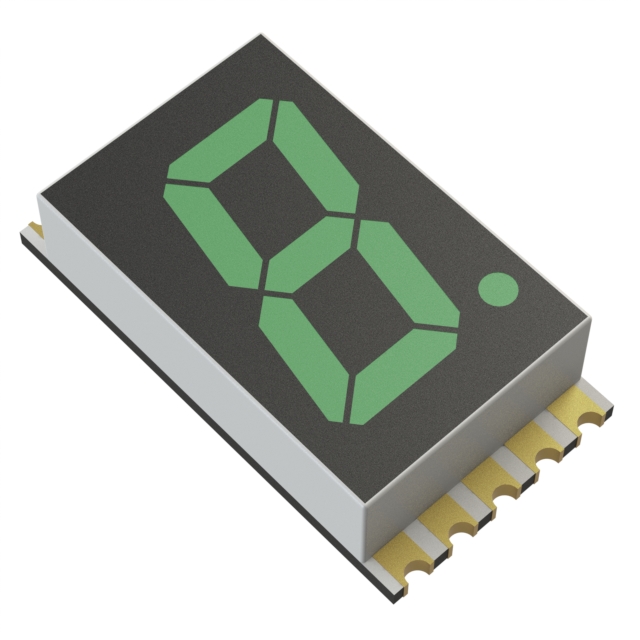

Inolux Corporation INND-SS40GCG	20 mA	1	7-Segment	Green	4 mcd	Common Cathode	114 mW	10-SMD No Lead	9.2 mm	15 mm	3.15 mm	0.124 in	0.362 "	0.591 in	525 nm	3.2 V	10.16 mm	0.4 in
Inolux Corporation INND-SS40GAB	20 mA	1	7-Segment	Green	4 mcd	Common Anode	114 mW	10-SMD No Lead	9.2 mm	15 mm	3.15 mm	0.124 in	0.362 "	0.591 in	525 nm	3.2 V	10.16 mm	0.4 in
Inolux Corporation INND-SS40GCB	20 mA	1	7-Segment	Green	4 mcd	Common Cathode	114 mW	10-SMD No Lead	9.2 mm	15 mm	3.15 mm	0.124 in	0.362 "	0.591 in	525 nm	3.2 V	10.16 mm	0.4 in
Inolux Corporation INND-SS40YCG	20 mA	1	7-Segment	Yellow	13 mcd	Common Cathode	70 mW	10-SMD No Lead	9.2 mm	15 mm	3.15 mm	0.124 in	0.362 "	0.591 in	592 nm	2 V	10.16 mm	0.4 in
