UT018 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN BACKSH W/CLMP SZ18 SIL PG16

Part	For Use With/Related Products	Material Flammability Rating	Features	Ingress Protection Description	Ingress Protection IP Rating	Type	Color	Thread Size	Material	Shell Size - Insert	Shell Size - Insert	Cable Opening (Min)	Cable Opening (Max)	Shielding	Cable Exit Angle	Includes	Includes Total Count	Plating	Cable Opening	Thread Pitch (TPI)	Thread Size (Class)	Thread Size (Nominal)	Diameter - Outside	Accessory Type

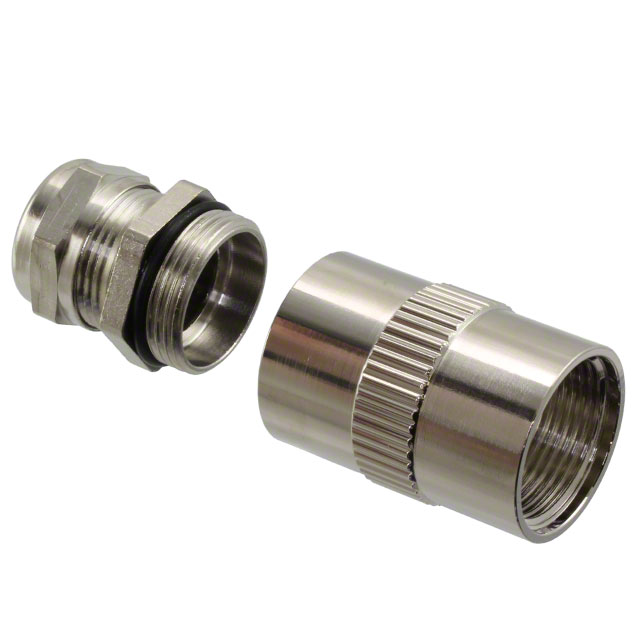

Amphenol Aerospace Operations UT018JCS	Trim Trio® UTO and UTOW Connectors	UL94 V-0	Sealing Gland Strain Relief	Dust Tight Water Resistant Waterproof	IP68 IP69K	Backshell Cable Clamp	Silver	PG16	Brass	18	18	0.374 in	0.551 in	Unshielded	180 °
Amphenol Aerospace Operations UT018JCSL	Trim Trio® UTO and UTOW Connectors	UL94 V-0	Sealing Gland Strain Relief	Dust Tight Water Resistant Waterproof	IP68 IP69K	Backshell Cable Clamp	Silver		Brass	18	18			Unshielded	180 °

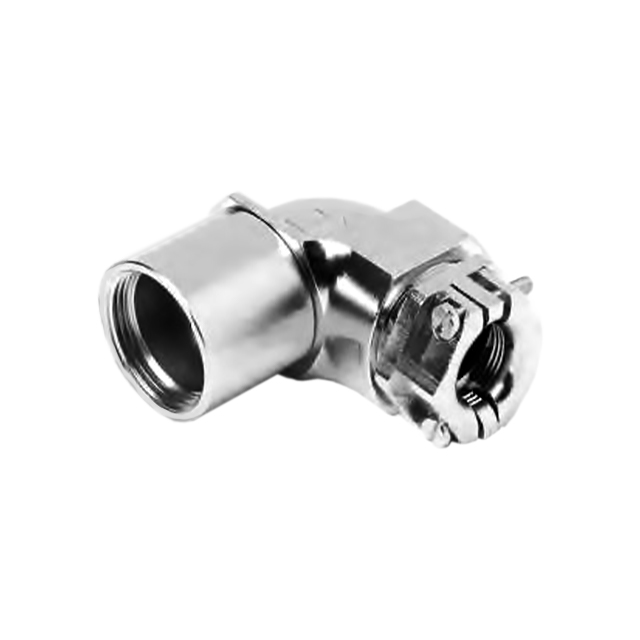

Amphenol Aerospace Operations UT018LPGN	Trim Trio® UTO and UTOW Connectors	UL94 V-0	Clamp Screws Strain Relief			Backshell Cable Clamp	Silver	PG16	Brass	18	18	0.315 in	0.807 in	Unshielded	90 °	Backshell Cable Clamp Gromet Screws Washers	8 pcs

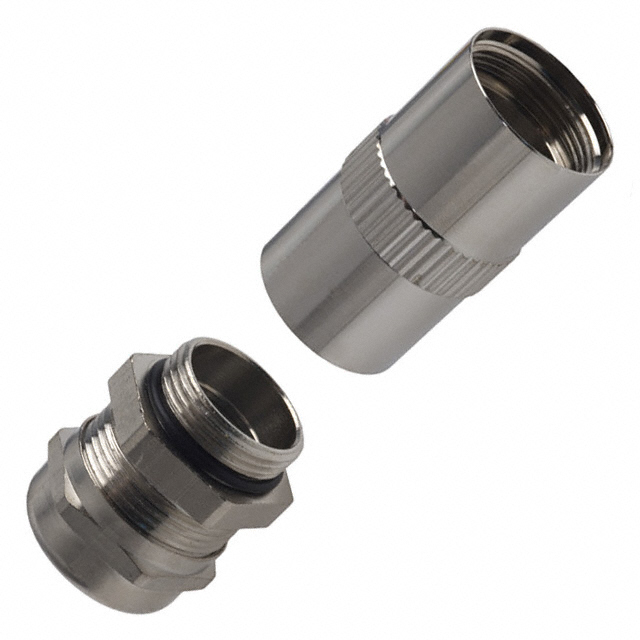

Amphenol Aerospace Operations UT018JCL	Trim Trio® UTO and UTOW Connectors	UL94 V-0	Sealing Gland Strain Relief	Dust Tight Water Resistant Waterproof	IP68 IP69K	Backshell Cable Clamp	Silver	PG16	Brass	18	18	0.453 in	0.709 in	Unshielded	180 °
Amphenol Aerospace Operations UT018JCPGN	Trim Trio® UTO and UTOW Connectors	UL94 V-0	Clamp Screws Strain Relief	Dust Tight Water Resistant	IP65	Backshell Cable Clamp	Silver	PG16	Aluminum Alloy	18	18			Unshielded	180 °	Backshell Cable Clamp Grommet Screws Washers	7 pcs	Nickel	0.65 in
Amphenol Aerospace Operations UT018JC	Trim Trio® UTO and UTOW Connectors	UL94 V-0	Sealing Gland Strain Relief	Dust Tight Water Resistant Waterproof	IP68 IP69K	Backshell Cable Clamp	Silver	PG16	Brass	18	18	0.374 in	0.551 in	Unshielded	180 °

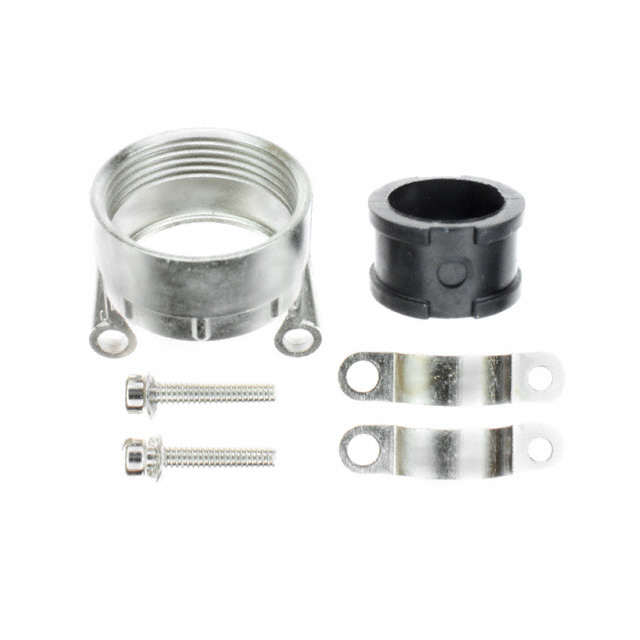

Amphenol Aerospace Operations UT018AC	Trim Trio® UTO and UTOW Connectors	UL94 V-0	Clamp Screws			Backshell Cable Clamp	Silver		Metal	18	18			Unshielded	180 °				0.63 in	18 TPI	UNEF	1.0625 in	1.15 in
Amphenol Aerospace Operations UT018DCG	Trim Trio® UTG UTO UTOW UTP Receptacles		Dust Tight Metal Chain Waterproof				Silver		Metal	18	18													Cap (Cover) Dust
