EWS30 Series

Catalog

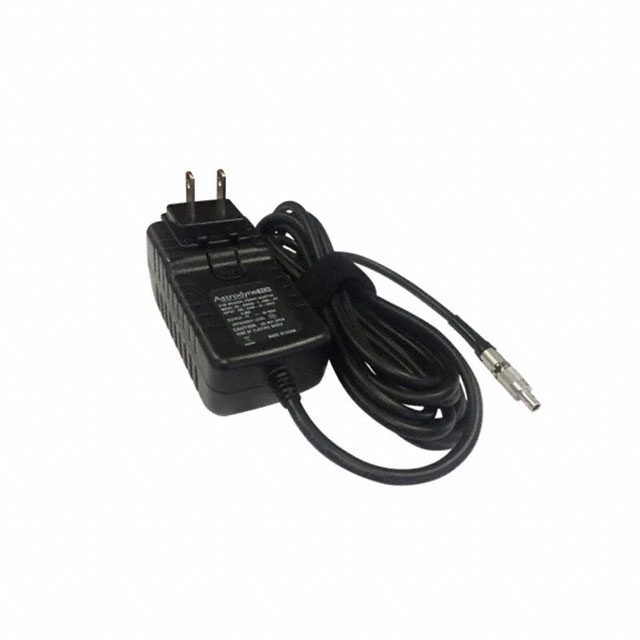

AC/DC WALL MOUNT ADAPTER 7V 30W

Part	Approval Agency	Output Connector [diameter]	Output Connector [x]	Output Connector	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Cord Length	Cord Length	Power (Watts)	Current - Output (Max) [Max]	Operating Temperature [Max]	Efficiency	Voltage - Output	No Load Power Consumption	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Polarization	Form	Applications	Input Connector	Region Utilized
Astrodyne TDI EWS30-07-MB2-10N	CB CE FCC TUV	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	41.4 mm	3.7 in	46.7 mm	1.63 in	1.84 "	94 mm	32 in	812.8 mm	30 Watts	4.3 A	70 °C	Level VI	7 V	100 mW	Fixed Blade	264 VAC	90 VAC	60601-1	Positive Center	Wall Mount	Medical	NEMA 1-15P	North America
Astrodyne TDI EWS30-15-MB2-10N	CB CE FCC TUV	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	41.4 mm	3.7 in	46.7 mm	1.63 in	1.84 "	94 mm	48 in	1.22 m	30 Watts	2 A	70 °C	Level VI	15 V	100 mW	Fixed Blade	264 VAC	90 VAC	60601-1	Positive Center	Wall Mount	Medical	NEMA 1-15P	North America
Astrodyne TDI EWS30-24-MB2-10N	CB CE FCC TUV	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	41.4 mm	3.7 in	46.7 mm	1.63 in	1.84 "	94 mm	48 in	1.22 m	30 Watts	1.25 A	70 °C	Level VI	24 V	100 mW	Fixed Blade	264 VAC	90 VAC	60601-1	Positive Center	Wall Mount	Medical	NEMA 1-15P	North America
Astrodyne TDI EWS30-48-MB2-10N	CB CE FCC TUV	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	41.4 mm	3.7 in	46.7 mm	1.63 in	1.84 "	94 mm	48 in	1.22 m	40 W	630 mA	70 °C	Level V	48 V	100 mW	Fixed Blade	264 VAC	90 VAC	60601-1	Positive Center	Wall Mount	Medical	NEMA 1-15P	North America
Astrodyne TDI EWS30-36-MB2-10N	CB CE FCC TUV	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	41.4 mm	3.7 in	46.7 mm	1.63 in	1.84 "	94 mm	48 in	1.22 m	30 Watts	830 mA	70 °C	Level VI	36 V	100 mW	Fixed Blade	264 VAC	90 VAC	60601-1	Positive Center	Wall Mount	Medical	NEMA 1-15P	North America
Astrodyne TDI EWS30-18-MB2-10N	CB CE FCC TUV	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	41.4 mm	3.7 in	46.7 mm	1.63 in	1.84 "	94 mm	48 in	1.22 m	30 Watts	1.67 A	70 °C	Level VI	18 V	100 mW	Fixed Blade	264 VAC	90 VAC	60601-1	Positive Center	Wall Mount	Medical	NEMA 1-15P	North America
Astrodyne TDI EWS30-09-MB2-10N	CB CE FCC TUV	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	41.4 mm	3.7 in	46.7 mm	1.63 in	1.84 "	94 mm	48 in	1.22 m	30 Watts	3.3 A	70 °C	Level VI	9 V	100 mW	Fixed Blade	264 VAC	90 VAC	60601-1	Positive Center	Wall Mount	Medical	NEMA 1-15P	North America
