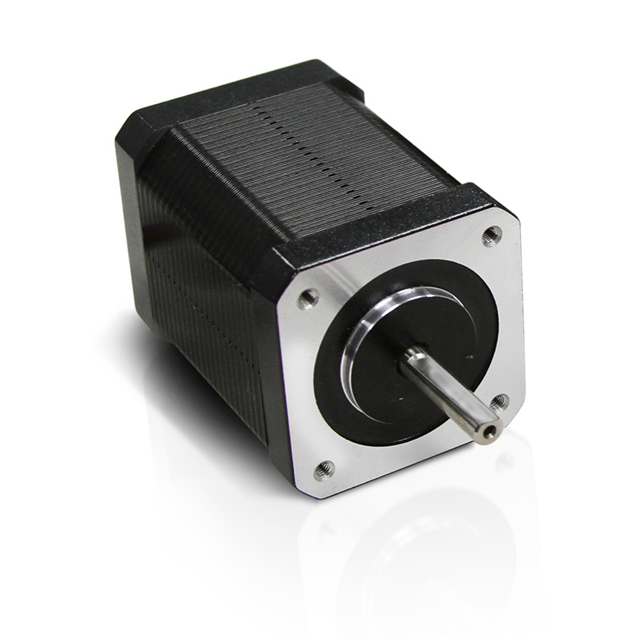

WO-4118C Series
Manufacturer: Lin Engineering
Beta
⌘K
STEPPER MOTOR
| Part | Termination Style | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Voltage - Rated | NEMA Frame Size | Coil Resistance | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Coil Type | Features | Steps per Revolution | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Step Angle | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lin Engineering | Wire Leads | 0.197 in | 5 mm | 24 VDC | 17 | 2 Ohms | 31 mm | 1.22 in | Bipolar | Flatted Shaft | 200 | -20 ░C | 50 °C | 2 A | 812.1 mNm | 115 oz-in | 1.8 ° | 24 mm | 0.945 " | 42.4 mm | 1.669 in | 42.4 mm | 1.669 " |
