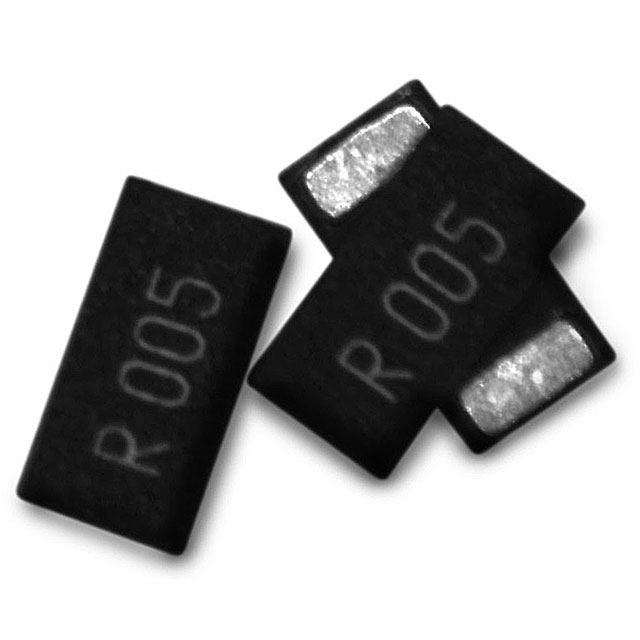

LVT Series

Manufacturer: Ohmite

Catalog

CURRENT SENSE RESISTORS - SMD 0.003 OHM 2% 1.0W CURRENT SENSE

Part	Resistance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Features	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations [custom]	Temperature Coefficient	Composition	Power (Watts)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Tolerance	Power (Watts)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Ohmite LVT12R0030GER	3 mOhms	0.063 "	0.126 "	3.2 mm	1.6 mm	Current Sense	1206 (3216 Metric)	155 C	-55 C	2	100 ppm/°C	Metal Element	1 W	0.026 in	0.65 mm	1206	2 %
Ohmite LVT08R0020HER	2 mOhms	0.049 "	0.079 in	2 mm	1.25 mm	Current Sense	0805	155 C	-55 C	2	100 ppm/°C	Metal Element	0.5 W	0.026 in	0.65 mm	0805	3 %	0.5 W
Ohmite LVT04R0200FER	0.02 Ohms	0.022 in	0.039 "	1 mm	0.55 mm	Current Sense	0402 (1005 Metric)	155 C	-55 C	2	100 ppm/°C	Metal Element	0.333 W			0402	1 %	0.3333333333333333 W	0.35 mm	0.014 "
