6300FE Series
Manufacturer: Belden Inc.
Beta
⌘K

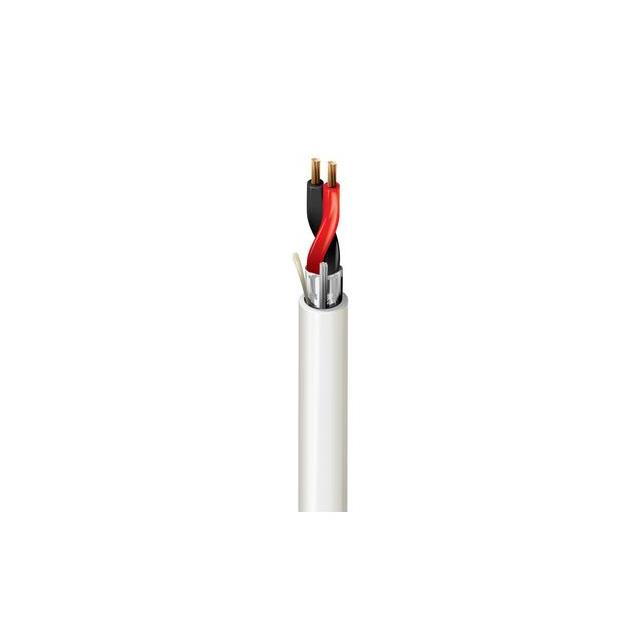

CABLE 2COND 18AWG BLK SHLD
| Part | Shield Material | Shield Coverage | Number of Conductors | Jacket Color | Conductor Insulation | Cable Type | Usage | Features | Jacket (Insulation) Material | Ratings | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Material | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 2 | Black | Low Smoke Poly-Vinyl Chloride (LSPVC) | Multi-Conductor | Security Sound | Drain Wire Rip Cord | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | 304.8 m | 1000 ft | 26 AWG | 7 | 300 VDC | 75 ░C | 0 °C | 0.162 in | 4.11 mm | 18 AWG | Copper Tinned | Foil |
Belden Inc. | Aluminum | 100 % | 2 | White | Low Smoke Poly-Vinyl Chloride (LSPVC) | Multi-Conductor | Security Sound | Drain Wire Rip Cord | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | 304.8 m | 1000 ft | 26 AWG | 7 | 300 VDC | 75 ░C | 0 °C | 0.162 in | 4.11 mm | 18 AWG | Copper Tinned | Foil |
Belden Inc. | Aluminum | 100 % | 2 | White | Low Smoke Poly-Vinyl Chloride (LSPVC) | Multi-Conductor | Security Sound | Drain Wire Rip Cord | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | 152.4 m | 500 ft | 26 AWG | 7 | 300 VDC | 75 ░C | 0 °C | 0.162 in | 4.11 mm | 18 AWG | Copper Tinned | Foil |
Belden Inc. | Aluminum | 100 % | 2 | Natural | Low Smoke Poly-Vinyl Chloride (LSPVC) | Multi-Conductor | Security Sound | Drain Wire Rip Cord | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | 152.4 m | 500 ft | 26 AWG | 7 | 300 VDC | 75 ░C | 0 °C | 0.162 in | 4.11 mm | 18 AWG | Copper Tinned | Foil |
Belden Inc. | Aluminum | 100 % | 2 | Violet | Low Smoke Poly-Vinyl Chloride (LSPVC) | Multi-Conductor | Security Sound | Drain Wire Rip Cord | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | 304.8 m | 1000 ft | 26 AWG | 7 | 300 VDC | 75 ░C | 0 °C | 0.162 in | 4.11 mm | 18 AWG | Copper Tinned | Foil |
Belden Inc. | Aluminum | 100 % | 2 | Gray | Low Smoke Poly-Vinyl Chloride (LSPVC) | Multi-Conductor | Security Sound | Drain Wire Rip Cord | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | 304.8 m | 1000 ft | 26 AWG | 7 | 300 VDC | 75 ░C | 0 °C | 0.162 in | 4.11 mm | 18 AWG | Copper Tinned | Foil |
Belden Inc. | Aluminum | 100 % | 2 | Black | Low Smoke Poly-Vinyl Chloride (LSPVC) | Multi-Conductor | Security Sound | Drain Wire Rip Cord | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | 304.8 m | 1000 ft | 26 AWG | 7 | 300 VDC | 75 ░C | 0 °C | 0.162 in | 4.11 mm | 18 AWG | Copper Tinned | Foil |
Belden Inc. | Aluminum | 100 % | 2 | Blue | Low Smoke Poly-Vinyl Chloride (LSPVC) | Multi-Conductor | Security Sound | Drain Wire Rip Cord | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | 304.8 m | 1000 ft | 26 AWG | 7 | 300 VDC | 75 ░C | 0 °C | 0.162 in | 4.11 mm | 18 AWG | Copper Tinned | Foil |
 Belden Inc. | Aluminum | 100 % | 2 | Violet | Low Smoke Poly-Vinyl Chloride (LSPVC) | Multi-Conductor | Security Sound | Drain Wire Rip Cord | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | 304.8 m | 1000 ft | 26 AWG | 7 | 300 VDC | 75 ░C | 0 °C | 0.162 in | 4.11 mm | 18 AWG | Copper Tinned | Foil |
Belden Inc. | Aluminum | 100 % | 2 | Yellow | Low Smoke Poly-Vinyl Chloride (LSPVC) | Multi-Conductor | Security Sound | Drain Wire Rip Cord | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | UL Style CMP | 0.381 mm | 0.015 in | 304.8 m | 1000 ft | 26 AWG | 7 | 300 VDC | 75 ░C | 0 °C | 0.162 in | 4.11 mm | 18 AWG | Copper Tinned | Foil |
