CCB200 Series
Manufacturer: XP Power
Beta
⌘K

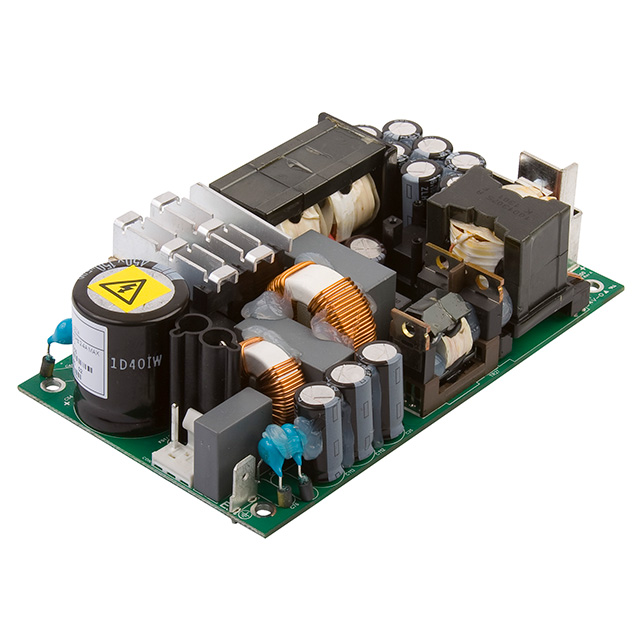

AC/DC CONVERTER 28V 199W
| Part | Minimum Load Required | Type | Voltage - Isolation | Applications | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Standard Number | Current - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Number of Outputs | Voltage - Output 1 | Approval Agency | Features | Mounting Type | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | Open Frame | 4000 V | ITE (Commercial) Medical | 199 W | 80 VAC | 264 VAC | 62368-1 | 7.1 A | 85 °C | -20 °C | 36.3 mm | 76.2 mm | 5 " | 127 mm | 1.43 in | 3 " | 1 | 28 V | CB TUV UL | Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 95 % | |
XP Power | Open Frame | 4000 V | ITE (Commercial) Medical | 200 Watts | 80 VAC | 264 VAC | 62368-1 | 13.3 A | 85 °C | -20 °C | 36.3 mm | 76.2 mm | 5 " | 127 mm | 1.43 in | 3 " | 1 | 15 V | CB TUV UL | Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 95 % | |
 XP Power | Open Frame | 4000 V | ITE (Commercial) Medical | 200 Watts | 80 VAC | 264 VAC | 62368-1 | 16.7 A | 85 °C | -20 °C | 36.3 mm | 76.2 mm | 5 " | 127 mm | 1.43 in | 3 " | 1 | 12 V | CB TUV UL | Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input | Chassis Mount | 95 % |
