EN3 Series

Catalog

EN3 HARSH ENVIRONMENT CABLE END, 3-PIN, FEMALE, SOLDER CUP, BULK

Part	Voltage Rating	Features	Shielding	Backshell Material, Plating	Insert Material	Current Rating (Amps)	Material Flammability Rating	Color	Orientation	Mounting Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Primary Material	Fastening Type	Connector Type	Contact Finish - Mating	Ingress Protection	Applications	Accessory Type	Material	For Use With/Related Products	Termination	Number of Positions	Mounting Feature	Assembly Configuration	1st Connector Number of Positions Loaded	1st Connector Type	Cable Type	Cable Material	1st Connector Mounting Type	1st Connector Number of Positions	1st Connector Gender	Length	Length	2nd Connector Type	Usage	Tool Type Feature	Tool Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]
SWITCHCRAFT/CONXALL EN3C3F16LX	250 VAC	Backshell Cable Clamp Coupling Nut	Unshielded	Thermoplastic	Elastomer	13 A	UL94 V-0	Black	Keyed	Free Hanging (In-Line)	Copper Alloy	-40 C	65 °C	5.84 mm	0.38 in	0.23 in	9.65 mm	Plastic	Bayonet Lock	Plug Female Sockets	Gold	IP66 IP68	General Purpose Instrumentation Marine Medical
SWITCHCRAFT/CONXALL EN3IPCAPX		Dust Tight Flame Retardant Waterproof																						Cap (Cover)	Thermoplastic	EN3® Series Panel Mount Connector
SWITCHCRAFT/CONXALL EN3C3F16CX	250 VAC	Backshell Cable Clamp Coupling Nut	Unshielded	Thermoplastic	Elastomer	13 A	UL94 V-0	Black	Keyed	Free Hanging (In-Line)	Copper Alloy	-40 C	65 °C	4.06 mm	0.265 in	0.16 "	6.73 mm	Plastic	Bayonet Lock	Plug Female Sockets	Gold	IP66 IP68	General Purpose Instrumentation Marine Medical				Crimp

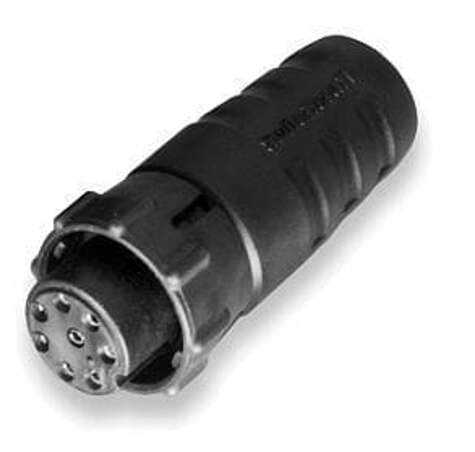

SWITCHCRAFT/CONXALL EN3C9F26SLX	250 VAC	Backshell Cable Clamp Coupling Nut	Unshielded	Thermoplastic	Elastomer	3 A	UL94 V-0	Black	Keyed	Free Hanging (In-Line)	Copper Alloy	-40 C	65 °C	5.84 mm	0.38 in	0.23 in	9.65 mm	Plastic	Bayonet Lock	Plug Female Sockets	Gold	IP66 IP68	General Purpose Instrumentation Marine Medical					9

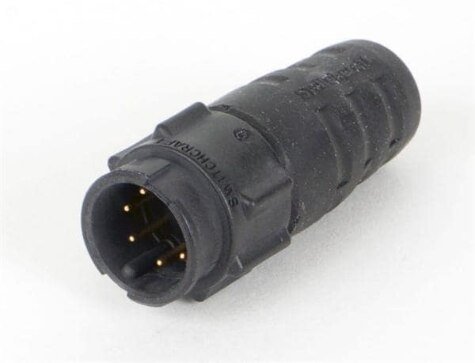

SWITCHCRAFT/CONXALL EN3L7MX	250 VAC	Backshell Cable Clamp	Unshielded	Thermoplastic	Elastomer	6.5 A	UL94 V-0	Black	Keyed	Free Hanging (In-Line)	Copper Alloy	-40 C	65 °C	4.06 mm	0.265 in	0.16 "	6.73 mm	Plastic	Bayonet Lock	Receptacle Male Pins	Gold	IP66 IP68	General Purpose Instrumentation Marine Medical					7
SWITCHCRAFT/CONXALL EN3P2F16CX	250 VAC		Unshielded		Elastomer	13 A	UL94 V-0	Black	Keyed	Panel Mount	Copper Alloy	-40 C	65 °C					Plastic	Bayonet Lock	Receptacle Female Sockets	Gold	IP66 IP68	General Purpose Instrumentation Marine Medical				Crimp	2	Bulkhead - Front Side Nut
SWITCHCRAFT/CONXALL CAEN3C3M07990			Unshielded					Black														IP68 - Dust Tight Waterproof								Standard	All	Receptacle	Round	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	3	Male Pins	2 m	6.56 ft	Wire Leads	Industrial Environments
SWITCHCRAFT/CONXALL EN3C13M26SX	250 VAC	Backshell Cable Clamp Coupling Nut	Unshielded	Thermoplastic	Elastomer	3 A	UL94 V-0	Black	Keyed	Free Hanging (In-Line)	Copper Alloy	-40 C	65 °C	4.06 mm	0.265 in	0.16 "	6.73 mm	Plastic	Bayonet Lock	Plug Male Pins	Gold	IP66 IP68	General Purpose Instrumentation Marine Medical					13
SWITCHCRAFT/CONXALL EN3CR																										Circular Contacts																Without Die Set	Hand Crimper	16 AWG	20 AWG
SWITCHCRAFT/CONXALL EN3C13F26SLX	250 VAC	Backshell Cable Clamp Coupling Nut	Unshielded	Thermoplastic	Elastomer	3 A	UL94 V-0	Black	Keyed	Free Hanging (In-Line)	Copper Alloy	-40 C	65 °C	5.84 mm	0.38 in	0.23 in	9.65 mm	Plastic	Bayonet Lock	Plug Female Sockets	Gold	IP66 IP68	General Purpose Instrumentation Marine Medical					13
