THD2048 Series
Manufacturer: Delta Electronics
Beta
⌘K

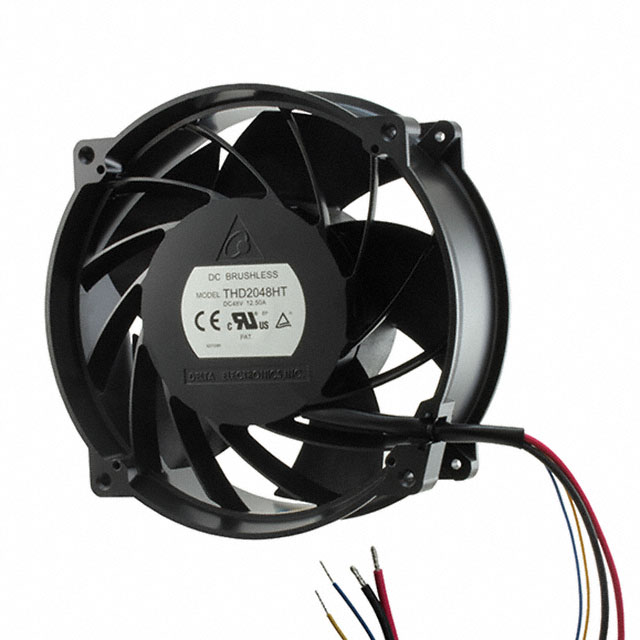

DC FAN AXIAL BALL BEARING 48V 36V TO 75V 1026.8CFM 78DB 208 X 70MM
| Part | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Current Rating (Amps) | Lifetime @ Temp. | Material - Blade | Weight | Weight | Static Pressure | Static Pressure | Size / Dimension | Size / Dimension [diameter] | Bearing Type | Air Flow | Air Flow | Termination | Width [x] | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Fan Type | Features | Power (Watts) | RPM | Approval Agency | Noise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 75 VDC | 36 VDC | Aluminum | 8 A | 70000 Hrs | Plastic | 1.6 kg | 3.5 lbs | 1232.2 Pa | 4.945 in H2O | Round | 200 mm | Ball | 28.75 m³/min | 1026.8 CFM | 4 Wire Leads | 70 mm | 48 VDC | 70 °C | -10 °C | Tubeaxial | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 384 W | 7400 RPM | CE cURus TUV | 78 dB(A) |
