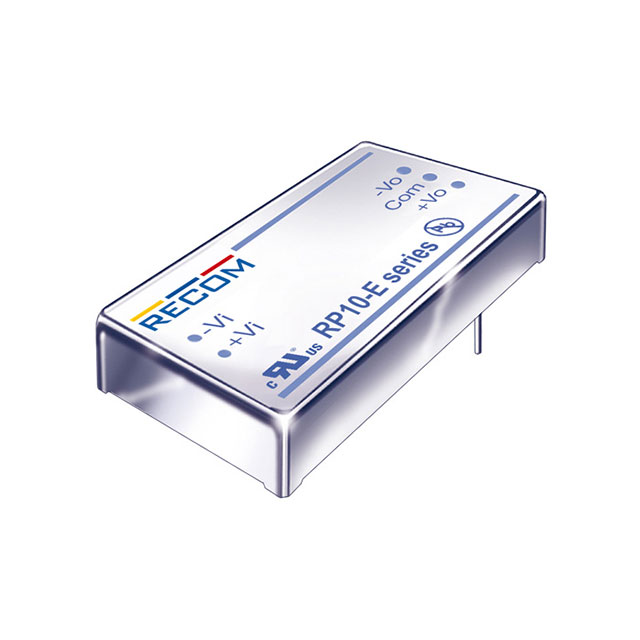

RP10-E Series

Isolated DC/DC Converters - Through Hole 10W DC/DC 1.6kV REG 2:1 9-18Vin 3.3Vout

Manufacturer: Recom Power

Catalog

Isolated DC/DC Converters - Through Hole 10W DC/DC 1.6kV REG 2:1 9-18Vin 3.3Vout

Catalog

Isolated DC/DC Converters - Through Hole 10W DC/DC 1.6kV REG 2:1 9-18Vin 3.3Vout

...

Part	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Mounting Type	Features	Current - Output (Max) [Max]	Voltage - Output 1	Number of Outputs	Voltage - Isolation	Applications	Efficiency	Type	Size / Dimension	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Control Features	Voltage - Output 2	Current - Output (Max)	Current - Output (Max) [Max]

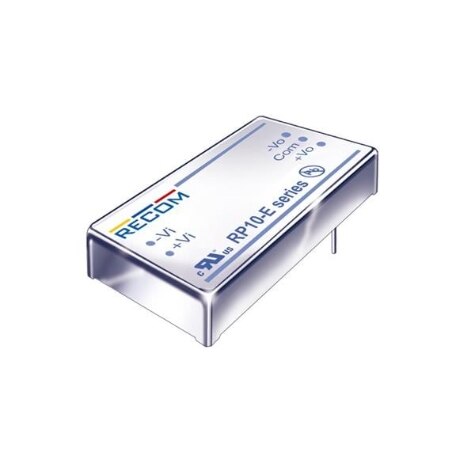

Recom Power RP10-123.3SE/P	10 W	9 V	18 V	Through Hole	OCP OVP Remote On/Off SCP	2 A	3.3 V	1	1.6 kV	ITE (Commercial)	80 %	Isolated Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	85 °C	-25 °C	6-DIP Module	Active High Enable
Recom Power RP10-1212SE/N-HC	10 W	9 V	18 V	Through Hole	OCP OVP Remote On/Off SCP	830 mA	12 V	1	1.6 kV	ITE (Commercial)		Isolated Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	85 °C	-25 °C	6-DIP Module	Active Low Enable
Recom Power RP10-2405DE/P/M1	10 W	18 V	36 V	Through Hole	OCP OVP Remote On/Off SCP		5 V	2	1.6 kV	ITE (Commercial)	80 %	Isolated Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	85 °C	-40 C	6-DIP Module	Active High Enable	-5 V	1 A
Recom Power RP10-2415SE	10 W	18 V	36 V	Through Hole	OCP OVP SCP	670 mA	15 V	1	1.6 kV	ITE (Commercial)	84 %	Isolated Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	85 °C	-25 °C	6-DIP Module
Recom Power RP10-2412SE/M1	10 W	18 V	36 V	Through Hole	OCP OVP SCP	830 mA	12 V	1	1.6 kV	ITE (Commercial)	84 %	Isolated Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	85 °C	-40 C	6-DIP Module
Recom Power RP10-2412SE/M1-HC	10 W	18 V	36 V	Through Hole	OCP OVP SCP	830 mA	12 V	1	1.6 kV	ITE (Commercial)	84 %	Isolated Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	85 °C	-40 C	6-DIP Module
Recom Power RP10-1212DE/M1-HC	10 W	9 V	18 V	Through Hole	OCP OVP SCP	416 mA	12 V	2	1.6 kV	ITE (Commercial)	83 %	Isolated Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	85 °C	-40 C	6-DIP Module		-12 V		416 mA
Recom Power RP10-4815SE/N/M1	10 W	36 V	75 V	Through Hole	OCP OVP Remote On/Off SCP	670 mA	15 V	1	1.6 kV	ITE (Commercial)	85 %	Isolated Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	85 °C	-40 C	6-DIP Module	Active Low Enable
Recom Power RP10-4805DE/P	10 W	36 V	75 V	Through Hole	OCP OVP Remote On/Off SCP		5 V	2	1.6 kV	ITE (Commercial)		Isolated Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	85 °C	-25 °C	6-DIP Module	Active High Enable	-5 V	1 A
Recom Power RP10-2412DE/N/M1	10 W	18 V	36 V	Through Hole	OCP OVP Remote On/Off SCP	416 mA	12 V	2	1.6 kV	ITE (Commercial)	84 %	Isolated Module	0.4 in 10.2 mm 25.4 mm 50.8 mm	85 °C	-40 C	6-DIP Module	Active Low Enable	-12 V		416 mA
