SC36-11 Series

Catalog

DISPLAY 7SEG 0.36" SGL RED 10DIP

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Color	Current - Test	Display Type	Common Pin	Millicandela Rating	Power Dissipation (Max) [Max]	Number of Characters	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Package / Case	Package / Case	Package / Case
Kingbright SC36-11SRWA	14 mm	8.5 mm	0.551 in	0.335 in	0.295 in	7.5 mm	Red	20 mA	7-Segment	Common Cathode	10 mcd	75 mw	1	1.85 V	9.14 mm	0.36 in	660 nm	10-DIP	0.2 in	5.08 mm

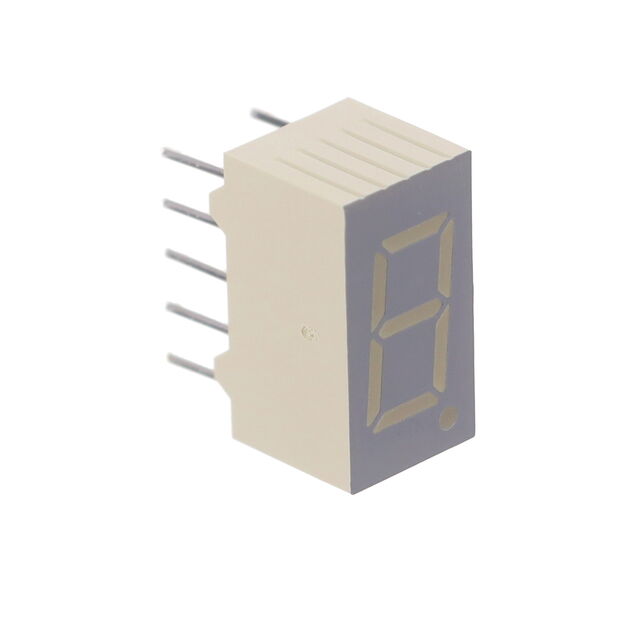

Kingbright SC36-11SURKWA	14 mm	8.5 mm	0.551 in	0.335 in	0.295 in	7.5 mm	Red	20 mA	7-Segment	Common Cathode	28 mcd	75 mw	1	1.95 V	9.14 mm	0.36 in	645 nm	10-DIP	0.2 in	5.08 mm
Kingbright SC36-11YWA	14 mm	8.5 mm	0.551 in	0.335 in	0.295 in	7.5 mm	Yellow	20 mA	7-Segment	Common Cathode	2.6 mcd	75 mw	1	2.1 V	9.14 mm	0.36 in	590 nm	10-DIP	0.2 in	5.08 mm
Kingbright SC36-11GWA	14 mm	8.5 mm	0.551 in	0.335 in	0.295 in	7.5 mm	Green	20 mA	7-Segment	Common Cathode	3.5 mcd	62.5 mW	1	2.2 V	9.14 mm	0.36 in	565 nm	10-DIP	0.2 in	5.08 mm
Kingbright SC36-11CGKWA	14 mm	8.5 mm	0.551 in	0.335 in	0.295 in	7.5 mm	Green	20 mA	7-Segment	Common Cathode	11 mcd	75 mw	1	2.1 V	9.14 mm	0.36 in		10-DIP	0.2 in	5.08 mm
Kingbright SC36-11EWA	14 mm	8.5 mm	0.551 in	0.335 in	0.295 in	7.5 mm	Red	20 mA	7-Segment	Common Cathode	2.1 mcd	75 mw	1	2 V	9.14 mm	0.36 in	627 nm	10-DIP	0.2 in	5.08 mm
