EMX-7T12 Series
Manufacturer: East Electronics
Beta
⌘K

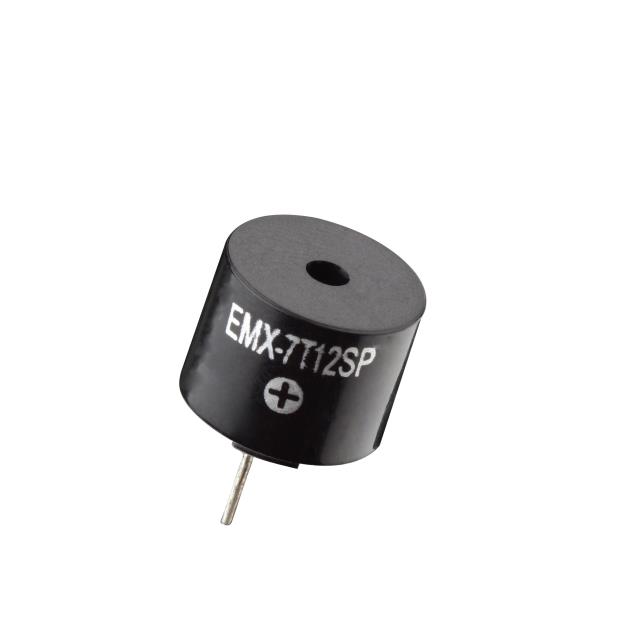

BUZZER 12V 12MM TH
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Current - Supply | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Mode | Sound Pressure Level (SPL) | Voltage - Rated | Frequency | Voltage Range [Max] | Voltage Range [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 East Electronics | Through Hole | 85 °C | -40 C | PC Pins | 30 mA | 10 mm | 0.394 in | 0.472 " | 12 mm | Continuous | 85 dB | 12 VDC | 2.3 kHz | 16 V | 8 V |
