HUM-868 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

MODULE HUM-PRO 868MHZ FHSS FM XCVR

Part	Modulation	Power - Output	Protocol	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting [Max]	Current - Transmitting [Min]	Current - Receiving	Sensitivity	Mounting Type	Antenna Type	Frequency	Package / Case	RF Family/Standard	Data Rate	Voltage - Supply [Max]	Voltage - Supply [Min]	Serial Interfaces	Frequency [Max]	Frequency [Min]

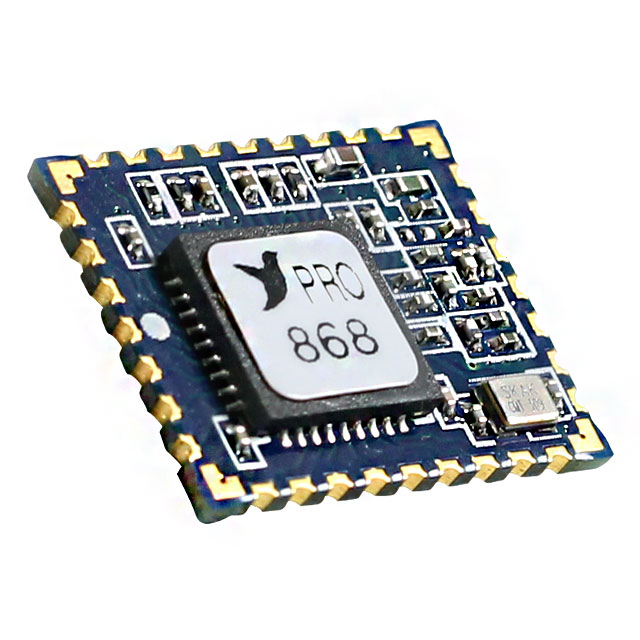

TE Connectivity AMP Connectors HUM-868-PRO	FHSS FSK MSK	9.5 dBm	Proprietary	85 °C	-40 C	40.5 mA	22 mA	23.5 mA	-100 dBm	Surface Mount	Antenna Not Included Castellation	868 MHz	32-SMD Module	General ISM < 1GHz	115.2 kbps	3.6 V	2 V	UART

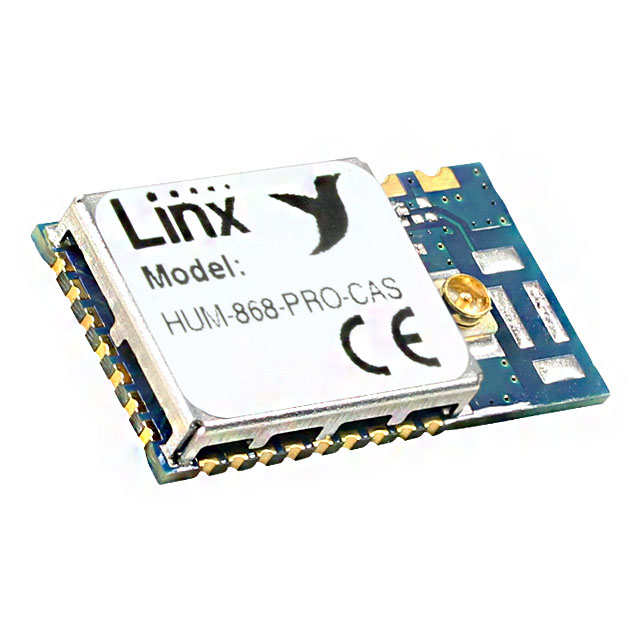

TE Connectivity AMP Connectors HUM-868-PRO-CAS	FHSS	8.5 dBm	Proprietary	85 °C	-40 C	40.5 mA	22 mA	23.5 mA	-100 dBm	Surface Mount	Antenna Not Included Castellation	868 MHz	27-SMD Module	General ISM < 1GHz	38.4 kbps	3.6 V	2 V	UART

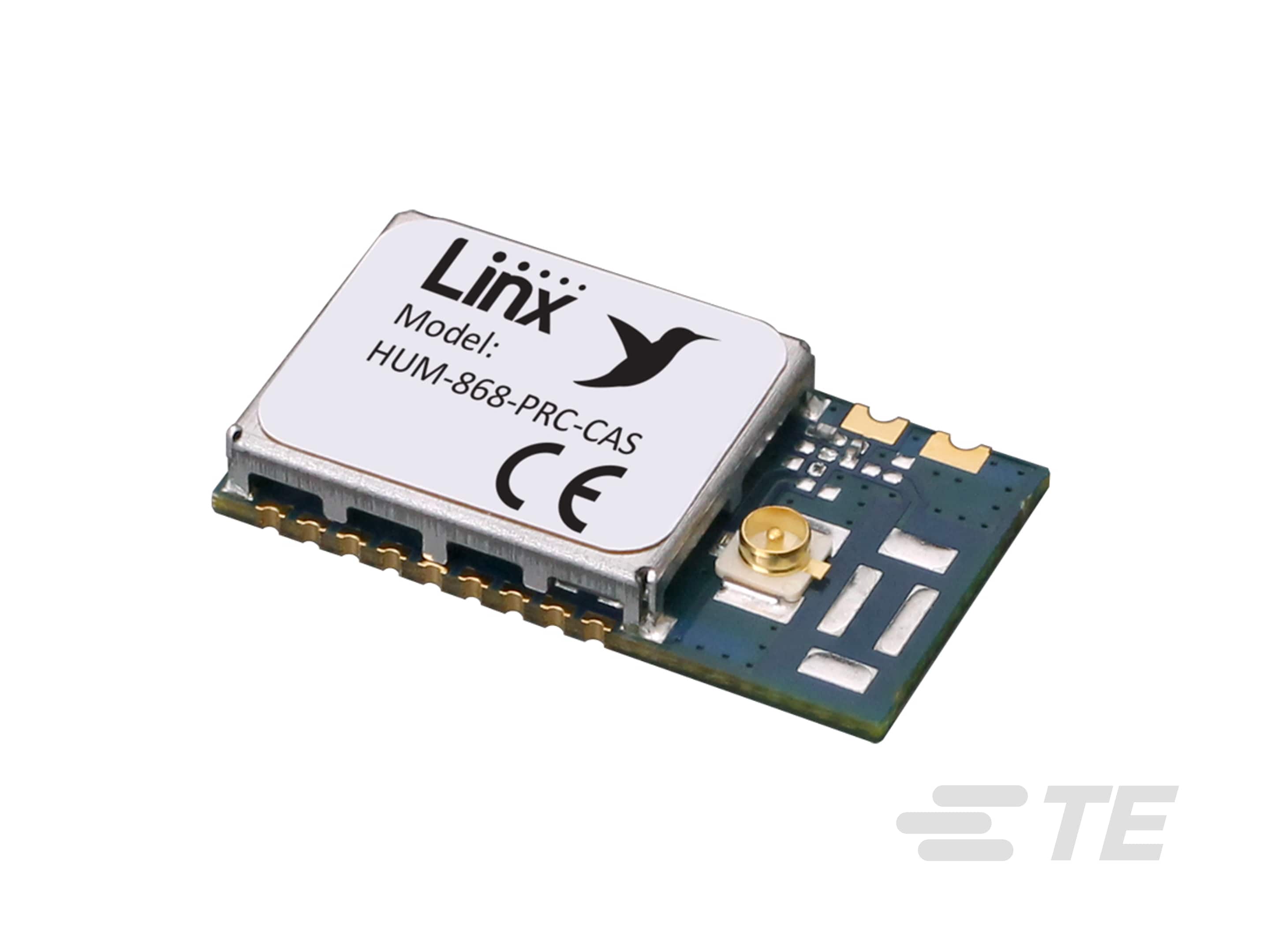

TE Connectivity AMP Connectors HUM-868-PRC-CAS	FHSS FSK	9.5 dBm		85 °C	-40 C	40.5 mA	22 mA	23.5 mA	-100 dBm	Surface Mount	Antenna Not Included Castellation		32-SMD Module	General ISM < 1GHz	115.2 kbps	3.6 V	2 V	UART	870 MHz	863 MHz

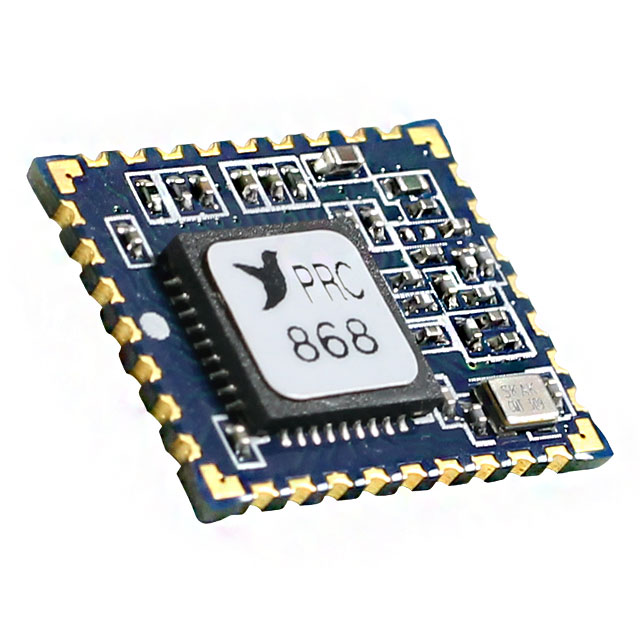

TE Connectivity AMP Connectors HUM-868-PRC	FHSS FSK	9.5 dBm		85 °C	-40 C	40.5 mA	22 mA	23.5 mA	-100 dBm	Surface Mount	Antenna Not Included Castellation		32-SMD Module	General ISM < 1GHz	115.2 kbps	3.6 V	2 V	UART	870 MHz	863 MHz

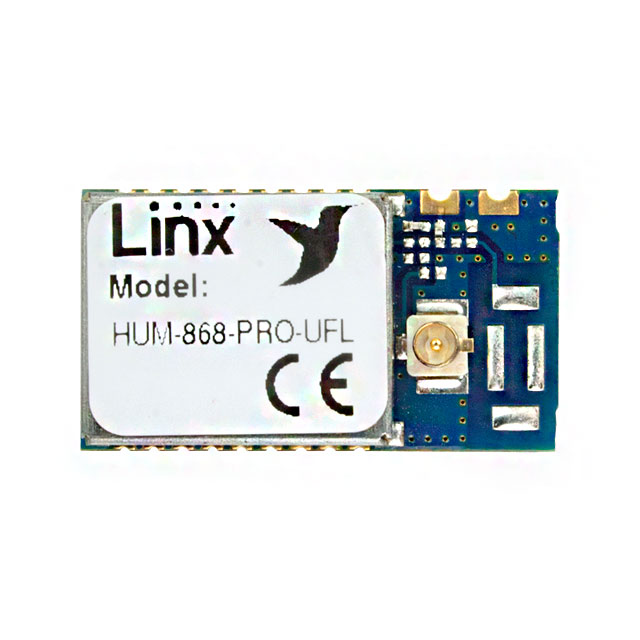

TE Connectivity AMP Connectors HUM-868-PRO-UFL	FHSS	8.5 dBm	Proprietary	85 °C	-40 C	40.5 mA	22 mA	23.5 mA	-100 dBm	Surface Mount	Antenna Not Included Castellation	868 MHz	27-SMD Module	General ISM < 1GHz	38.4 kbps	3.6 V	2 V	UART

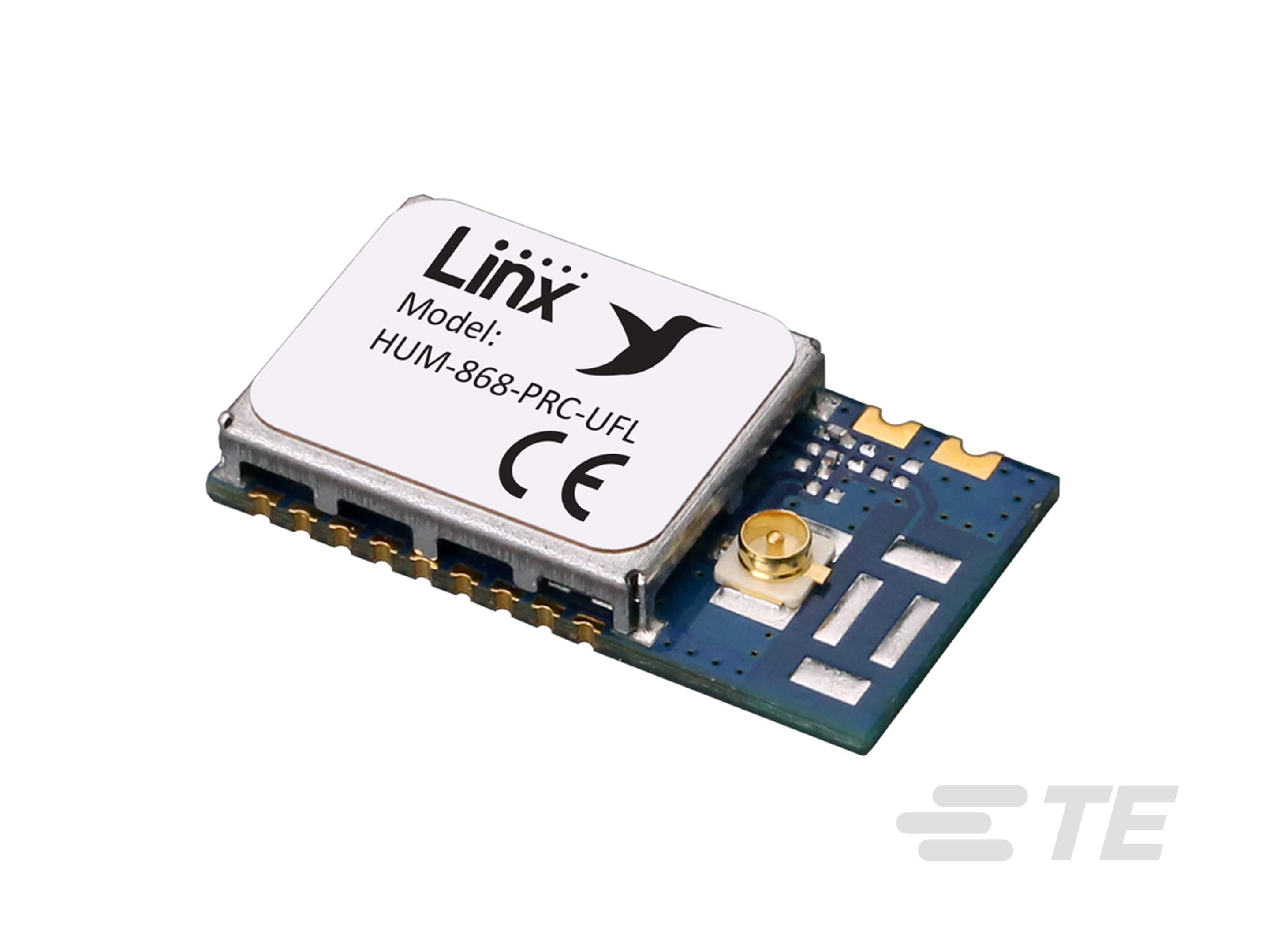

TE Connectivity AMP Connectors HUM-868-PRC-UFL	FHSS FSK	9.5 dBm		85 °C	-40 C	40.5 mA	22 mA	23.5 mA	-100 dBm	Surface Mount	Antenna Not Included U.FL		32-SMD Module	General ISM < 1GHz	115.2 kbps	3.6 V	2 V	UART	870 MHz	863 MHz
