TM-7 Series

Catalog

TRIMMER RESISTORS - THROUGH HOLE 500 W 7MM RND. MULTI TURN TOP ADJ., WIDE PIN SPACING

Part	Mounting Type	Tolerance	Adjustment Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Resistance	Number of Turns	Power (Watts)	Power (Watts)	Resistive Material	Termination Style	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Nidec Components Corporation TM-7EP501	Through Hole	10 %	Top Adjustment	7.2 mm	0.283 in	0.5 kOhms	3	0.5 W	0.5 W	Cermet	PC Pins	100 ppm/°C
Nidec Components Corporation TM-7EX201	Through Hole	10 %	Side Adjustment			200 Ohms	3	0.5 W	0.5 W	Cermet	PC Pins	100 ppm/°C	0.323 in	0.283 in	8.2 mm	7.2 mm
Nidec Components Corporation TM-7ES102	Through Hole	10 %	Side Adjustment			1000 Ohms	3	0.5 W	0.5 W	Cermet	PC Pins	100 ppm/°C	0.323 in	0.283 in	8.2 mm	7.2 mm
Nidec Components Corporation TM-7EP105	Through Hole	10 %	Top Adjustment	7.2 mm	0.283 in	1 MOhms	3	0.5 W	0.5 W	Cermet	PC Pins	100 ppm/°C
Nidec Components Corporation TM-7EX205	Through Hole	10 %	Side Adjustment			2 MOhms	3	0.5 W	0.5 W	Cermet	PC Pins	100 ppm/°C	0.323 in	0.283 in	8.2 mm	7.2 mm

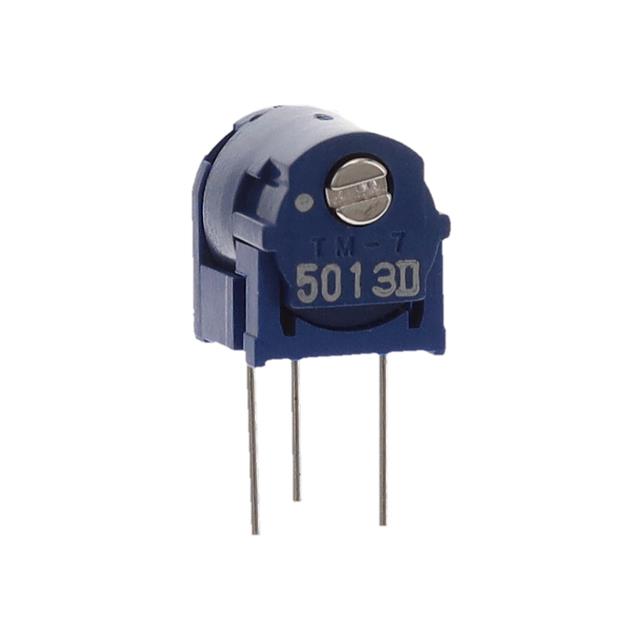

Nidec Components Corporation TM-7ES501	Through Hole	10 %	Side Adjustment			0.5 kOhms	3	0.5 W	0.5 W	Cermet	PC Pins	100 ppm/°C	0.323 in	0.283 in	8.2 mm	7.2 mm
Nidec Components Corporation TM-7EW105	Through Hole	10 %	Top Adjustment	7.2 mm	0.283 in	1 MOhms	3	0.5 W	0.5 W	Cermet	PC Pins	100 ppm/°C
