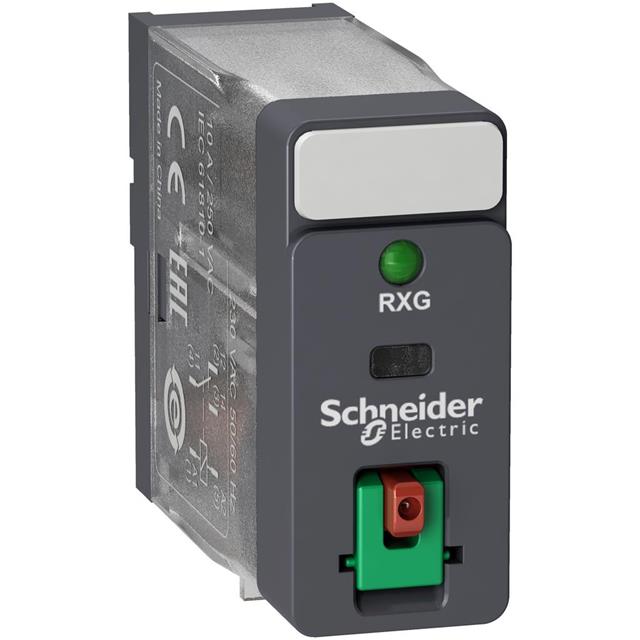

RXG12 Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K
POWER RELAY, SPDT, 6 VDC, 10 A, ZELIO RXG SERIES, SOCKET
| Part | Coil Resistance | Mounting Type | Switching Voltage [Max] | Approval Agency | Termination Style | Contact Rating (Current) | Contact Material | Must Release Voltage | Coil Insulation | Load - Max Switching | Coil Type | Contact Form | Coil Current | Release Time | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Features | Relay Type | Coil Voltage | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 68 Ohms | Chassis Mount | 30 VDC 250 VAC | CE CSA DNV-GL EAC UL | Plug In | 10 A | Silver Tin Oxide Indium Oxide (AgSnOInO) | 0.6 VDC | Class F | 300 W 2500 VA | Non Latching | SPDT (1 Form C) | 88.2 mA | 20 ms | 20 ms | 70 °C | -40 C | Lighted Indicator Test Button | General Purpose | ||
 SCHNEIDER ELECTRIC | 260 Ohms | Socketable | 30 VDC 250 VAC | CE CSA DNV-GL EAC UL | Plug In | 10 A | Silver Tin Oxide Indium Oxide (AgSnOInO) | 7.2 VAC | Class F | 300 W 2500 VA | Non Latching | SPDT (1 Form C) | 92.3 mA | 20 ms | 20 ms | 70 °C | -40 C | Lighted Indicator Test Button | General Purpose | 24 VAC | 19.2 VAC |
SCHNEIDER ELECTRIC | 4.4 kOhms | Chassis Mount | 30 VDC 250 VAC | CE CSA DNV-GL EAC UL | Plug In | 10 A | Silver Tin Oxide Indium Oxide (AgSnOInO) | 4.8 VDC | Class F | 300 W 2500 VA | Non Latching | SPDT (1 Form C) | 10.9 mA | 20 ms | 20 ms | 70 °C | -40 C | Lighted Indicator Test Button | General Purpose | 48 VDC | |
 SCHNEIDER ELECTRIC | 22.8 kOhms | Socketable | 30 VDC 250 VAC | CE CSA DNV-GL EAC UL | Plug In | 10 A | Silver Tin Oxide Indium Oxide (AgSnOInO) | 11 VDC | Class F | 300 W 2500 VA | Non Latching | SPDT (1 Form C) | 4.8 mA | 20 ms | 20 ms | 70 °C | -40 C | Lighted Indicator Test Button | General Purpose | 110 VDC | |
SCHNEIDER ELECTRIC | Socketable | 30 VDC 250 VAC | CE CSA DNV-GL EAC UL | Plug In | 10 A | Silver Tin Oxide Indium Oxide (AgSnOInO) | 1.2 VDC | 300 W 2500 VA | Non Latching | SPDT (1 Form C) | 20 ms | 20 ms | 70 °C | -40 C | Lighted Indicator Test Button | General Purpose | 12 VDC | ||||
 SCHNEIDER ELECTRIC | Socketable | 30 VDC 250 VAC | CE CSA DNV-GL EAC UL | Plug In | 10 A | Silver Tin Oxide Indium Oxide (AgSnOInO) | 69 VAC | 300 W 2500 VA | Non Latching | SPDT (1 Form C) | 20 ms | 20 ms | 70 °C | -40 C | Lighted Indicator Test Button | General Purpose | 230 VAC | 184 VAC | |||
 SCHNEIDER ELECTRIC | Socketable | 30 VDC 250 VAC | CE CSA DNV-GL EAC UL | Plug In | 10 A | Silver Tin Oxide Indium Oxide (AgSnOInO) | 36 VAC | 300 W 2500 VA | Non Latching | SPDT (1 Form C) | 20 ms | 20 ms | 70 °C | -40 C | Lighted Indicator Test Button | General Purpose | 120 VAC |
