RSL1P Series

Catalog

POWER RELAY, SPDT, 24 VDC, 6 A, RSL SERIES, SOCKET, DC

Part	Coil Resistance	Coil Voltage	Termination Style	Contact Material	Operate Time	Approval Agency	Mounting Type	Load - Max Switching	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Contact Rating (Current)	Coil Current	Must Release Voltage	Relay Type	Switching Voltage [Max]	Features	Coil Type	Contact Form	Must Operate Voltage
SCHNEIDER ELECTRIC RSL1PRBU	3.39 kOhms	24 VDC	Spring Terminal	Silver Tin Oxide (AgSnO)	12 ms	CSA GOST UL	DIN Rail	1662 VA	55 °C	-40 C	5 ms	6 A	7.1 mA	1.2 VDC	General Purpose	277 VAC	Lighted Indicator	Non Latching	SPDT (1 Form C)

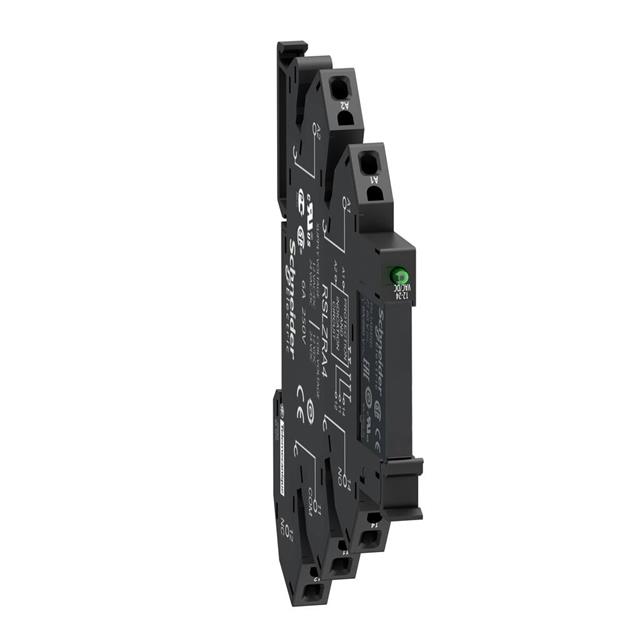

SCHNEIDER ELECTRIC RSL1PREU	10.6 kOhms	48 VDC	Screw Terminal	Silver Tin Oxide (AgSnO)	5 ms	CSA GOST UL	DIN Rail	1662 VA	55 °C	-40 C	12 ms	6 A	4.5 mA	2.4 VDC	General Purpose	277 VAC	Lighted Indicator	Non Latching	SPDT (1 Form C)	38.4 VDC
SCHNEIDER ELECTRIC RSL1PVBU	3.39 kOhms	24 VDC	Screw Terminal	Silver Tin Oxide (AgSnO)	12 ms	CSA GOST UL	DIN Rail	1662 VA	55 °C	-40 C	5 ms	6 A	7.1 mA	1.2 VDC	General Purpose	277 VAC	Lighted Indicator	Non Latching	SPDT (1 Form C)
SCHNEIDER ELECTRIC RSL1PVEU	10.6 kOhms	48 VDC	Screw Terminal	Silver Tin Oxide (AgSnO)	5 ms	CSA GOST UL	DIN Rail	1662 VA	55 °C	-40 C	12 ms	6 A	4.5 mA	2.4 VDC	General Purpose	277 VAC	Lighted Indicator	Non Latching	SPDT (1 Form C)	38.4 VDC
SCHNEIDER ELECTRIC RSL1PVPU	20.5 kOhms	60 VDC	Screw Terminal	Silver Tin Oxide (AgSnO)	5 ms	CSA GOST UL	DIN Rail	1662 VA	70 °C	-40 C	20 ms	6 A	2.9 mA	3 VDC	General Purpose	277 VAC	Lighted Indicator	Non Latching	SPDT (1 Form C)	42 VDC
SCHNEIDER ELECTRIC RSL1PVFU	20.5 kOhms	60 VDC	Screw Terminal	Silver Tin Oxide (AgSnO)	12 ms	CSA GOST UL	DIN Rail	1662 VA	70 °C	-40 C	20 ms	6 A	2.9 mA	3 VDC	General Purpose	277 VAC	Lighted Indicator	Non Latching	SPDT (1 Form C)
SCHNEIDER ELECTRIC RSL1PRFU	20.5 kOhms	60 VDC	Spring Terminal	Silver Tin Oxide (AgSnO)	12 ms	CSA GOST UL	DIN Rail	1662 VA	70 °C	-40 C	20 ms	6 A	2.9 mA	3 VDC	General Purpose	277 VAC	Lighted Indicator	Non Latching	SPDT (1 Form C)
