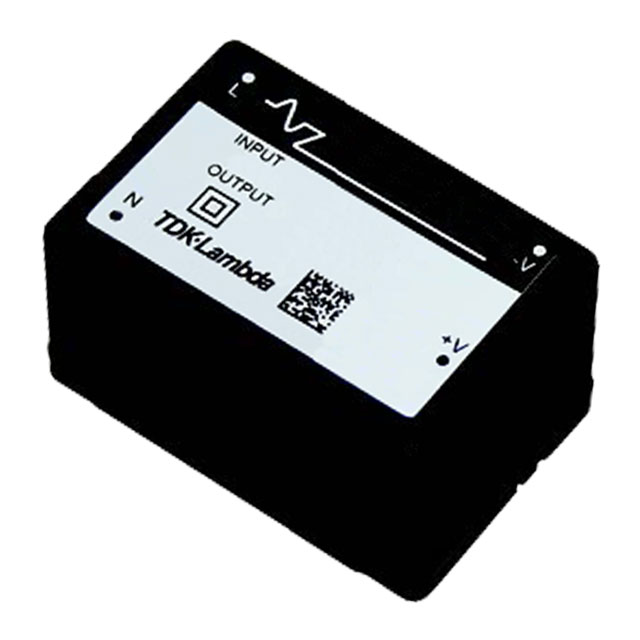

KWS5A Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC CONVERTER 24V 5W
| Part | Line Regulation | Load Regulation | Voltage - Output 1 | Number of Outputs | Mounting Type | Type | Current - Output (Max) [Max] | Efficiency | Power (Watts) | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Applications | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Features | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 150 mV | 96 mV | 24 V | 1 | Through Hole | Enclosed | 220 mA | 77 % | 5 W | CE | 85 °C | -10 °C | 4-DIP Module | ITE (Commercial) | 0.85 " | 1.5 in | 38.1 mm | 21.5 mm | 1 " | 25.4 mm | Universal Input | 85 VAC 120 VDC | 265 VAC 370 VDC |
 TDK Corporation | 60 mV | 120 mV | 15 V | 1 | Through Hole | Enclosed | 350 mA | 75 % | 5 W | CE | 85 °C | -10 °C | 4-DIP Module | ITE (Commercial) | 0.85 " | 1.5 in | 38.1 mm | 21.5 mm | 1 " | 25.4 mm | Universal Input | 85 VAC 120 VDC | 265 VAC 370 VDC |
