ATE2N Series

Catalog

SWITCH TOGGLE DPDT 50MA 48V

Part	Electrical Life	Mounting Type	Illumination	Features	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Circuit	Voltage Rating - AC	Voltage Rating - DC	Bushing Thread	Termination Style	Current Rating (Amps)	Actuator Type
Nidec Components Corporation ATE2N-5M3-10-Z	50000 Cycles	Right Angle Through Hole	Non-Illuminated	Washable	On-On	85 °C	-20 ░C	6 mm	DPDT	48 V	48 V	Unthreaded	PC Pin	50 mA	Standard Round

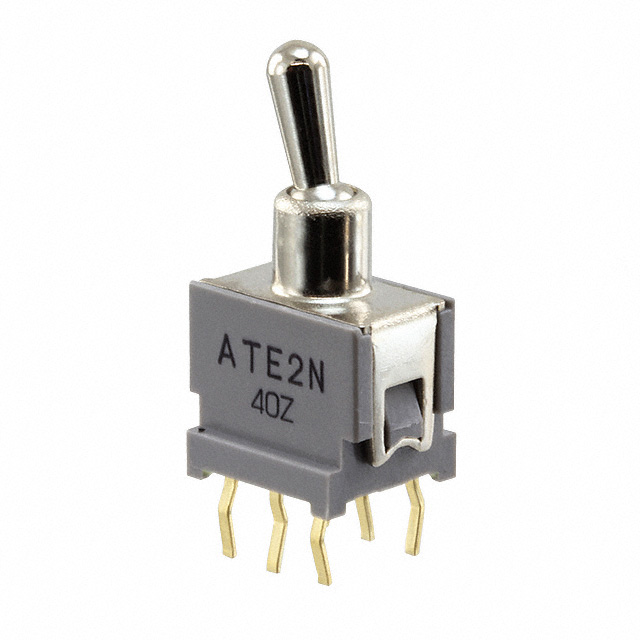

Nidec Components Corporation ATE2N-2M3-10-Z	50000 Cycles	Through Hole	Non-Illuminated	Washable	On-On	85 °C	-20 ░C	6 mm	DPDT	48 V	48 V	Unthreaded	PC Pin	50 mA	Standard Round

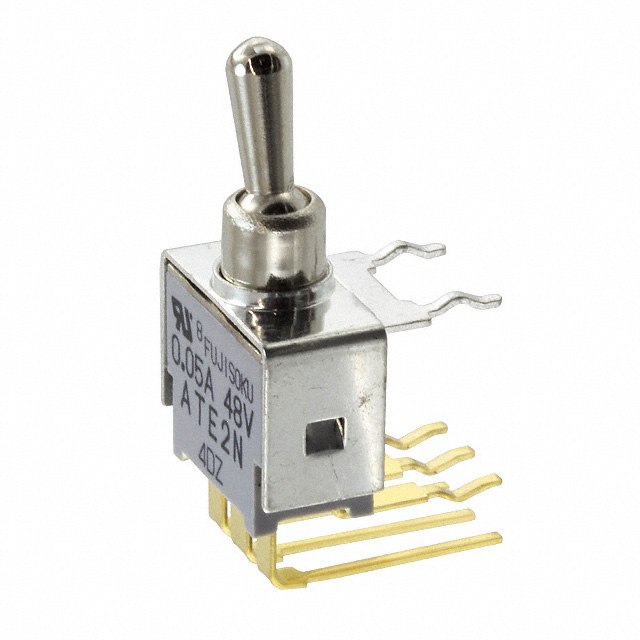

Nidec Components Corporation ATE2N-6M3-10-Z	50000 Cycles	Right Angle Through Hole	Non-Illuminated	Washable	On-On	85 °C	-20 ░C	6 mm	DPDT	48 V	48 V	Unthreaded	PC Pin	50 mA	Standard Round
