ZWS75BAF Series

Catalog

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 75 W, 15 V

Part	Current - Output 1	Voltage - Output 1	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Applications	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Type	Voltage - Isolation	Number of Outputs	Features	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)
TDK Corporation ZWS75BAF-15/A	5 A	15 V	86 %	33 mm	1.3 in	150 mm	50 mm	5.9 "	1.97 in	ITE (Commercial)	CE	265 VAC	85 VAC	Enclosed	3000 V	1	Adjustable Output PFC Universal Input	Chassis Mount	70 °C	-10 °C	75 W

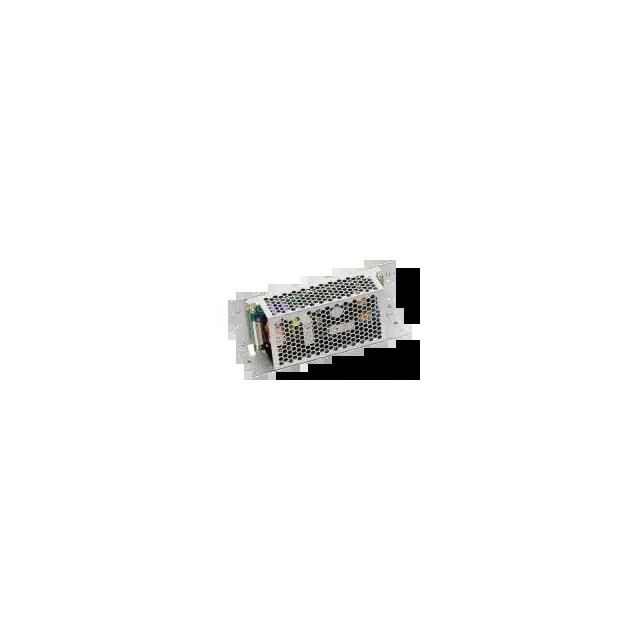

TDK Corporation ZWS75BAF-12/A	6.3 A	12 V	85 %	33 mm	1.3 in	150 mm	50 mm	5.9 "	1.97 in	ITE (Commercial)	CE	265 VAC	85 VAC	Enclosed	3000 V	1	Adjustable Output PFC Universal Input	Chassis Mount	70 °C	-10 °C	75 W
TDK Corporation ZWS75BAF-5/CO2	15 A	5 V	84 %	33 mm	1.3 in	150 mm	50 mm	5.9 "	1.97 in	ITE (Commercial)	CE	265 VAC	85 VAC	Open Frame Conformal Coated	3000 V	1	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Chassis Mount	70 °C	-10 °C	75 W

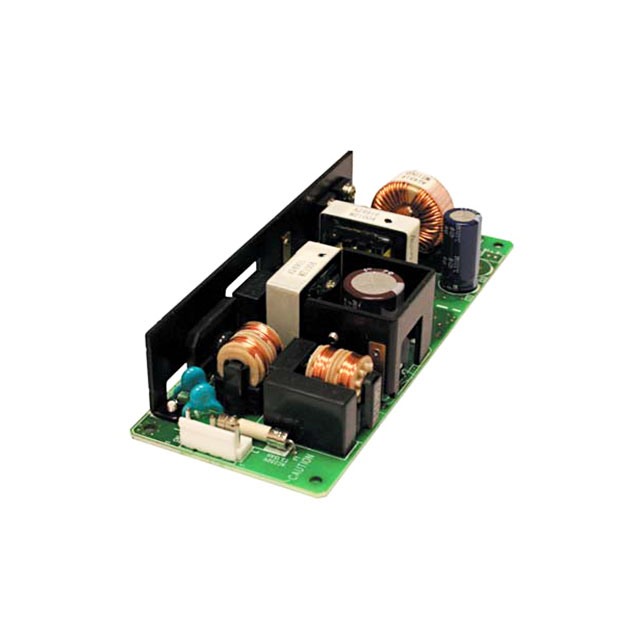

TDK Corporation ZWS75BAF-5/L	15 A	5 V	84 %	33 mm	1.3 in	150 mm	50 mm	5.9 "	1.97 in	ITE (Commercial)	CE	265 VAC	85 VAC	Open Frame	3000 V	1	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Chassis Mount	70 °C	-10 °C	75 W
TDK Corporation ZWS75BAF-5/A	15 A	5 V	84 %	33 mm	1.3 in	150 mm	50 mm	5.9 "	1.97 in	ITE (Commercial)	CE	265 VAC	85 VAC	Enclosed	3000 V	1	Adjustable Output PFC Universal Input	Chassis Mount	70 °C	-10 °C	75 W
TDK Corporation ZWS75BAF-12/CO2	6.3 A	12 V	85 %	33 mm	1.3 in	150 mm	50 mm	5.9 "	1.97 in	ITE (Commercial)	CE	265 VAC	85 VAC	Open Frame Conformal Coated	3000 V	1	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Chassis Mount	70 °C	-10 °C	75 W
TDK Corporation ZWS75BAF-15/L	5 A	15 V	86 %	33 mm	1.3 in	150 mm	50 mm	5.9 "	1.97 in	ITE (Commercial)	CE	265 VAC	85 VAC	Open Frame	3000 V	1	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Chassis Mount	70 °C	-10 °C	75 W
TDK Corporation ZWS75BAF-48/CO2	1.6 A	48 V	88 %	33 mm	1.3 in	150 mm	50 mm	5.9 "	1.97 in	ITE (Commercial)	CE	265 VAC	85 VAC	Open Frame Conformal Coated	3000 V	1	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Chassis Mount	70 °C	-10 °C	75 W
TDK Corporation ZWS75BAF-24/A	3.2 A	24 V	87 %	33 mm	1.3 in	150 mm	50 mm	5.9 "	1.97 in	ITE (Commercial)	CE	265 VAC	85 VAC	Enclosed	3000 V	1	Adjustable Output PFC Universal Input	Chassis Mount	70 °C	-10 °C	75 W
TDK Corporation ZWS75BAF-3/L	15 A	3.3 V	78 %	33 mm	1.3 in	150 mm	50 mm	5.9 "	1.97 in	ITE (Commercial)	CE	265 VAC	85 VAC	Open Frame	3000 V	1	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Chassis Mount	70 °C	-10 °C	75 W
