A9TS21 Series

Catalog

SWITCH TOGGLE DPDT 100MA 28V

Part	Electrical Life	Current Rating (Amps)	Actuator Type	Termination Style	Ingress Protection	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - DC	Bushing Thread	Illumination	Features	Circuit	Actuator Length [x]	Mounting Type
Omron Electronics Inc-EMC Div A9TS21-0011	50000 Cycles	100 mA	Standard Round	PC Pin	IP64 - Dust Tight Water Resistant	28 V	80 °C	-20 ░C	On-On	28 V	Unthreaded	Non-Illuminated	Sealed - Flux Protection	DPDT	3.8 mm	Through Hole
Omron Electronics Inc-EMC Div A9TS210013	50000 Cycles	100 mA	Standard Round	PC Pin	IP64 - Dust Tight Water Resistant	28 V	80 °C	-20 ░C	On-On	28 V	Unthreaded	Non-Illuminated	Sealed - Flux Protection	DPDT	3.8 mm	Right Angle Through Hole Vertical

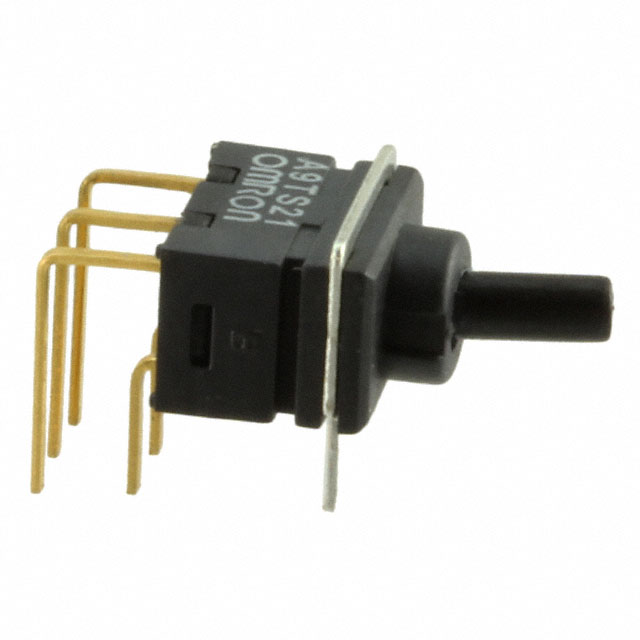

Omron Electronics Inc-EMC Div A9TS21-0012	50000 Cycles	100 mA	Standard Round	PC Pin	IP64 - Dust Tight Water Resistant	28 V	80 °C	-20 ░C	On-On	28 V	Unthreaded	Non-Illuminated	Sealed - Flux Protection	DPDT	3.8 mm	Right Angle Through Hole
