FP50R12 Series

Manufacturer: INFINEON

Catalog

MOD IGBT LOW PWR ECONO2-4

Part	Supplier Device Package	Input	Input Capacitance (Cies) @ Vce	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Configuration	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	IGBT Type	Current - Collector (Ic) (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Vce(on) (Max) @ Vge, Ic	Vce(on) (Max) @ Vge, Ic [Max]

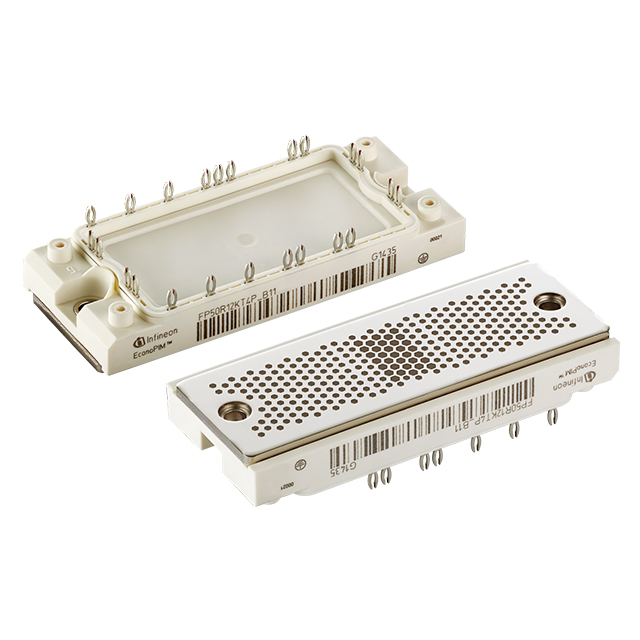

INFINEON FP50R12KT4PB11BPSA1
INFINEON FP50R12N2T4PB81BPSA2

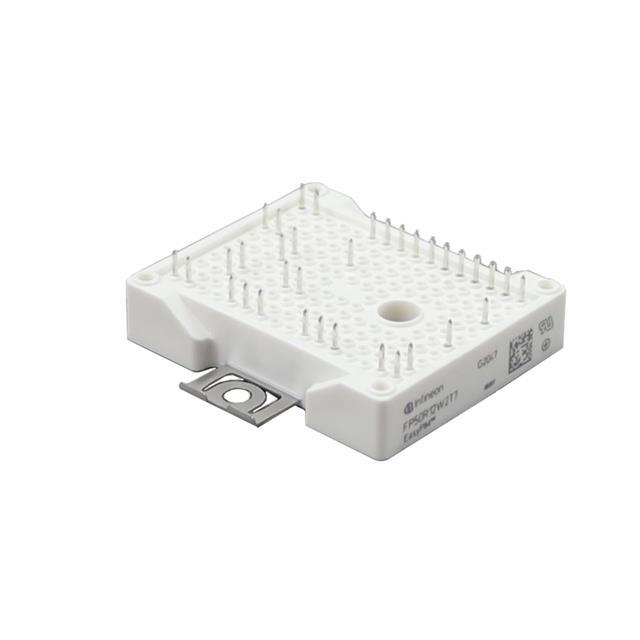

INFINEON FP50R12W2T7BPSA1	AG-EASY2B	Three Phase Bridge Rectifier	11100 pF	8 µA	20 mW	Three Phase Inverter	Chassis Mount	1200 V	Trench Field Stop	50 A	Module	175 °C	-40 °C

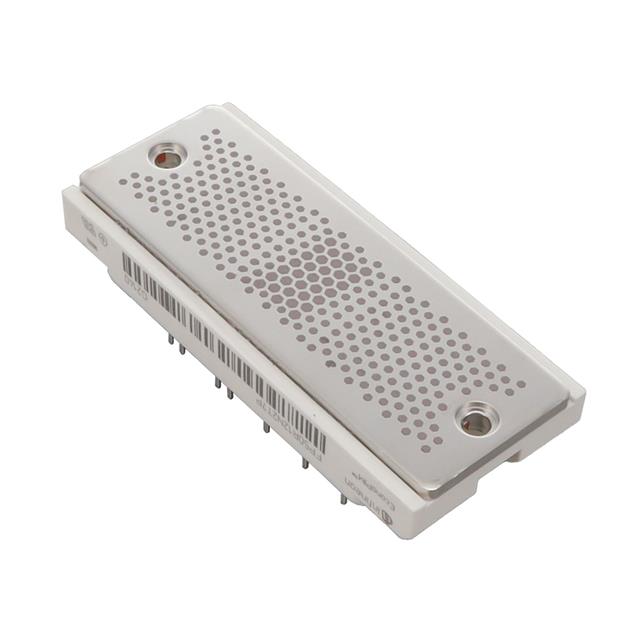

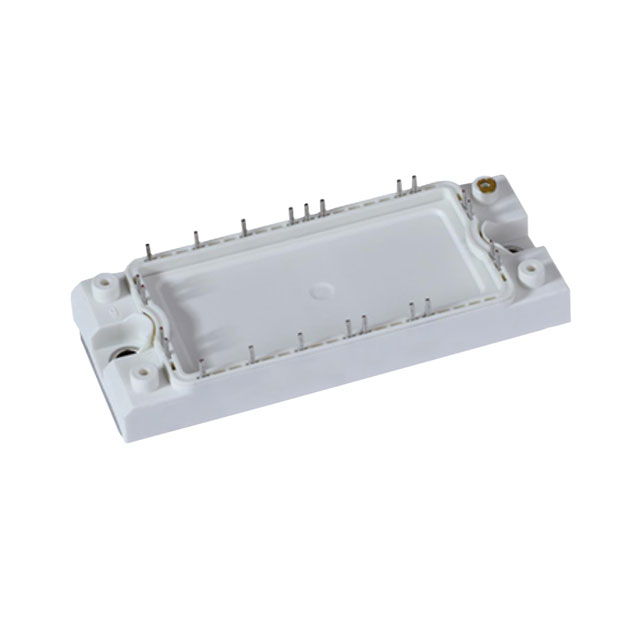

INFINEON FP50R12N2T7PBPSA1	AG-ECONO2B	Three Phase Bridge Rectifier	11100 pF	4 µA	20 mW	Three Phase Inverter	Chassis Mount	1200 V	Trench Field Stop	50 A	Module	175 °C	-40 °C	1.85 V
INFINEON FP50R12W2T7B11BOMA1	AG-EASY2B-2	Three Phase Bridge Rectifier	11100 pF	8 µA	20 mW	Three Phase Inverter	Chassis Mount	1200 V	Trench Field Stop	50 A	Module	175 °C	-40 °C		1.5 V
INFINEON FP50R12N2T7BPSA1	AG-ECONO2B	Three Phase Bridge Rectifier	11100 pF	10 µA	20 mW	Three Phase Inverter	Chassis Mount	1200 V	Trench Field Stop	50 A	Module	175 °C	-40 °C		1.5 V

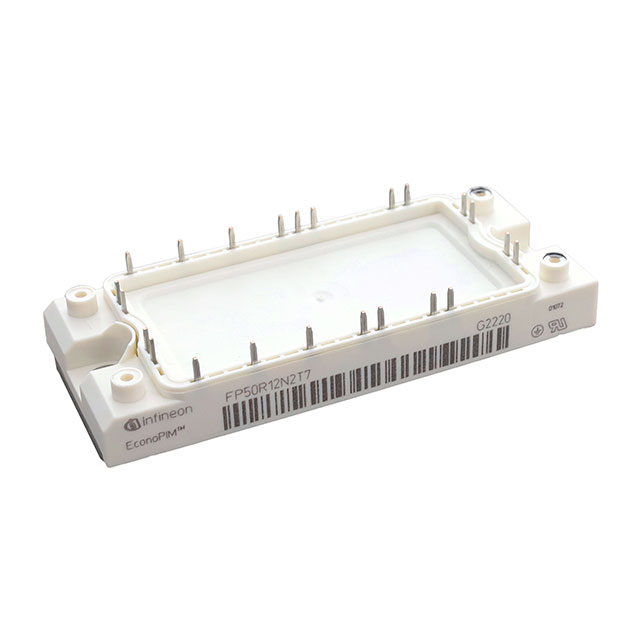

INFINEON FP50R12N2T7BPSA2	AG-ECONO2B	Three Phase Bridge Rectifier	11100 pF	10 µA	20 mW	Three Phase Inverter	Chassis Mount	1200 V	Trench Field Stop	50 A	Module	175 °C	-40 °C		1.5 V
INFINEON FP50R12N2T7B11BPSA2	AG-ECONO2B	Three Phase Bridge Rectifier	11100 pF	10 µA	20 mW	Three Phase Inverter	Chassis Mount	1200 V	Trench Field Stop	50 A	Module	175 °C	-40 °C		1.5 V

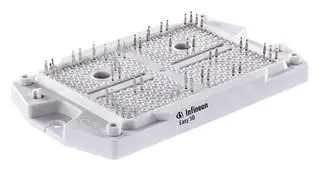

INFINEON FP50R12W3T7B11BPSA1	Module	Three Phase Bridge Rectifier	6.62 nF 25 V	13 µA	20 mW	Three Phase Inverter	Chassis Mount	1200 V	Trench Field Stop	50 A	Module	175 °C	-40 °C		1.8 V
INFINEON FP50R12N2T4B16BOSA1
