30334 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

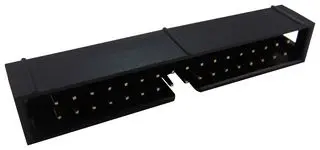

CONN SHROUDED HEADER (4 SIDES) HDR 34 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BOX
| Part | Contact Finish Thickness - Post | Features | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Material | Contact Finish Thickness - Mating | Contact Length - Mating | Contact Length - Mating | Style | Contact Length - Post [custom] | Contact Length - Post | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Shape | Insulation Height | Insulation Height | Contact Finish - Post | Mounting Type | Contact Type | Insulation Color | Number of Positions [custom] | Termination | Contact Material | Number of Rows [custom] | Fastening Type | Connector Type | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | Flash | Keying Slot | UL94 V-0 | -55 C | 105 ░C | Gold | 0.1 in | 2.54 mm | Glass Filled Polybutylene Terephthalate (PBT) Polyester | Flash | 6 mm | 0.236 in | Board to Board Cable | 0.11 in | 2.79 mm | 0.1 " | 2.54 mm | All | Square | 9.3 mm | 0.366 " | Gold | Through Hole | Male Pin | Black | 34 | Solder | Brass | 2 | Push-Pull | Header | Shrouded - 4 Wall |
