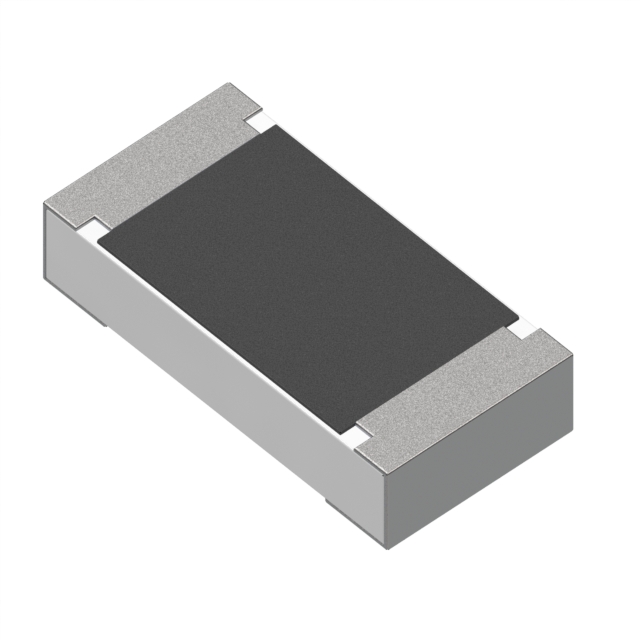

RQ73C2A Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

SMD CHIP RESISTOR, 768 OHM, ± 0.1%, 200 MW, 0805 [2012 METRIC], THIN FILM

...

Part	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Supplier Device Package	Package / Case	Features	Composition	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Number of Terminations [custom]	Power (Watts)	Power (Watts)	Resistance	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors RQ73C2A768RBTD	AEC-Q200	2 mm	1.25 mm	0.049 "	0.079 in	0.1 %	0805	0805	Anti-Sulfur Automotive AEC-Q200	Thin Film	0.026 in	0.65 mm	2	0.2 W	0.2 W	768 Ohms	10 ppm/°C	155 C	-55 C
TE Connectivity AMP Connectors RQ73C2A1K74BTD	AEC-Q200	2 mm	1.25 mm	0.049 "	0.079 in	0.1 %	0805	0805	Anti-Sulfur Automotive AEC-Q200	Thin Film	0.026 in	0.65 mm	2	0.2 W	0.2 W	1.74 kOhms	10 ppm/°C	155 C	-55 C
TE Connectivity AMP Connectors RQ73C2A576RBTD	AEC-Q200	2 mm	1.25 mm	0.049 "	0.079 in	0.1 %	0805	0805	Anti-Sulfur Automotive AEC-Q200	Thin Film	0.026 in	0.65 mm	2	0.2 W	0.2 W	576 Ohms	10 ppm/°C	155 C	-55 C
TE Connectivity AMP Connectors RQ73C2A47K5BTD	AEC-Q200	2 mm	1.25 mm	0.049 "	0.079 in	0.1 %	0805	0805	Anti-Sulfur Automotive AEC-Q200	Thin Film	0.026 in	0.65 mm	2	0.2 W	0.2 W	47500 Ohms	10 ppm/°C	155 C	-55 C
TE Connectivity AMP Connectors RQ73C2A1K54BTD	AEC-Q200	2 mm	1.25 mm	0.049 "	0.079 in	0.1 %	0805	0805	Anti-Sulfur Automotive AEC-Q200	Thin Film	0.026 in	0.65 mm	2	0.2 W	0.2 W	1.54 kOhms	10 ppm/°C	155 C	-55 C
TE Connectivity AMP Connectors RQ73C2A162RBTD	AEC-Q200	2 mm	1.25 mm	0.049 "	0.079 in	0.1 %	0805	0805	Anti-Sulfur Automotive AEC-Q200	Thin Film	0.026 in	0.65 mm	2	0.2 W	0.2 W	162 Ohms	10 ppm/°C	155 C	-55 C
TE Connectivity AMP Connectors RQ73C2A1K37BTD	AEC-Q200	2 mm	1.25 mm	0.049 "	0.079 in	0.1 %	0805	0805	Anti-Sulfur Automotive AEC-Q200	Thin Film	0.026 in	0.65 mm	2	0.2 W	0.2 W	1.37 kOhms	10 ppm/°C	155 C	-55 C
TE Connectivity AMP Connectors RQ73C2A412RBTD	AEC-Q200	2 mm	1.25 mm	0.049 "	0.079 in	0.1 %	0805	0805	Anti-Sulfur Automotive AEC-Q200	Thin Film	0.026 in	0.65 mm	2	0.2 W	0.2 W	412 Ohms	10 ppm/°C	155 C	-55 C
TE Connectivity AMP Connectors RQ73C2A7K87BTD	AEC-Q200	2 mm	1.25 mm	0.049 "	0.079 in	0.1 %	0805	0805	Anti-Sulfur Automotive AEC-Q200	Thin Film	0.026 in	0.65 mm	2	0.2 W	0.2 W	7.87 kOhms	10 ppm/°C	155 C	-55 C
TE Connectivity AMP Connectors RQ73C2A48R7BTD	AEC-Q200	2 mm	1.25 mm	0.049 "	0.079 in	0.1 %	0805	0805	Anti-Sulfur Automotive AEC-Q200	Thin Film	0.026 in	0.65 mm	2	0.2 W	0.2 W	48.7 Ohms	10 ppm/°C	155 C	-55 C
