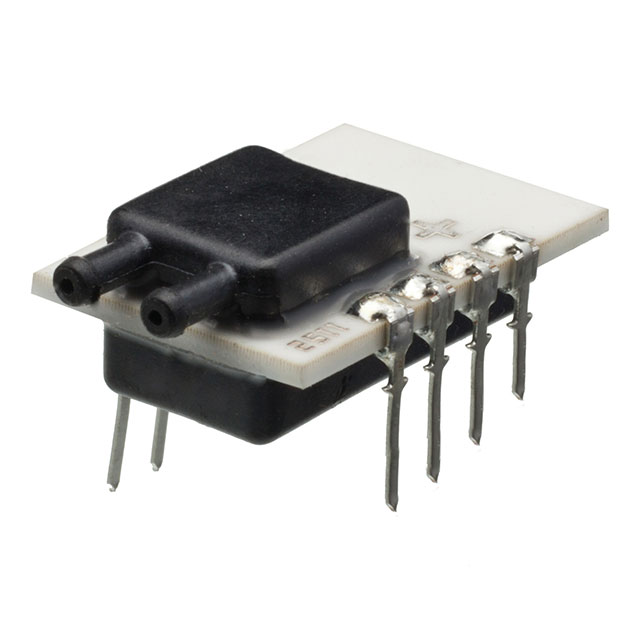

P1J-25 Series
Manufacturer: Sensata-Crydom
Beta
⌘K
SENSOR 0.36PSID 0.08" 14BIT
| Part | Features | Port Size | Port Size | Port Size | Operating Pressure | Operating Pressure | Termination Style | Maximum Pressure | Maximum Pressure | Accuracy | Output Type | Pressure Type | Output | Port Style | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Package / Case | Package / Case | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | Amplified Output Temperature Compensated | 0.08 " | Dual Male Tube | 1.92 mm | 0.36 PSI | 2.5 kPa | PC Pin | 1.02 PSI | 7 kPa | 0.25 % | Digital - I2C | Differential | 14 b | Barbed | 85 °C | -20 ░C | 5.5 V | 2.7 V | Through Hole | 8-DIP (0.524" 13.30mm) Dual Ports Same Side | 0.524 in 13.3 mm | Board Mount |
 Sensata-Crydom | Amplified Output Temperature Compensated | 0.08 " | Dual Male Tube | 1.92 mm | 0.36 PSI | 2.5 kPa | PC Pin | 1.02 PSI | 7 kPa | 0.25 % | SPI | Differential | 14 b | Barbed | 85 °C | -20 ░C | 5.5 V | 2.7 V | Through Hole | 8-DIP (0.524" 13.30mm) Dual Ports Same Side | 0.524 in 13.3 mm | Board Mount |
