DR Series

Solid State Relays - Industrial Mount SOLID STATE RELAY 24-280 VAC

Manufacturer: Eaton - Electronics Division

Catalog

Solid State Relays - Industrial Mount SOLID STATE RELAY 24-280 VAC

Catalog

Solid State Relays - Industrial Mount SOLID STATE RELAY 24-280 VAC

Part	Material - Core	Type	Inductance	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Shielding	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Rating (Amps)	Current - Saturation (Isat)	DC Resistance (DCR)	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]

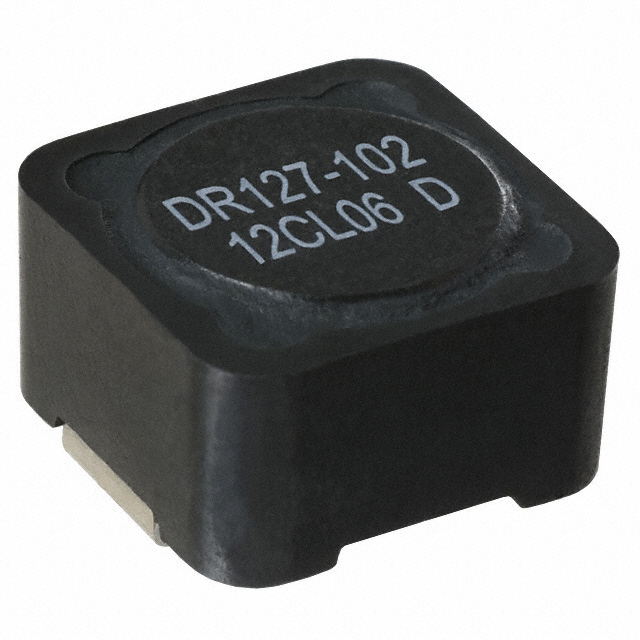

Eaton - Electronics Division DR127-102-R	Ferrite	Drum Core Wirewound	1 mH	100 kHz	125 °C	-40 C	Nonstandard	Shielded	Surface Mount	8 mm	0.315 in	0.61 A	1.14 A	1.66 Ohm	20 %	12.5 mm	0.492 "	12.5 mm	0.492 "

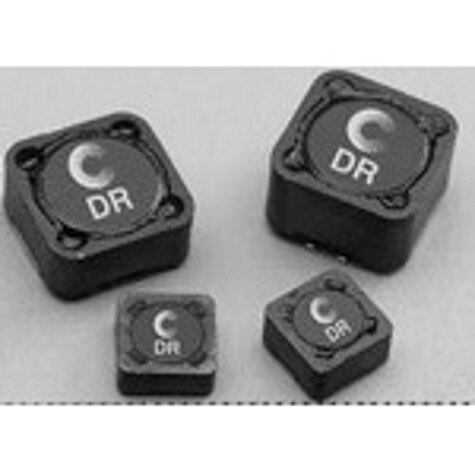

Eaton - Electronics Division DR125-331-R	Ferrite	Drum Core Wirewound	330 µH	100 kHz	125 °C	-40 C	Nonstandard	Shielded	Surface Mount		0.236 "	1.06 A	1.22 A	482 mOhm	20 %	12.5 mm	0.492 "	12.5 mm	0.492 "	6 mm
Eaton - Electronics Division DR73-820-R	Ferrite	Drum Core Wirewound	82 µH	100 kHz	125 °C	-40 C	Nonstandard	Shielded	Surface Mount			0.86 A	890 mA	384 mOhm	20 %	7.6 mm	0.299 "	7.6 mm	0.299 "	3.55 mm	0.14 "
Eaton - Electronics Division DR125-151-R	Ferrite	Drum Core Wirewound	150 µH	100 kHz	125 °C	-40 C	Nonstandard	Shielded	Surface Mount		0.236 "	1.48 A	1.81 A	248 mOhm	20 %	12.5 mm	0.492 "	12.5 mm	0.492 "	6 mm
