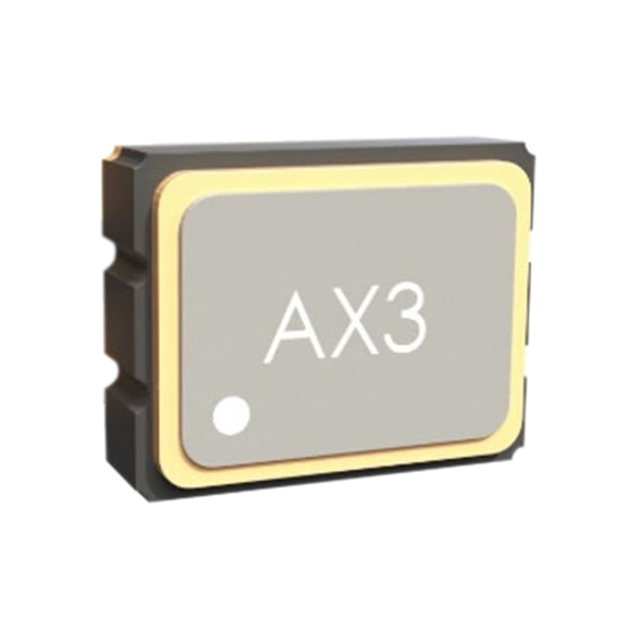

AX3 Series

Catalog

STANDARD CLOCK OSCILLATORS CRYSTAL OSCILLATOR 3225 6-SMD 155.52MHZ +/-25PPM -40°C ~ 85°C LVDS 1.8V

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Supply (Max) [Max]	Frequency	Mounting Type	Voltage - Supply	Base Resonator [custom]	Type	Function	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Output	Frequency Stability	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Supply (Disable) (Max) [Max]
Abracon LLC AX3DCF1-155.5200T3	2.5 mm	0.098 in	3.2 mm	0.126 "	85 °C	-40 C	6-SMD No Lead	27 mA	155.52 MHz	Surface Mount	1.8 V	Crystal	XO (Standard)	Enable/Disable	3.2	2.5	6-SMD	LVDS	25 ppm	0.043 "	1.1 mm
Abracon LLC AX3DCF1-200.0000	2.5 mm	0.098 in	3.2 mm	0.126 "	85 °C	-40 C	6-SMD No Lead	27 mA	200 MHz	Surface Mount	1.8 V	Crystal	XO (Standard)	Enable/Disable	3.2	2.5	6-SMD	LVDS	25 ppm	0.043 "	1.1 mm
Abracon LLC AX3HAF1-155.5200T	2.5 mm	0.098 in	3.2 mm	0.126 "	85 °C	-40 C	6-SMD No Lead	30 mA	155.52 MHz	Surface Mount	3.3 V	Crystal	XO (Standard)	Enable/Disable	3.2	2.5	6-SMD	HCSL	25 ppm	0.043 "	1.1 mm
Abracon LLC AX3DCF3-148.5000	2.5 mm	0.098 in	3.2 mm	0.126 "	85 °C	-40 C	6-SMD No Lead	27 mA	148.5 MHz	Surface Mount	1.8 V	Crystal	XO (Standard)	Enable/Disable	3.2	2.5	6-SMD	LVDS	25 ppm	0.043 "	1.1 mm
Abracon LLC AX3DAF1-150.0000T	2.5 mm	0.098 in	3.2 mm	0.126 "	85 °C	-40 C	6-SMD No Lead	27 mA	150 MHz	Surface Mount	3.3 V	Crystal	XO (Standard)	Enable/Disable	3.2	2.5	6-SMD	LVDS	25 ppm	0.043 "	1.1 mm	10 µA
