D38999/20WB Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT MALE 2POS GOLD CRIMP

Part	Insert Material	Contact Finish - Mating	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Connector Type	Orientation	Color	Voltage Rating	Voltage Rating	Qualification	Contact Material	Shell Finish	Shell Size - Insert	Termination	Primary Material	Shielding	Mounting Type	Ingress Protection	Grade	Mounting Feature	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size, MIL	Features	Current Rating (Amps)	Shell Size - Insert [Max]	Shell Size - Insert [Min]
TE Connectivity AMP Connectors D38999/20WB2PD	Thermoplastic	Gold	Threaded	2	-65 ░C	175 °C	Aviation Communication Systems Industrial Military	Receptacle Male Pins	D	Olive Drab	600 VAC	850 VDC	MIL-DTL-38999 Series III	Copper Alloy	Olive Drab Cadmium	11-2	Crimp	Metal	Shielded	Panel Mount	Environment Resistant	Military	Flange	Aluminum	50 µin	1.27 µm
TE Connectivity AMP Connectors D38999/20WB2SC	Thermoplastic	Gold	Threaded	2	-65 ░C	175 °C	Aviation Communication Systems Industrial Military	Receptacle Female Sockets	C	Olive Drab	600 VAC	850 VDC	MIL-DTL-38999 Series III	Copper Alloy	Olive Drab Cadmium	11-2	Crimp	Metal	Shielded	Panel Mount	Environment Resistant	Military	Flange	Aluminum	50 µin	1.27 µm
TE Connectivity AMP Connectors D38999/20WB2PB	Thermoplastic	Gold	Threaded	2	-65 ░C	175 °C	Aviation Communication Systems Industrial Military	Receptacle Male Pins	B	Olive Drab	600 VAC	850 VDC	MIL-DTL-38999 Series III	Copper Alloy	Olive Drab Cadmium	11-2	Crimp	Metal	Shielded	Panel Mount	Environment Resistant	Military	Flange	Aluminum	50 µin	1.27 µm
TE Connectivity AMP Connectors D38999/20WB2PE	Thermoplastic	Gold	Threaded	2	-65 ░C	175 °C	Aviation Communication Systems Industrial Military	Receptacle Male Pins	E	Olive Drab	600 VAC	850 VDC	MIL-DTL-38999 Series III	Copper Alloy	Olive Drab Cadmium	11-2	Crimp	Metal	Shielded	Panel Mount	Environment Resistant	Military	Flange	Aluminum	50 µin	1.27 µm
TE Connectivity AMP Connectors D38999/20WB35SN	Thermoplastic	Gold	Threaded	13	-65 ░C	175 °C	Aviation Communication Systems Industrial Military	Receptacle Female Sockets	N (Normal)	Olive Drab			MIL-DTL-38999 Series III	Copper Alloy	Olive Drab Cadmium		Crimp	Metal	Shielded	Panel Mount	Environment Resistant	Military	Flange	Aluminum	50 µin	1.27 µm	B	Self Locking	5 A	35	11

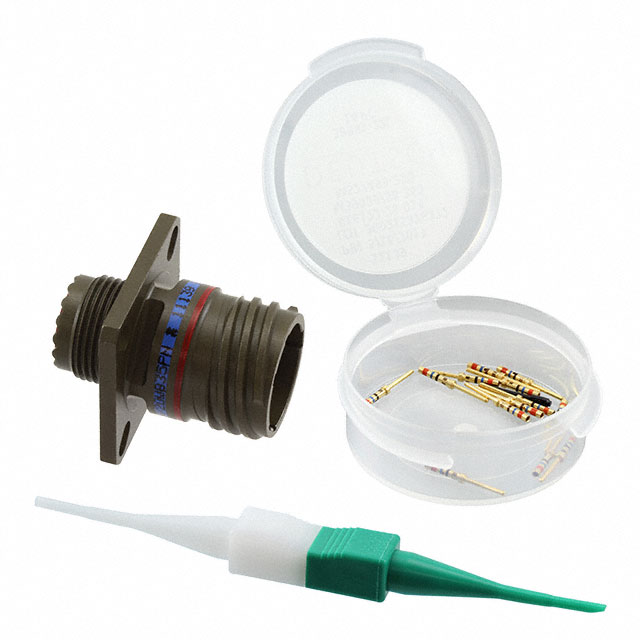

TE Connectivity AMP Connectors D38999/20WB35PN	Thermoplastic	Gold	Threaded	13	-65 ░C	175 °C	Aviation Communication Systems Industrial Military	Receptacle Male Pins	N (Normal)	Olive Drab			MIL-DTL-38999 Series III	Copper Alloy	Olive Drab Cadmium		Crimp	Metal	Shielded	Panel Mount	Environment Resistant	Military	Flange	Aluminum	50 µin	1.27 µm	B	Self Locking	5 A	35	11
