SFW20R Series

Catalog

CONN FPC TOP 20POS 1MM R/A

Part	Mating Cycles	Housing Color	Pitch	Pitch	Connector/Contact Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Cable End Type	Number of Positions	Flat Flex Type	Actuator Material	FFC, FCB Thickness	Mounting Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Material Flammability Rating	Voltage Rating	Termination	Actuator Color	Locking Feature	Features	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]
Amphenol ICC (FCI) SFW20R-2STGE5LF	20	Brown	1 mm	0.039 in	Contacts Top	0.106 in	2.7 mm	Gold	Straight or Tapered	20	FPC	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	Right Angle Surface Mount	Phosphor Bronze	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	100 V	Kinked Pin
Amphenol ICC (FCI) SFW20R-2STAE5LF		Brown	1 mm	0.039 in	Contacts Top	0.106 in	2.7 mm	Gold	Tapered	20	FPC	Polyphenylene Sulfide (PPS) Glass Filled	0.33 mm	Right Angle Surface Mount	Phosphor Bronze			Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0		Solder	Black	Slide Lock
Amphenol ICC (FCI) SFW20R-2STZE1LF	20	Brown	1 mm	0.039 in	Contacts Top	0.106 in	2.7 mm	Tin	Straight Tapered	20	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled		Right Angle Surface Mount	Phosphor Bronze	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	100 V	Solder	Black	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW20R-3STE1LF	20	Black	1 mm	0.039 in	Contacts Bottom	0.106 in	2.7 mm	Tin	Straight Tapered	20	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled		Right Angle Surface Mount	Phosphor Bronze	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	100 V	Solder	Black	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW20R-6STE1LF	10	Brown	1 mm	0.039 in	Contacts Top	0.106 in	2.7 mm	Tin	Straight	20	CIC	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	Right Angle Surface Mount	Phosphor Bronze	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	100 V	Solder

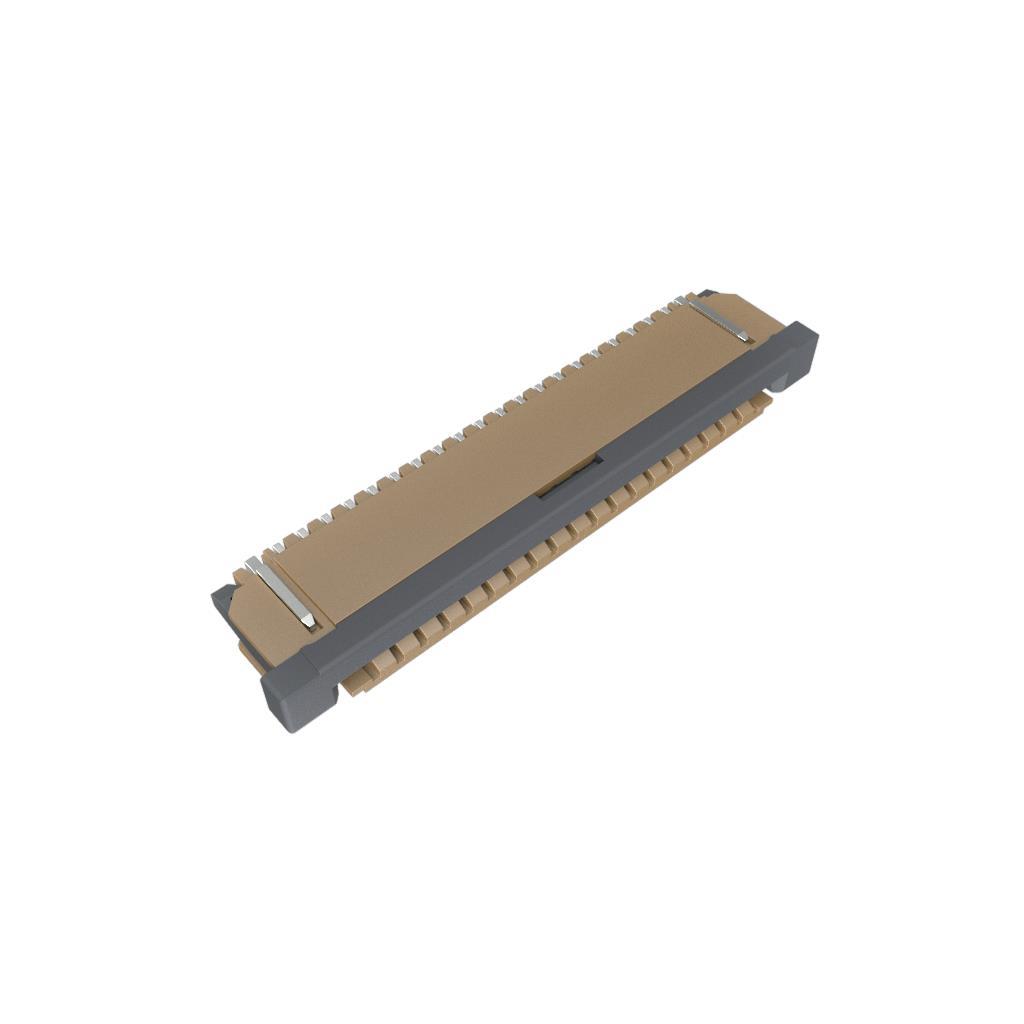

Amphenol ICC (FCI) SFW20R-1STAE1LF	20	Brown	1 mm	0.039 in	Contacts Bottom	0.106 in	2.7 mm	Gold	Tapered	20	FPC	Polyphenylene Sulfide (PPS) Glass Filled	0.33 mm	Right Angle Surface Mount	Phosphor Bronze	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	100 V	Solder	Brown	Slide Lock
Amphenol ICC (FCI) SFW20R-2STE1		Brown	1 mm	0.039 in	Contacts Top	0.106 in	2.7 mm	Tin Alloy	Straight Tapered	20	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled		Right Angle Surface Mount	Phosphor Bronze			Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0		Solder	Black	Slide Lock		0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW20R-3STAE9LF	20	Black	1 mm	0.039 in	Contacts Bottom	0.106 in	2.7 mm	Gold	Notched	20	FPC	Polyphenylene Sulfide (PPS) Glass Filled	0.33 mm	Right Angle Surface Mount	Phosphor Bronze	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	100 V	Solder	Brown	Slide Lock
Amphenol ICC (FCI) SFW20R-5STZE1LF	10	Brown	1 mm	0.039 in	Contacts Bottom	0.106 in	2.7 mm	Tin	Straight	20	CIC	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	Right Angle Surface Mount	Phosphor Bronze	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	100 V	Solder
Amphenol ICC (FCI) SFW20R-2STAE1LF	20	Brown	1 mm	0.039 in	Contacts Top	0.106 in	2.7 mm	Gold	Tapered	20	FPC	Polyphenylene Sulfide (PPS) Glass Filled	0.33 mm	Right Angle Surface Mount	Phosphor Bronze	-55 C	105 ░C	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	100 V	Solder	Black	Slide Lock
